X67DM1321.L08-C2 B&R

Category: Produits

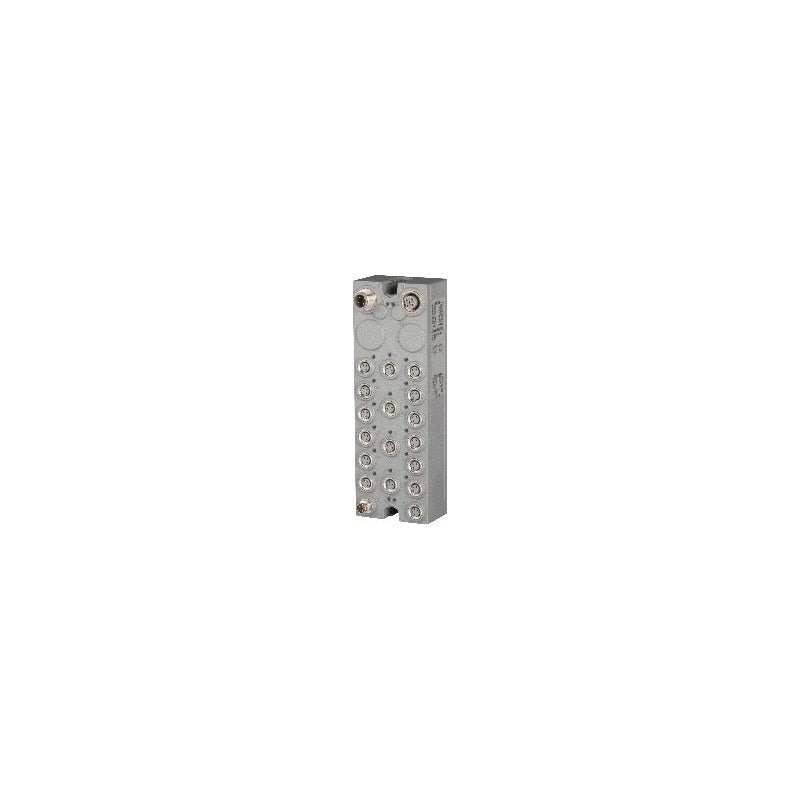

16 digital channels, configurable as inputs or outputs Replacement of passive distributors 2 additional channels with counter functions All outputs with single-channel diagnostics Extensive additional status information This module is equipped with 16 digital channels that can be configured either as inputs or outputs.

The inputs are designed for a sink circuit, and the outputs are designed for a source circuit.

Technical Specifications

Short description

• I/O module = 16 digital channels, configurable as inputs or outputs using software, inputs with additional functions

General information

• Diagnostics
• Outputs = Yes, using LED status indicator and software
• I/O power supply = Yes, using LED status indicator and software
• Connection type
• X2X Link = M12, B-coded
• Inputs/Outputs = 16x M8, 3-pin
• I/O power supply = M8, 4-pin
• Power consumption
• Internal I/O = 3 W
• X2X Link power supply = 0.75 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• KC = Yes
• Insulation voltage between channel and bus = 500 V eff
• Nominal voltage = 24 VDC
• B&R ID code = 0x1A1C
• Sensor/Actuator power supply = 0.5 A summation current
• Status indicators = I/O function per channel, supply voltage, bus function

I/O power supply

• Power consumption
• Sensor/Actuator power supply = Max. 12 W
• Nominal voltage = 24 VDC
• Voltage range = 18 to 30 VDC
• Integrated protective function = Reverse polarity protection

Sensor/Actuator power supply

• Voltage = I/O power supply minus voltage drop for short-circuit protection
• Voltage drop for short-circuit protection at 0.5 A = Max. 2 VDC
• Summation current = Max. 0.5 A
• Short-circuit proof = Yes

Digital inputs

• Input filter
• Hardware = ≤10 μs (channels 1 to 4) / ≤70 µs (channels 5 to 16)
• Software = Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals
• Switching threshold
• Low = <5 VDC
• High = >15 VDC
• Input characteristics per EN 61131-2 = Type 1
• Input voltage = 18 to 30 VDC
• Input current at 24 VDC = Typ. 4.4 mA
• Input circuit = Sink
• Input resistance = Typ. 5 kΩ
• Additional functions = 50 kHz event counting, gate measurement

Event counters

• Quantity = 2
• Signal form = Square wave pulse
• Evaluation = Each negative edge, cyclic counter
• Input frequency = Max. 50 kHz
• Counter 1 = Input 1
• Counter 2 = Input 3
• Counter frequency = Max. 50 kHz
• Counter size = 16-bit

Gate time measurement

• Counter frequency
• Internal = 48 MHz, 3 MHz, 187.5 kHz
• Quantity = 1
• Signal form = Square wave pulse
• Evaluation = Positive edge - Negative edge
• Counter size = 16-bit
• Length of pause between pulses = ≥100 µs
• Pulse length = ≥20 µs
• Supported inputs = Input 2 or input 4

Digital outputs

• Switching delay
• 0 → 1 = <400 µs
• 1 → 0 = <400 µs
• Switching frequency
• Resistive load = Max. 100 Hz
• Variant = Current-sourcing FET
• Switching voltage = I/O power supply minus residual voltage
• Nominal output current = 0.5 A
• Total nominal current = 8 A
• Output circuit = Source
• Output protection = Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
• Diagnostic status = Output monitoring with 10 ms delay
• Leakage current when the output is switched off = 5 µA
• Switching on after overload shutdown = Approx. 10 ms (depends on the module temperature)
• Residual voltage = <0.3 V at 0.5 A nominal current
• Peak short-circuit current = <12 A
• Braking voltage when switching off inductive loads = 50 VDC

Electrical properties

• Electrical isolation = Channel isolated from bus Channel not isolated from channel

Operating conditions

• Mounting orientation
• Any = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP67
