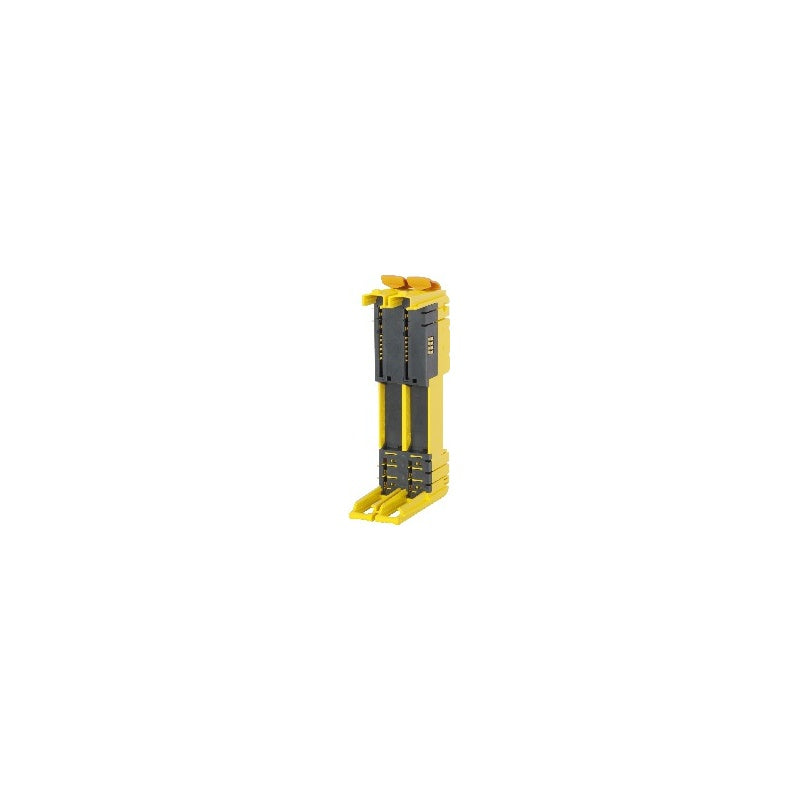

X20BM33 B&R

Category: Safety technology > X20 System > Bus modules

Bus module for SafeIO modules The internal I/O power supply is continuous.

The bus module is the base for all SafeIO modules. The internal I/O power supply is continuous.

Technical Specifications

Short description

• Bus module = Bus module, for X20 SafeIO modules, internal I/O power supply connected through

General information

• Power consumption
• Bus = 0.13 W
• Internal I/O = -
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment cULus E537419 Engine generator controller
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• Additional power dissipation caused by actuators (resistive) [W] = -

I/O power supply

• Nominal voltage = 24 VDC
• Permissible contact load = 10 A

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level = 0 to 2000 m, no limitation
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Pitch = 25 +0.2 mm
