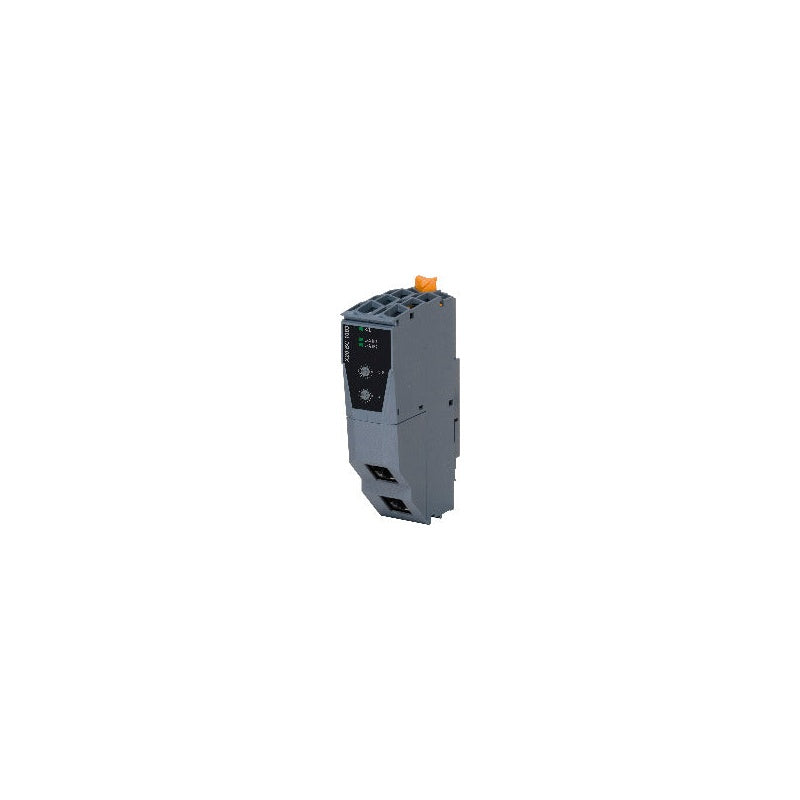

X20BC1083 B&R

Category: I/O systems > X20 System > Expandable bus controllers

POWERLINK I/O configuration and firmware update via the fieldbus Integrated hub for efficient cabling Up to 2 slots for interface modules The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK.

It is also possible to operate the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.

POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics.

The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed:: www.ethernet-powerlink.org .

The bus modules expanded to the left allow connection of up to 2 interface modules in addition to the bus controller.

Technical Specifications

Short description

• Bus controller = POWERLINK (V1/V2) controlled node with up to 2 slots for interface modules

General information

• Diagnostics
• Module status = Yes, using LED status indicator and software
• Bus function = Yes, using LED status indicator and software
• Support
• Dynamic node allocation (DNA) = Yes
• Power consumption
• Bus = 2 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0x2268
• Status indicators = Module status, bus function
• Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

• Transfer
• Physical layer = 100BASE-TX
• Half-duplex = Yes
• Full-duplex = No
• Autonegotiation = Yes
• Auto-MDI/MDIX = Yes
• Min. cycle time
• Fieldbus = 200 μs
• X2X Link = 200 μs
• Cyclic data
• Input data = Max. 1488 bytes
• Output data = Max. 1488 bytes
• Fieldbus = POWERLINK (V1/V2) controlled node
• Type = Type 2
• Variant = 2x shielded RJ45 (hub)
• Line length = Max. 100 m between 2 stations (segment length)
• Transfer rate = 100 Mbit/s
• Hub propagation delay = 0.96 to 1 µs
• Synchronization between bus systems possible = Yes

Electrical properties

• Electrical isolation = POWERLINK isolated from bus and I/O

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Pitch
• X20BB81 = 62.5 +0.2 mm
• X20BB82 = 87.5 +0.2 mm
• Note = Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9400 or X20PS9402 separately. Order 1x bus base X20BB81 or X20BB82 separately.
