Allen-Bradley

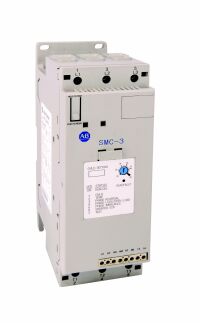

Allen-Bradley 150-C85NBD - SMC-3 85A Smart Motor Controller

SKU: 150-C85NBD
(0)
$849.99
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 150-C85NBD - SMC-3 85A Smart Motor Controller

SMC-3, 3-Wire, Open Type, 85A, 480V, 3-Phase, 50/60Hz Max, Control Voltage 100...240V AC

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: SMC Motor Controllers | Lifecycle: Active

Technical Specifications

Selectable current limit 150%, 250%, 350%, and 450% of full load current
Humidity 5...95% noncondensing
Height 206 mm (8.11 in)
Rated control supply voltage at AC 50 Hz 100 V
Operating temperature Open: -5 to 50 �C (23 to 122 �F)
Rated operating voltage Ue 200 V
Rated operational voltage 250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts
Rated control supply voltage at AC 60 Hz 100 V
Mounting hole size 5.3 mm
Tightening torque 11.3...12.4 Nm (100...110 in-lb) for load power terminals
Delta connected motor power, max 25...100Hp @ 460V AC, 60 Hz, 3-phase
Width 72 mm (2.83 in)
Line connected motor power, max 45 kW @ 380/400/415V AC @ 50Hz, 3-phase
Utilization category TB-23, -24 (normal/up-to-speed), TB-33, -34 (normal/up-to-speed): C300/R150 per UL/CSA/NEMA for Side mount auxiliary contacts
Weight 2.25 kg
Vibration opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement
Internal bypass true
Rated surrounding temperature range without derating -5 �C
Steady state heat dissipation 82 W
EMC immunity levels Surge transient: per EN/IEC 60947-4-2 per IEC
