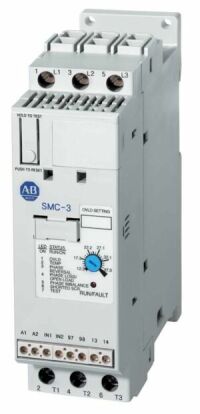

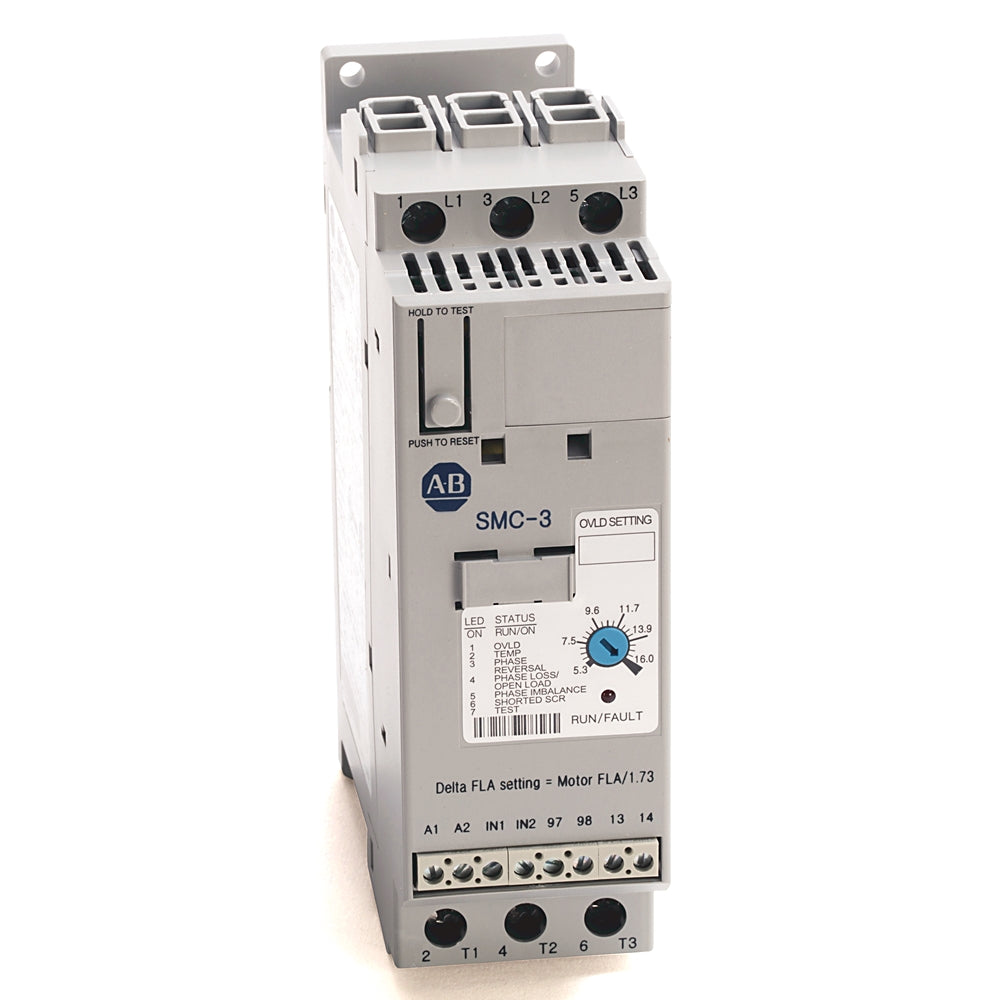

SMC-3, 3-Wire, Open Type, 25A, 480V, 3-Phase, 50/60Hz Max, Control Voltage 100...240V AC
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: SMC Motor Controllers | Lifecycle: Active
| Altitude | 2000 m |
| Break | TB-97, -98 (OVLD/Fault): 72VA for auxiliary contacts |
| Cable size | 2.5...25 mm² (14...4 AWG) for line power terminals |
| Controller type | SMC-3 |
| Conventional thermal current (Ith) | TB-97, -98 (OVLD/Fault): 1 A for auxiliary contacts |
| Degree of protection (IP) | IP2X |
| Delta connected motor current | 14.3...43A @ 380/400/415/460V AC, 3-phase |
| Delta connected motor power, max | 7.5...20Hp @ 460V AC, 60 Hz, 3-phase |
| Depth | 110 mm (4.33 in) |
| Dielectric withstand | 2500V AC per IEC for power circuit |
| DV/DT protection | 1000V/µs for power circuit |
| EMC emission levels | Radiated emission: Class A per IEC |
| EMC immunity levels | Surge transient: per EN/IEC 60947-4-2 per IEC |
| Enclosure | Open type |
| Function | Single direction |
| Height | 139.7 mm (5.5 in) |
| High capacity available fault current, max | 70kA @ 600V, maximum current 90 A time delay Class J or Class L fuse for inside delta connected motors |
| Humidity | 5...95% noncondensing |
| Input OFF-state current | \u003c10 mA, \u003c12 mA @ input OFF-state voltage (IN1, IN2) for control circuit |
| Input OFF-state voltage (IN1, IN2), max | 40V AC @ 17V DC/12V AC for control circuit |
