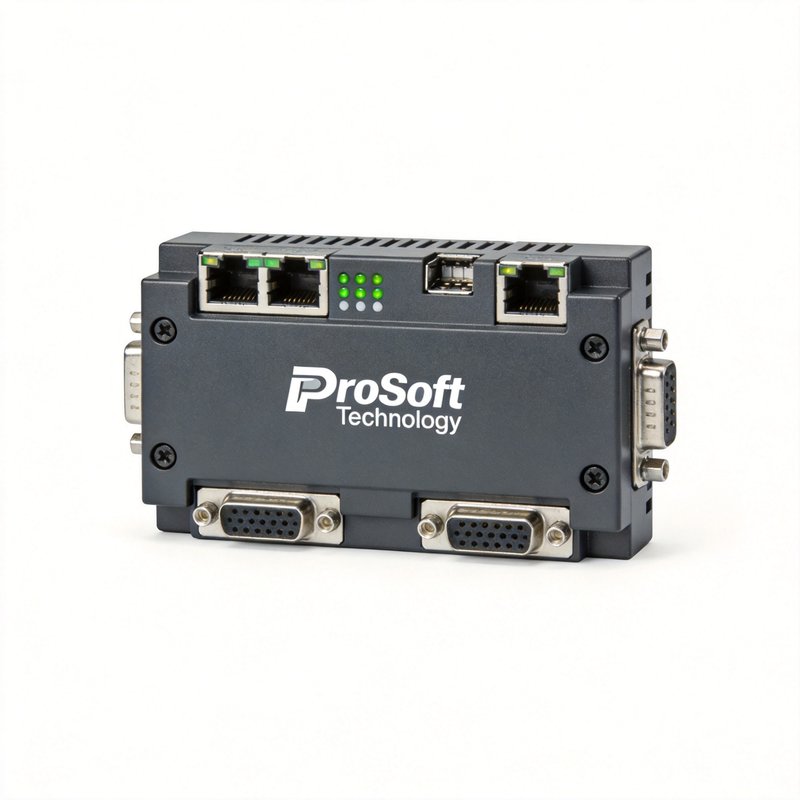

PLX31-MBTCP-MBS4 Prosoft

Our Modbus TCP/IP communication gateways offer bidirectional data transfers between devices on dissimilar networks. Our Modbus TCP/IP Driver uses Multiple Clients and Servers for faster data throughput. Protocol conversion gateways are the ideal solution for distributed networks when adding a remote rack becomes too costly. The PLX30s are stand-alone DIN-rail mounted gateways that provide one Ethernet port for communication, remote configuration and diagnostics, and up to four (4) serial communication ports. The PLX30 gateways also come with an SD Card slot (SD card optional) for storing configuration files. In the event of a failure the SD card can be transferred to another gateway reducing downtime. These gateways contain a 4000 word database, includes a wide input power range (10 Vdc – 36 Vdc), and an extended temperature range (-25°C to 70°C). The PLX30 gateways include all the necessary cables required for communication.
