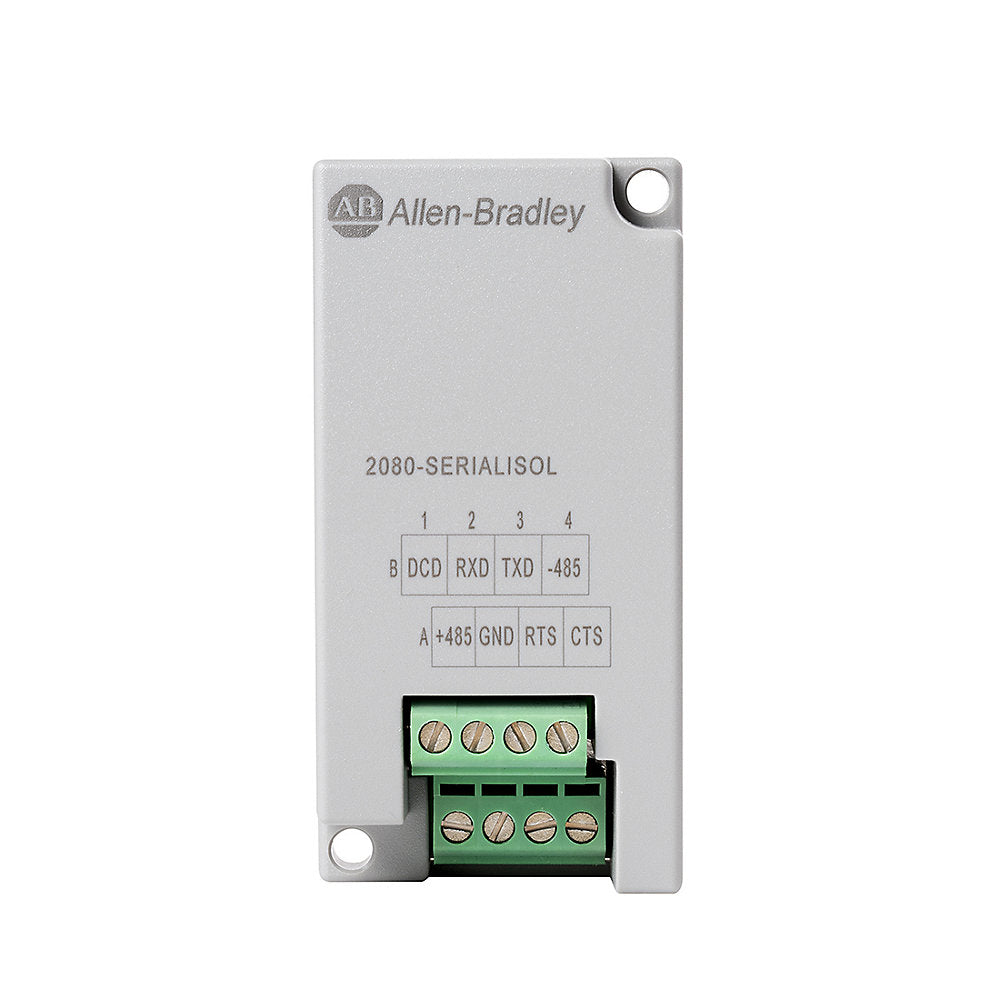

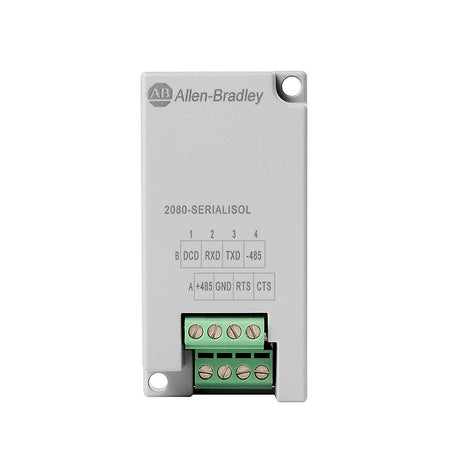

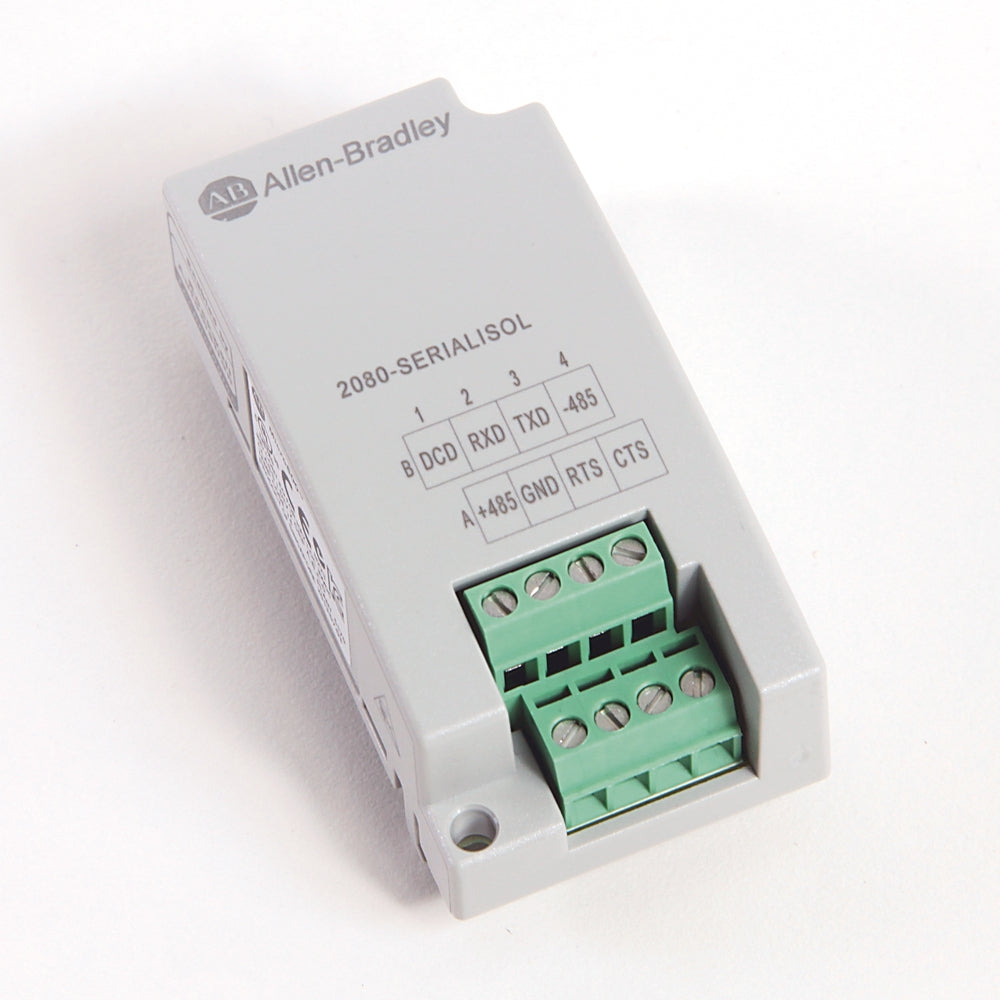

2080 Micro800 System, RS232/485 isolated serial port
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Micro800 | Lifecycle: Active
| Temperature Rating | -2065 C (-4149 F) |
| Cable length using RS485, Max | 1000 |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Data transmission type | Serial |
| EFT/B immunity | IEC 61000-4-4: 2kV @ 5kHz on communication ports |
| Emissions | CISPR 11 (IEC 61000-6-4): Class A |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| IO link master | false |
| Isolated voltage | 500V AC |
| Mounting torque | 0.2 nm |
| Nonoperating temperature | -40...85 C (-40...185 F), IEC60068-2-1 (Test Ad, operating cold), IEC60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
| Operating temperature | -20...65 C (-4...149 F), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
| Radiated RF immunity | IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz, |
| Redundancy | false |
| Shock | Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock) |
