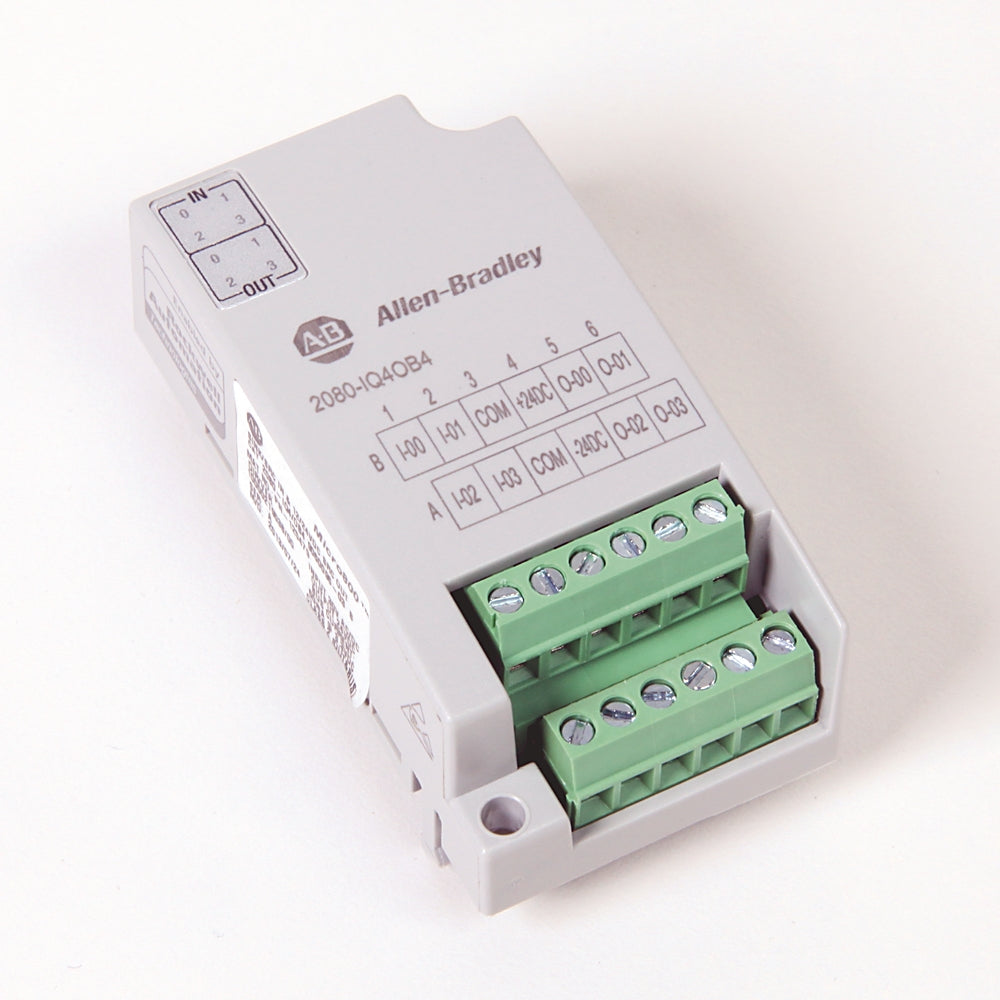

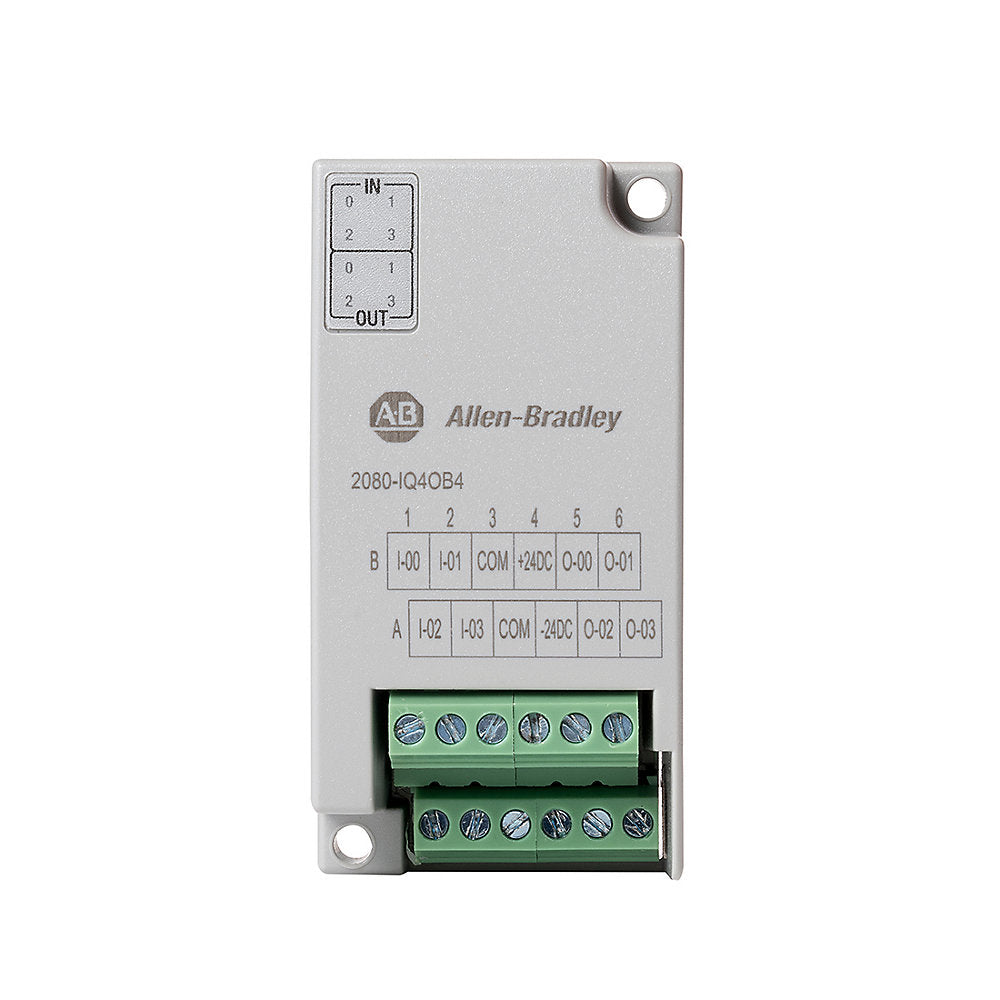

2080 Micro800 System, 8-pt Combo, 4-pt Digital Input, 12/24V DC,Sink/Source, IEC3, and 4-pt Digital Output, 12/24V DC, Source
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Micro800 | Lifecycle: Active
| Consist Of | Screws |
| Output | 4 Point, 12/24V DC, Source |
| Temperature Rating | -20…65 °C (-4…149 °F) |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| IEC input compatibility | Type 3 |
| Input filter time | ON to OFF: 8...10 ms AC/DC |
| Input impedance | 0...3V, \u003e4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, \u003e4 KΩ \u003c10 KΩ |
| Isolation voltage | 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane |
| Mounting torque | 0.2 nm |
| Nonoperating temperature | 40 to 85 °C |
| North American temperature code | T4 |
| Number of digital inputs | 4 |
| Number of digital outputs | 4 |
| Number of I/O | 4 channel inputs/source outputs combination |
| Off-state current, max | 1.5 mA |
| Off-state leakage current, max | 10 µA |
| Off-state voltage, max | 5V DC @ 3.5V AC (rms) |
| ON-state current, max | 5 mA |
| On-state current, min | 2.0mA @ 9V DC, 2.0mA @ 9V AC (rms) |
