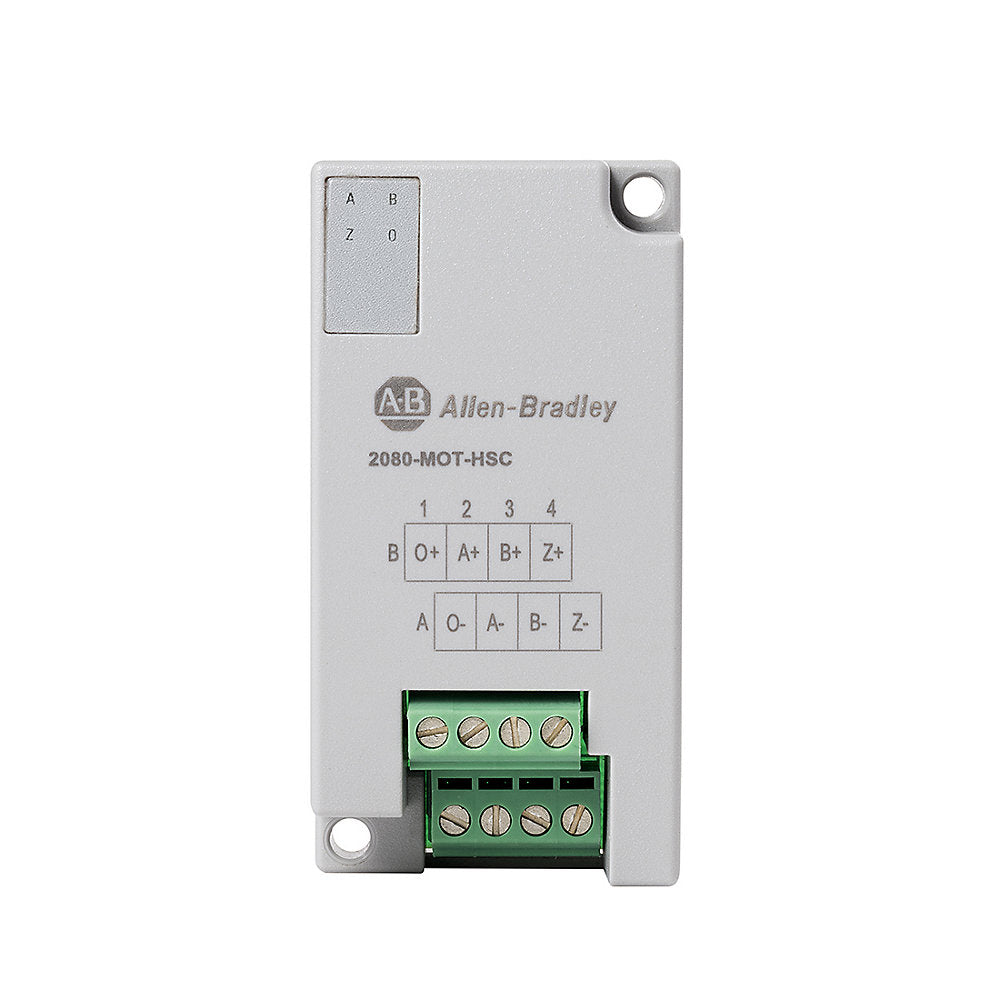

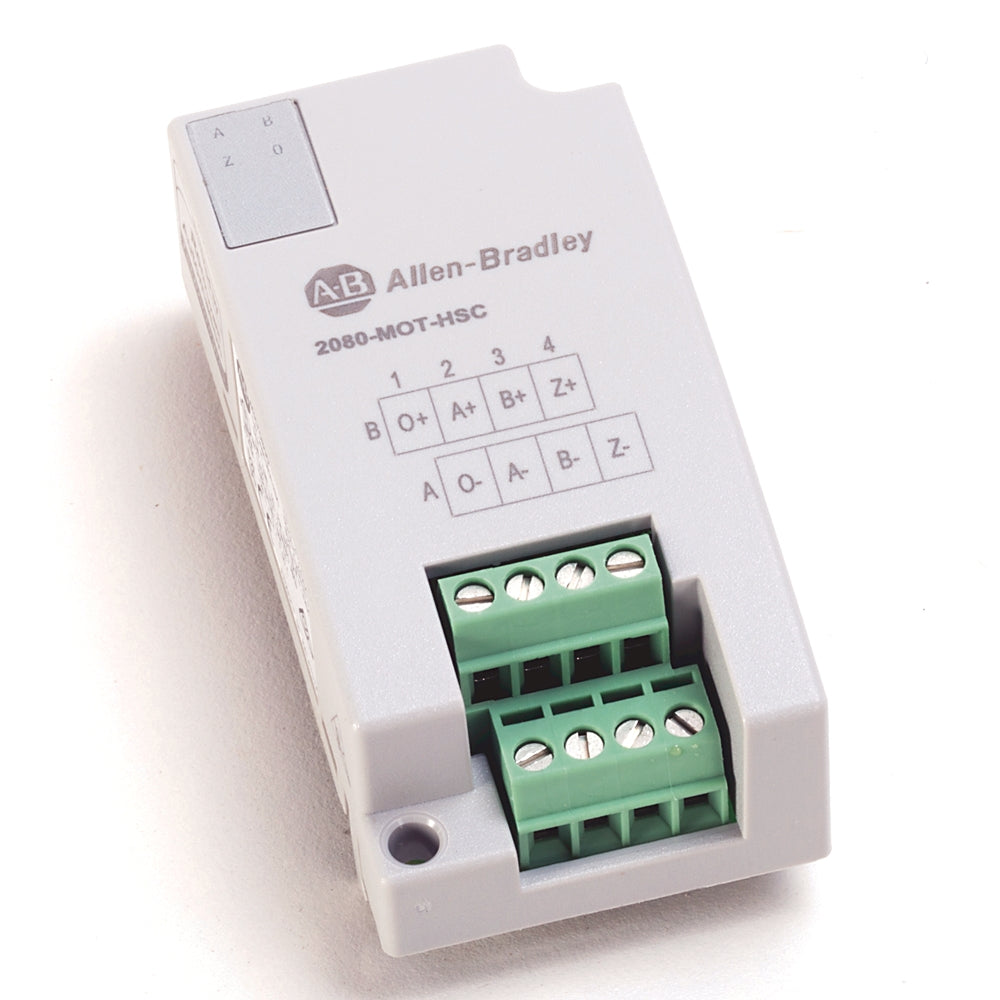

2080 Micro800 System, High Speed Counter, 4 inputs with Line Driver, 250KHz
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Micro800 | Lifecycle: Active
| I/O Isolation | None |
| I/O Status Indication | LED |
| Bus current draw | 60mA @ 3.3V DC |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Depth | 20 mm |
| Digital inputs configurable | true |
| Digital outputs configurable | true |
| EFT/B immunity | IEC 61000-4-4: 2kV @ 5kHz on signal ports |
| Emissions | CISPR 11 (IEC 61000-6-4): Class A |
| Enclosure type rating | Meets IP20 |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| Height | 62 mm |
| Input current range | 2 mA |
| Input frequency, max | 250 kHz (50% duty) |
| Input impedance, nom | 3580 |
