Allen-Bradley

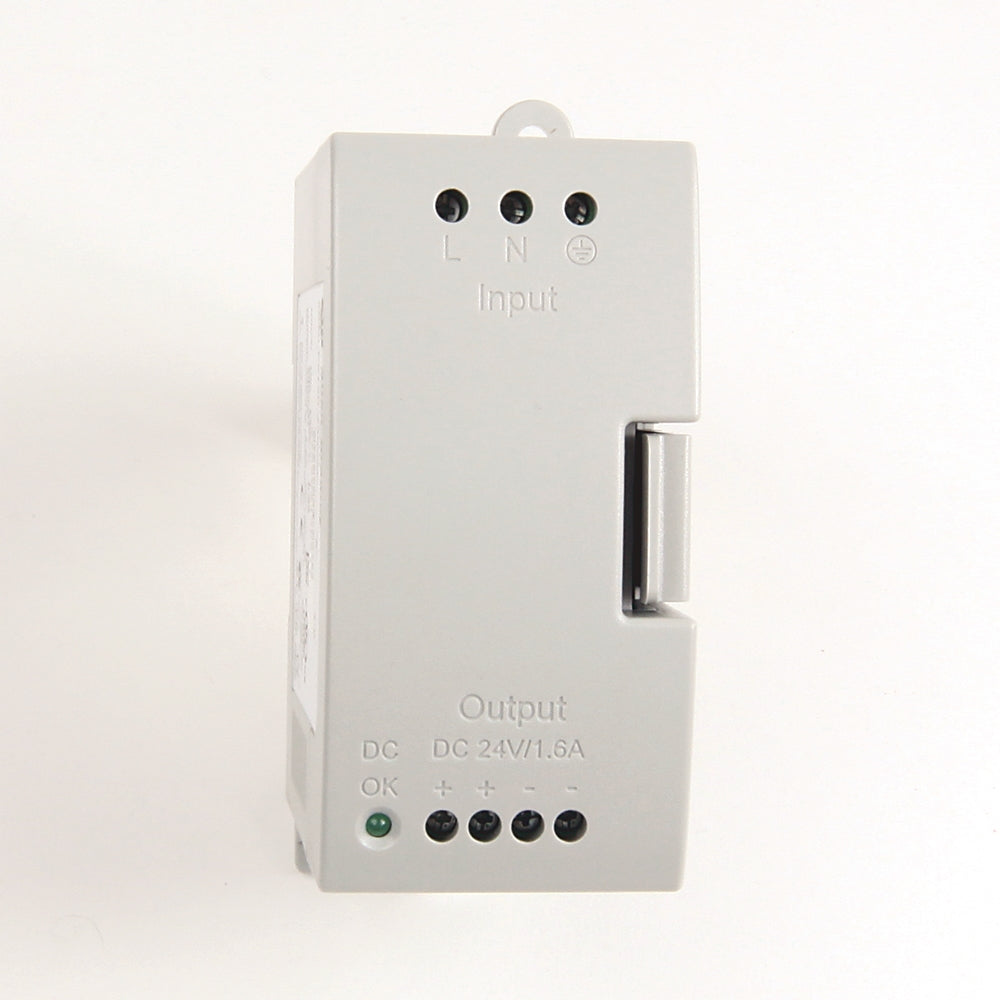

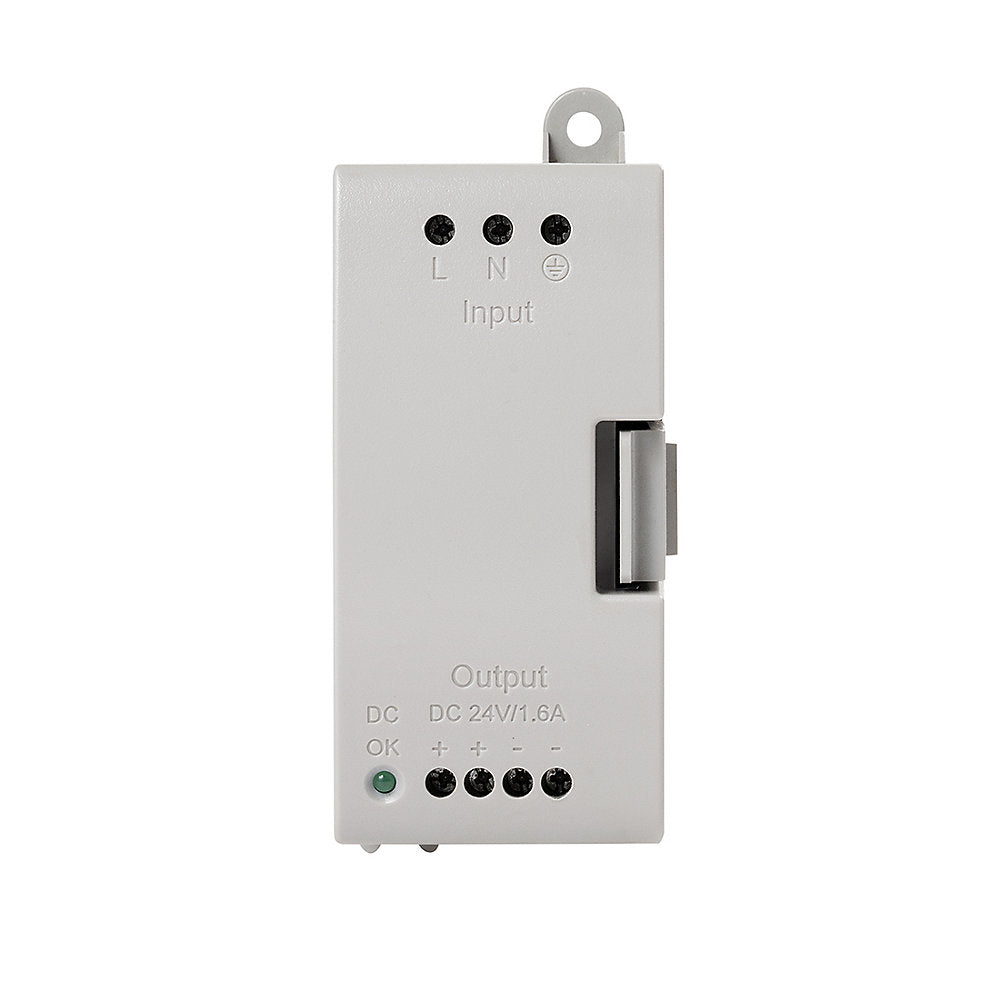

Allen-Bradley 2080-PS120-240VAC - Micro800 24V DC Power Supply

SKU: 2080-PS120-240VAC
(0)
$47.01
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 2080-PS120-240VAC - Micro800 24V DC Power Supply

2080 Micro800 System, 120/240VAC to 24VDC Power Supply for Controller and Exp I/O

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Micro800 | Lifecycle: Active

Technical Specifications

Height 90 mm
Vibration IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
Voltage variation IEC 61000-4-11: 30% dips for 1 period at 0� and 180� on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, �10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports
Supply frequency 47...63 Hz
Wiring category 2 - on power ports
Terminal screw torque 0.5...0.6 Nm (4.4...5.3 in-lb) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver)
Width 45 mm
Inrush current, max 24A @ 132V for 10 ms, 40A @ 263V for 10 ms
EFT/B immunity IEC 61000-4-4: �2kV @ 5kHz on power ports
Power consumption (Output power) 38.4 W @ 100V AC, 38.4 W @ 240V AC
Power dissipation (Input power) 45.1 W @ 100V AC, 44.0 W @ 240V AC
Insulation stripping length 7 mm
Supply power 24V DC @ 1.6A
Relative humidity IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
Surge transient immunity IEC 61000-4-5: �1 kV line-line(DM) and �2 kV line-earth(CM) on power ports
