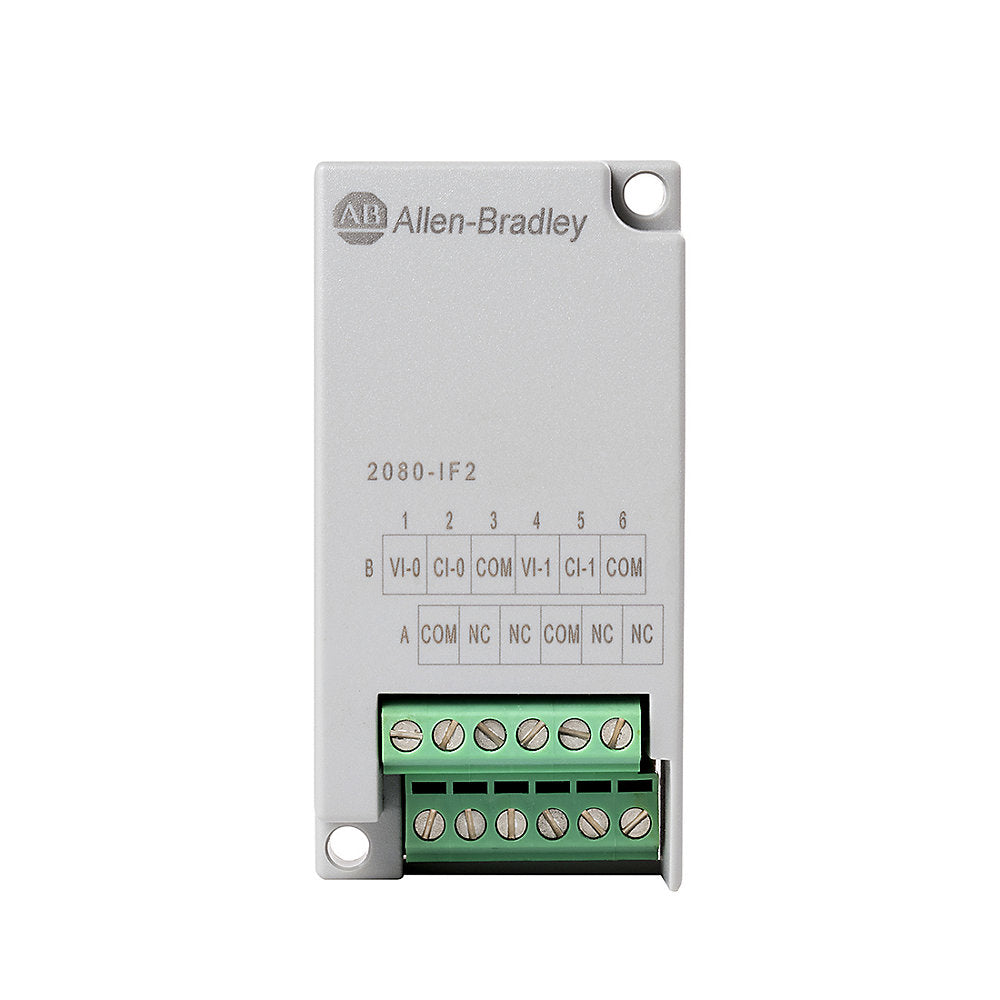

2080 Micro800 System, 2-ch V/I Analog Input Unipolar 0-10V/0-20mA (non-isolated)
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Micro800 | Lifecycle: Active
| Consist Of | Screws |
| I/O Isolation | None |
| Analogue inputs configurable | true |
| Analogue outputs configurable | false |
| Channel to channel isolation | Non-isolation |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Current range | 0 mA |
| Data range | 0 to 65535 |
| EFT/B immunity | IEC 61000-4-4: 2kV @ 5kHz on shielded ports |
| Emissions | CISPR 11 (IEC 61000-6-4): Class A |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| Field input calibration | Not required |
| Input, current | true |
| Input group to bus isolation | No isolation |
| Input impedance | \u003e100 k for voltage mode, 250 for current mode |
