Allen-Bradley

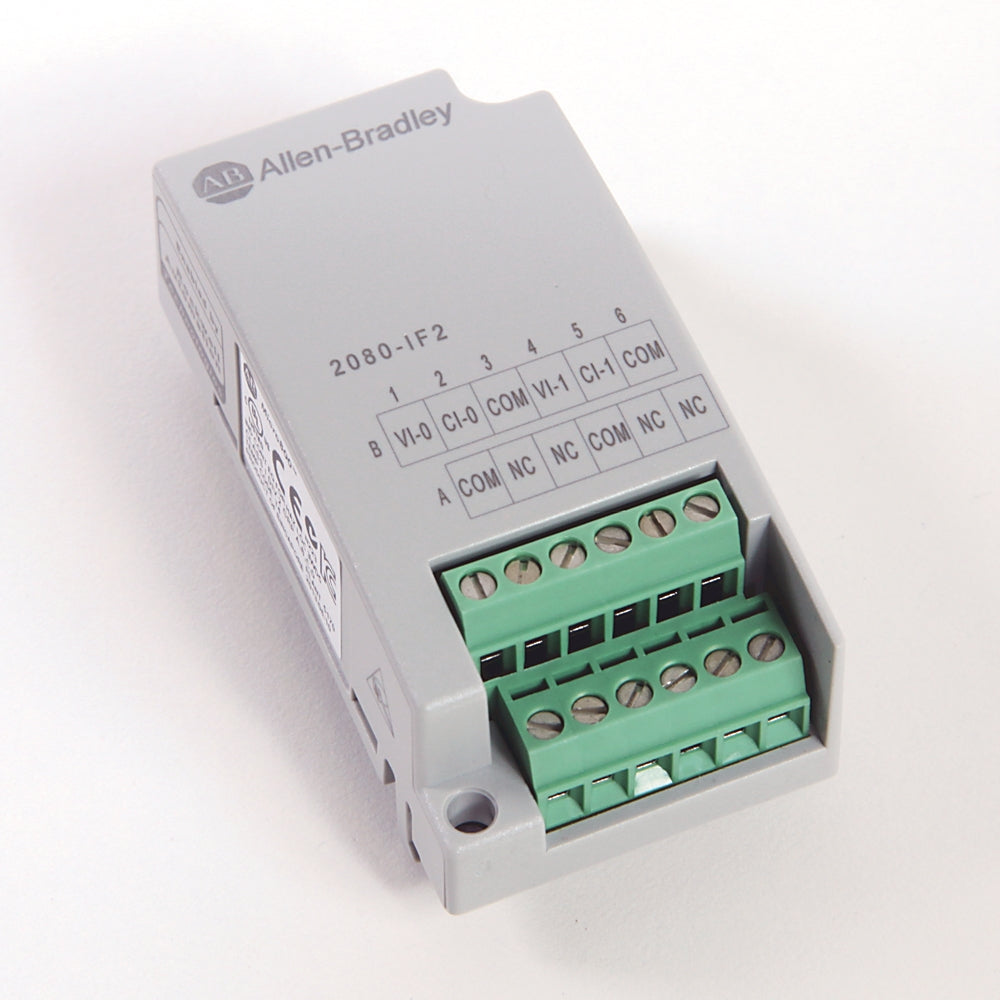

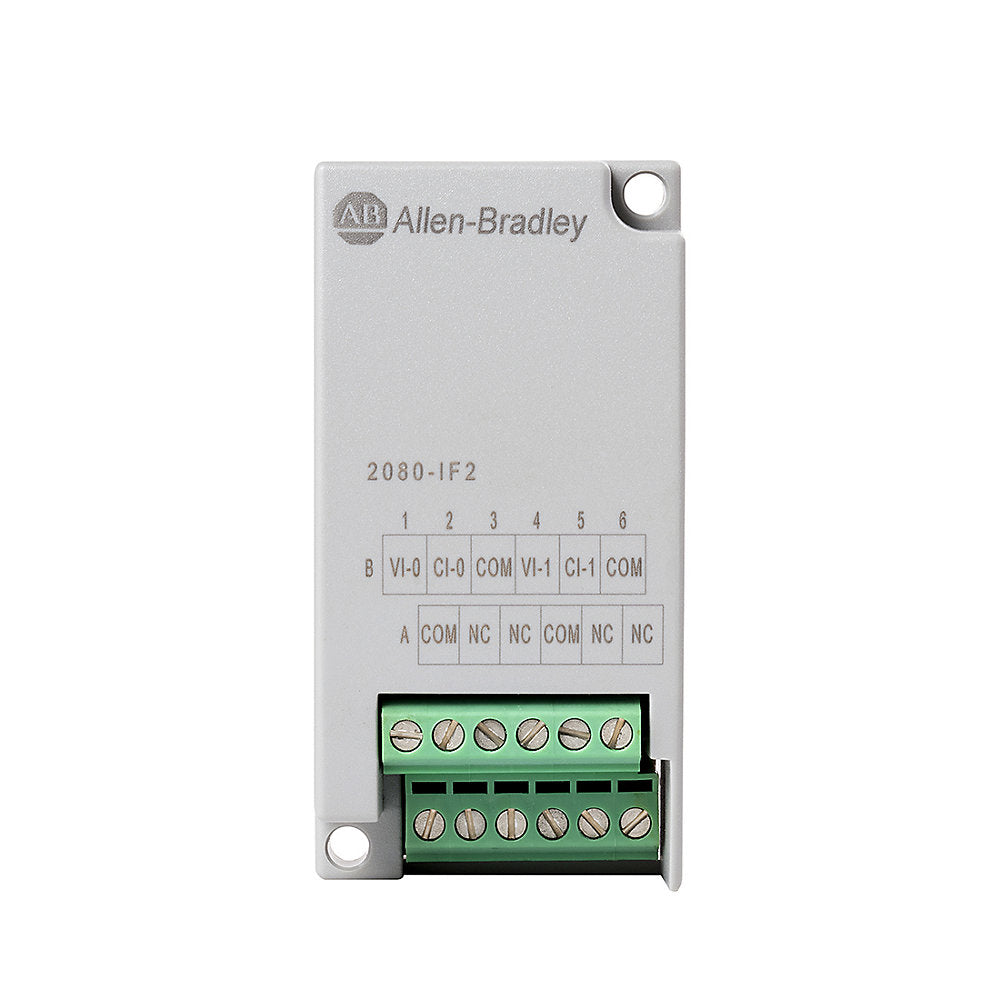

Allen-Bradley 2080-IF2 - Micro800 2 Point Analog Input Plug-In

SKU: 2080-IF2
(0)
$65.40
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 2080-IF2 - Micro800 2 Point Analog Input Plug-In

2080 Micro800 System, 2-ch V/I Analog Input Unipolar 0-10V/0-20mA (non-isolated)

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Micro800 | Lifecycle: Active

Technical Specifications

Product Series A
Power consumption \u003c60mA @ 3.3V
Input group to bus isolation No isolation
Output, current false
Environmental Compliance \u003ca href\u003d\u0027https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html\u0027\u003eSee Details\u003c/a\u003e | \u003ca href\u003d\u0027#modal-submit-inquiry\u0027\u003eSubmit Inquiry\u003c/a\u003e
Non-linearity �0.1% @ in % full scale
Recommended maximum shielded cable length 10 m
Module error Voltage: �1.5% @ over full temperature range, -20...65�C (-4...149�F), Current: �2.0% @ over full temperature range, -20...65�C (-4...149�F)
Output signal configurable false
Current range 0 mA
Input, resistor false
Update time 180 ms per enabled channel
EFT/B immunity IEC 61000-4-4: �2kV @ 5kHz on shielded ports
Operating altitude 2000 m
Impact Assessment Method EF 3.0 (Environmental Footprint) ESPR aligned
Output, voltage false
Database Used Ecoinvent 3.10
Analogue outputs configurable false
Terminal screw torque 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
Mounting torque 0.2 nm
