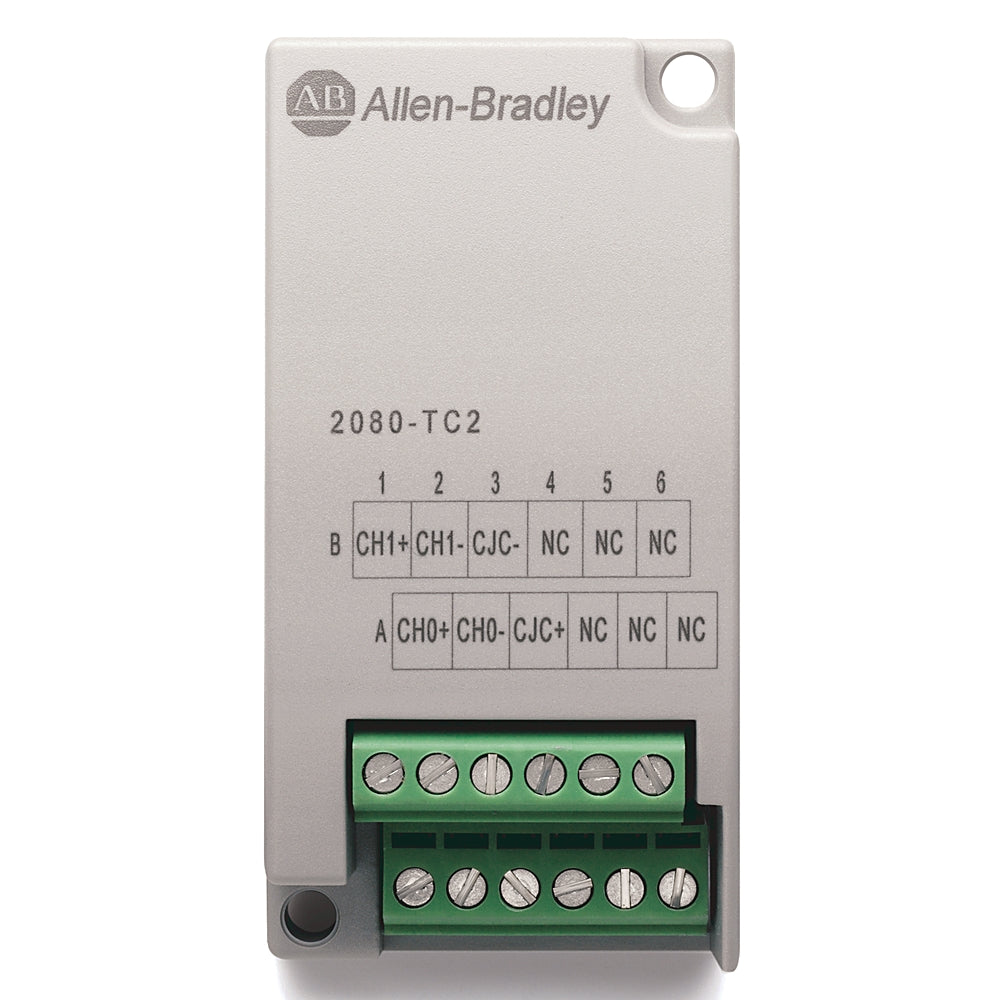

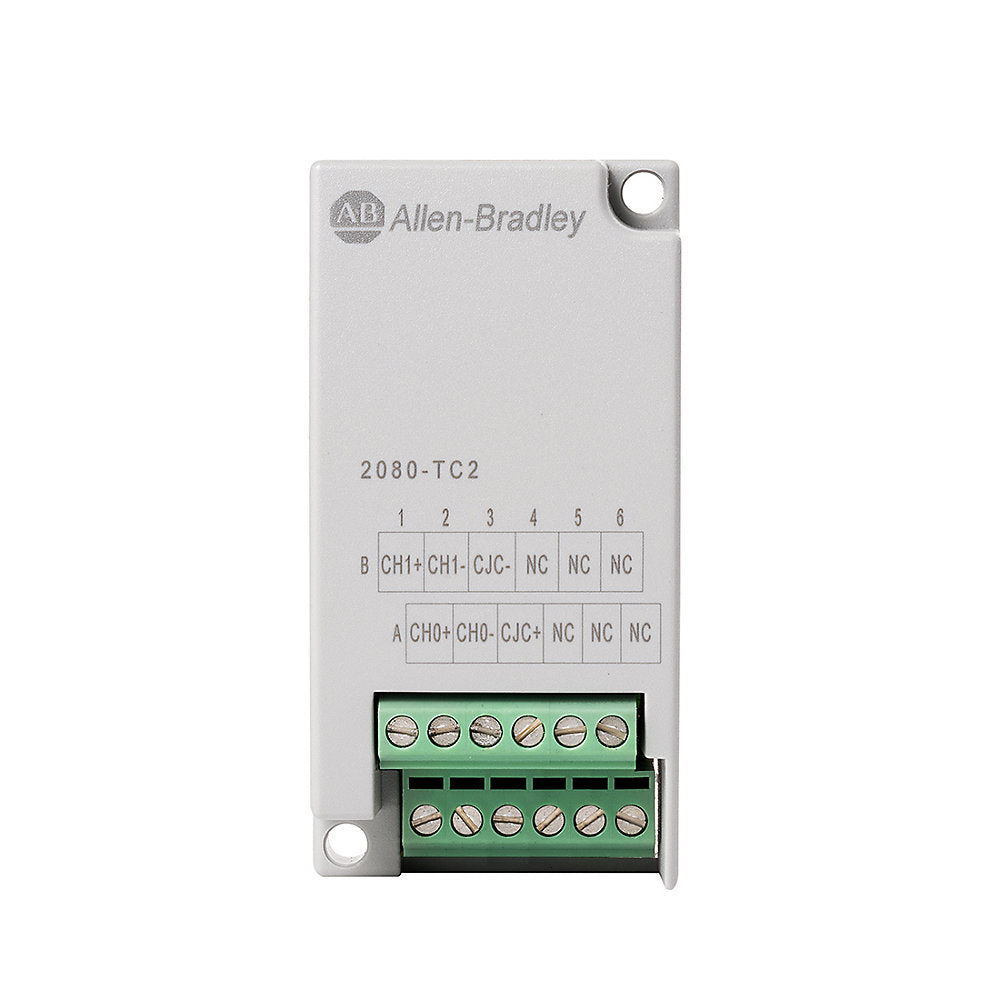

Micro800 2 Channel TC Plug-In 2080-TC2

Micro800 2 Channel TC Plug-In 2080-TC2

$95.00 USD
$95.00 USD
Sale Sold out
Shipping calculated at checkout.

Catalog #: 2080-TC2

Number of analogue inputs 2
Resolution of the analogue inputs 14 bit
Resolution of the analogue outputs 14 bit
Input, current False
Input, voltage False
Input, resistor False
Input, resistance thermometer False
Input, thermocouple True
Input signal, configurable False
Output, current False
Output, voltage False
Output signal configurable False
Analogue inputs configurable False
Analogue outputs configurable False
Type of electric connection Screw connection
Normal mode rejection ratio 70 dB @ 50/60 Hz
Accuracy ±1.0 °C @ 25 °C (77 °F)
Wire size Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum
Open circuit detection time 8 to 1515
Suitable for safety functions False
SIL according to IEC 61508 None
Common mode rejection ratio 100 dB @ 50/60Hz
Thermocouple types supported J, K, N, T, E, R, S, B
CJC error ±1.2 °C @ 25 °C (77 °F)
