Schneider Electric

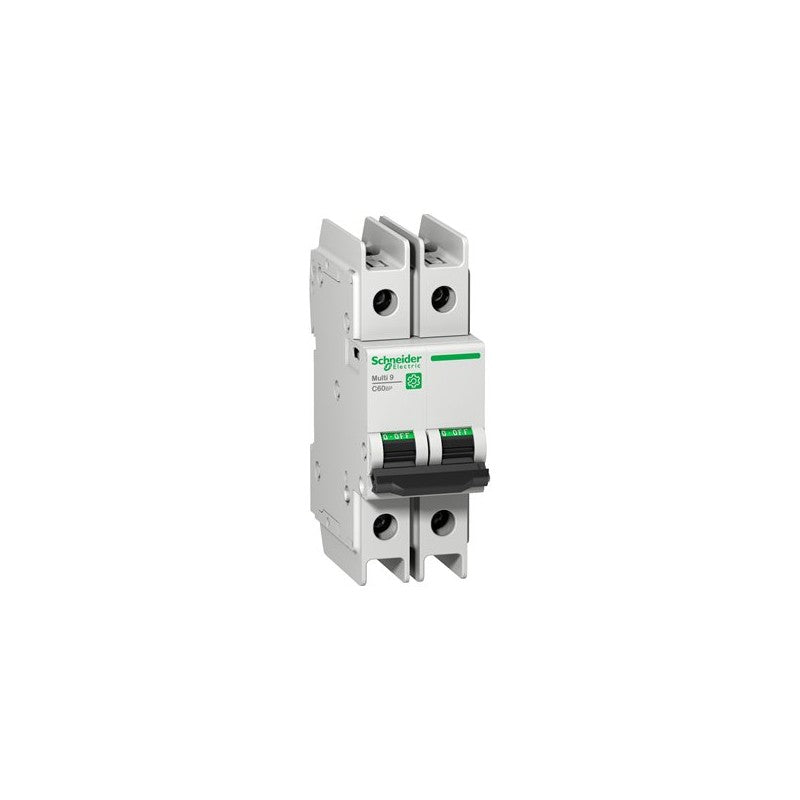

Schneider Multi 9 C60BP MCB 2P 20A C Curve 10kA UL 489 | M9F42220

SKU: M9F42220
(0)
$59.99
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

2-Pole Miniature Circuit Breaker for Commercial Applications

The Schneider Electric Multi 9 C60BP M9F42220 is a 2-pole miniature circuit breaker rated at 20A with C-curve trip characteristics and 10kA breaking capacity at 480Y/277V. Engineered for global compliance with IEC/EN 60947-2, UL 489, CSA C22.2 No 5, and GB/T 14048.2 standards.

Key Features

  • 2-pole, 20A rated, C-curve trip (5-10x In)
  • 10kA breaking capacity for robust short-circuit protection
  • Green strip visual contact indication for maintenance safety
  • Positive contact indication suitable for isolation per IEC/EN 60947-2
  • Unified terminal design with wiring indication
  • Multi-standard: IEC/EN 60947-2, UL 489, CSA, GB/T
  • 35mm DIN-rail mount

Applications

General-purpose power circuits, lighting distribution boards, socket outlet circuits, HVAC equipment, and small motor loads with moderate inrush currents.

Specifications

Series Multi 9 C60BP
Poles 2P
Rated Current 20 A
Curve C
Breaking Capacity 10 kA
Voltage 480Y/277V
Standards UL 489, IEC/EN 60947-2
Brand Schneider Electric
