KL9510 Beckhoff

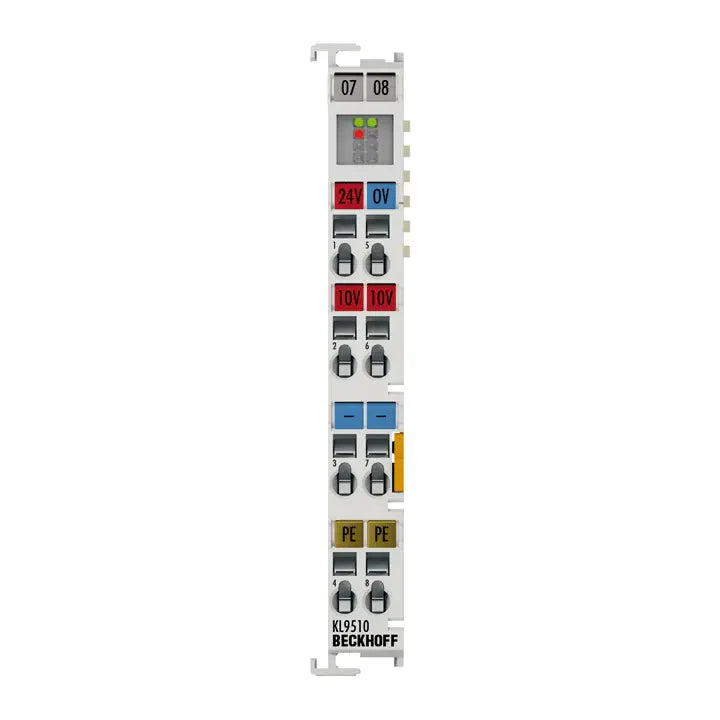

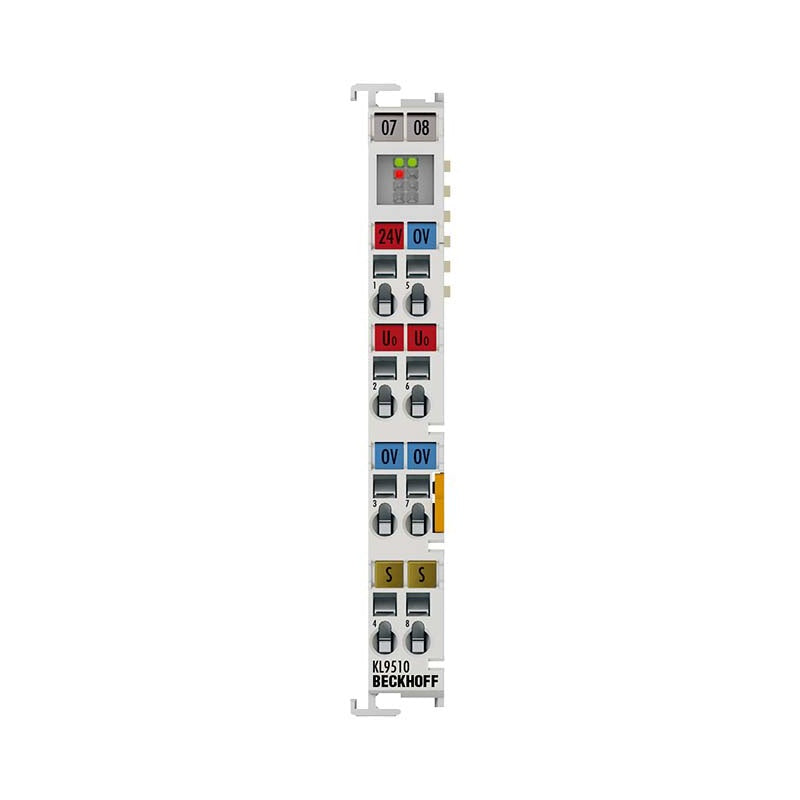

KL9510 | Power supply terminal 10 V DC

The KL9510 power supply terminal generates an output voltage of 10 V DC from the (24 V DC) input voltage, which can be accessed at the terminal. The following...

Technical Specifications

KL9510 Input voltage 24 V DC (-15%/+20%) Output voltage 10 V DC ±1% Output current 0.5 A Short-circuit proof yes Residual ripple Special features stabilized output voltage, overcurrent LED Weight approx. 65 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Plug-in wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data KL-12-8pin KS-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side

Availability: regular delivery
