KL9186 Beckhoff

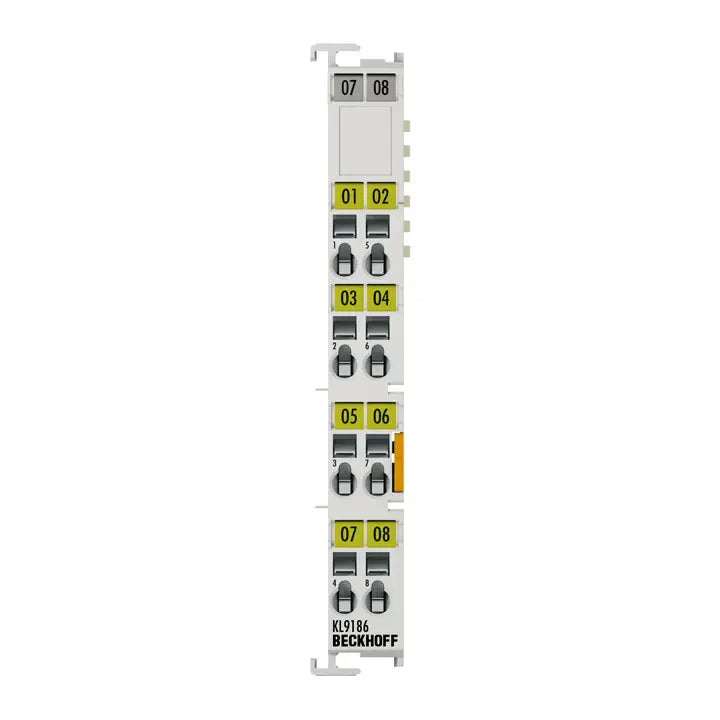

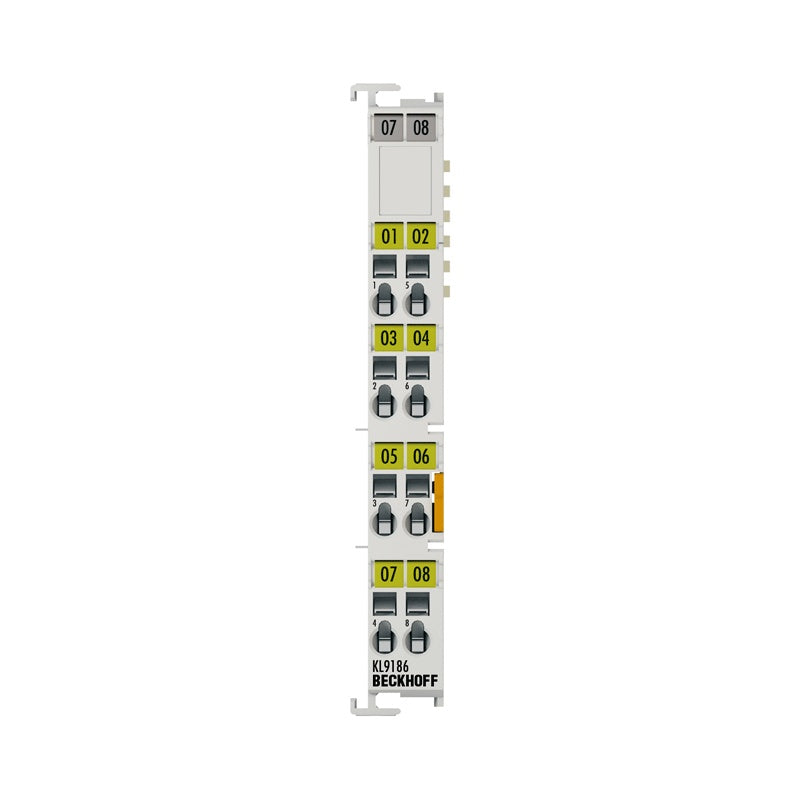

KL9186 | Potential distribution terminal, 8 x 24 V DC

The potential distribution terminal KL9186 provides eight terminal points with a potential and enables the voltage to be picked up without further bus ...

Technical Specifications

KL9186 Current load ≤ 10 A Integrated fine-wire fuse – Power LED – Defect LED – Diagnostics – Current consumption K-bus – Nominal voltage ≤ 60 V DC Electrical isolation yes Reported to K-bus – Shield connection – Renewed infeed – Number of outputs e.g.: 8 x 24 V contact Connection facility to additional power contact 8 K-bus, looped through yes Bit width in the process image 0 Electrical connection to DIN rail – Housing width 12 mm Special features 8 x 24 V connection Weight approx. 50 g Side by side mounting on Bus Terminals with power contact yes, left without PE Side by side mounting on Bus Terminals without power contact – Operating temperature -25…+60°C Storage temperature -40…+85°C Plug-in wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housin

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
