KL9110 Beckhoff

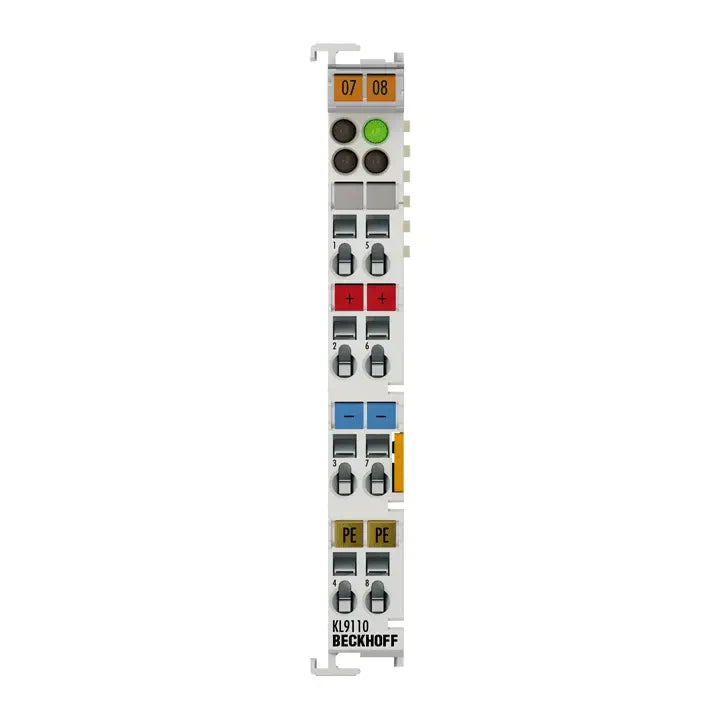

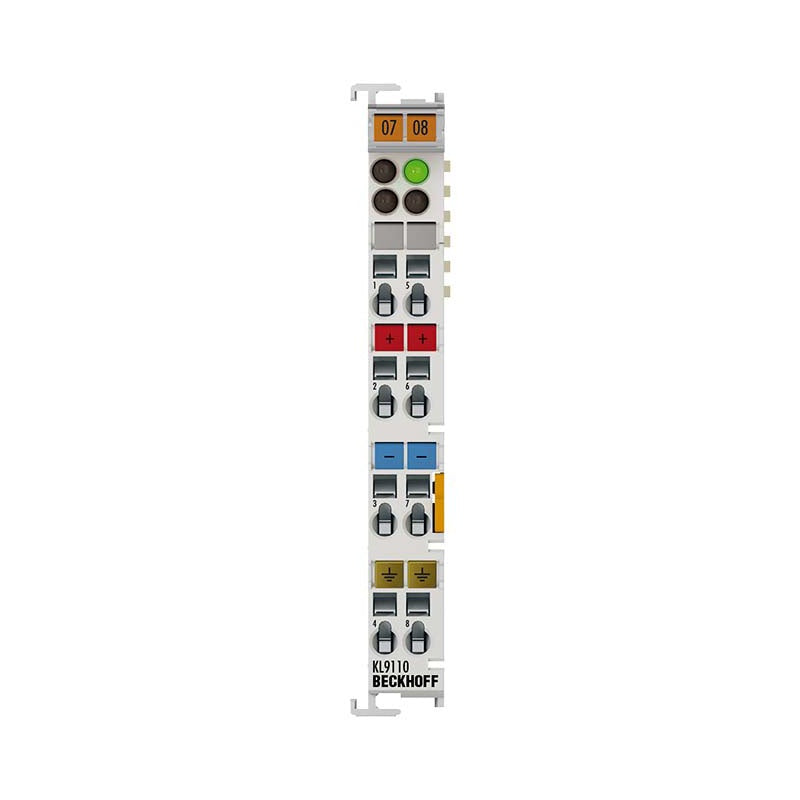

KL9110 | Potential supply terminal, 24 V DC, with diagnostics

The KL9110 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC. In order to monitor the supply...

Technical Specifications

KL9110 Current load ≤ 10 A Integrated fine-wire fuse – Power LED green Defect LED – Diagnostics yes Current consumption K-bus typ. 10 mA Nominal voltage 24 V DC Electrical isolation yes Reported to K-bus yes Shield connection – Renewed infeed yes Connection facility to additional power contact 1 K-bus, looped through yes Bit width in the process image 1 Electrical connection to DIN rail – Housing width 12 mm Weight approx. 50 g Side by side mounting on Bus Terminals with power contact yes Side by side mounting on Bus Terminals without power contact yes Operating temperature -25…+60°C Storage temperature -40…+85°C Plug-in wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV, cFMus Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc Technical data Housing data To

Availability: regular delivery
