KL4408 Beckhoff

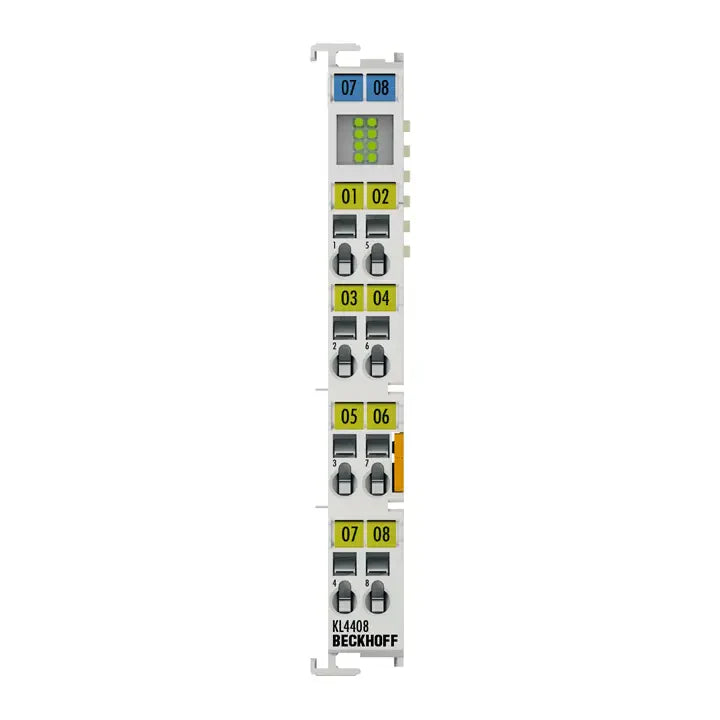

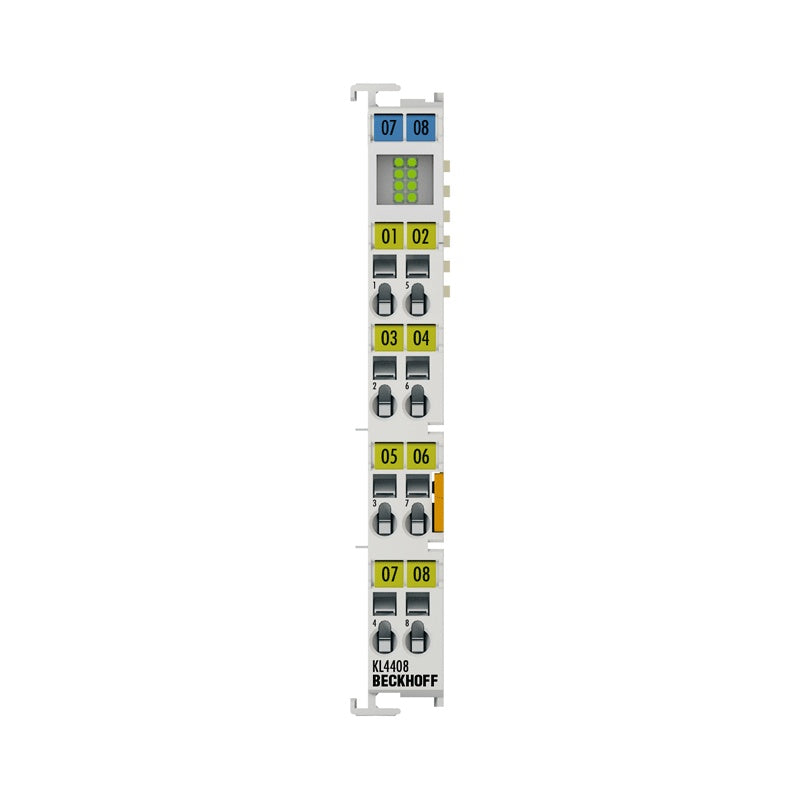

KL4408 | Bus Terminal, 8-channel analog output, voltage, 0…10 V, 12 bit

The KL4408 analog output terminal generates signals in the range between 0 to 10 V. The voltage is supplied to the process level with a resolution of 12...

Technical Specifications

KL4408 Technology single-ended Number of outputs 8 Signal voltage 0…10 V Load > 5 kΩ (short-circuit proof) Output error Resolution 12 bit Conversion time ~ 8 ms Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts load only Current consumption K-bus typ. 20 mA Bit width in the process image output: 8 x 16 bit data (8 x 8 bit control/status optional) Configuration no address or configuration setting Special features high packing density Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T

Availability: regular delivery
