KL4022 Beckhoff

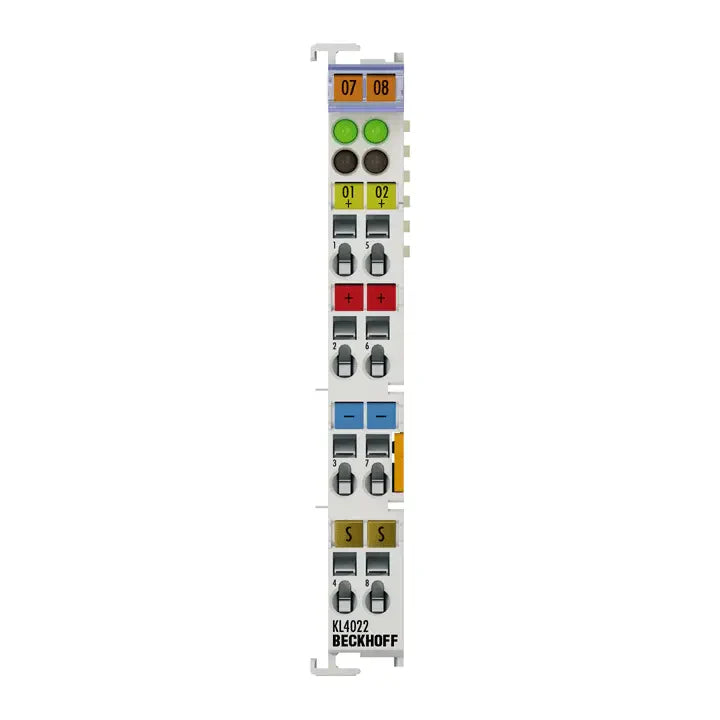

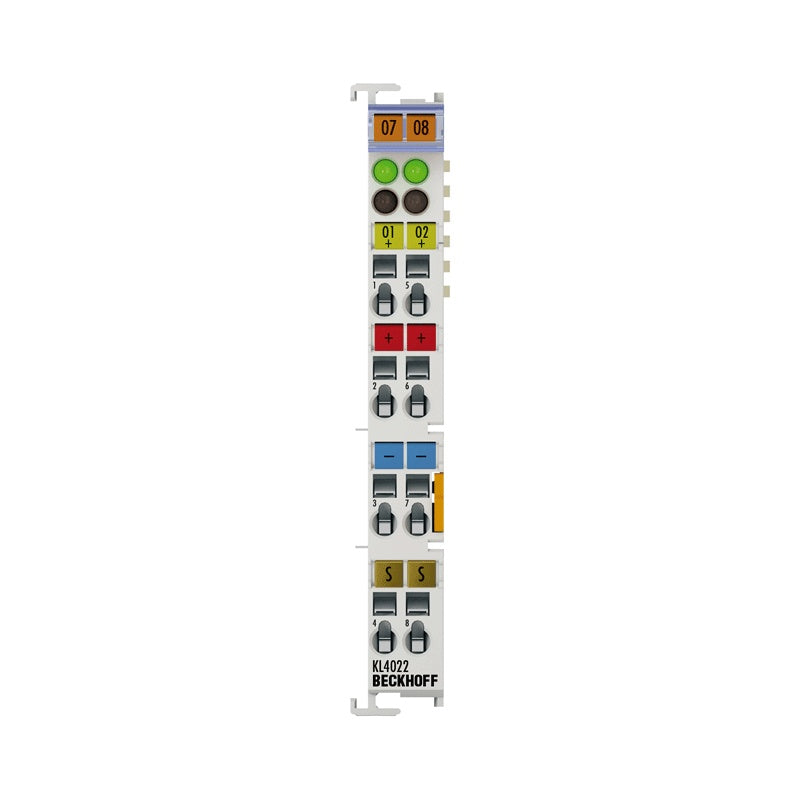

KL4022 | Bus Terminal, 2-channel analog output, current, 4…20 mA, 12 bit

The KL4022 analog output terminal generates analog output signals in the range from 4 to 20 mA. The power is supplied to the process level with a resolution...

Technical Specifications

KL4022 Technology single-ended Number of outputs 2 Power supply 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515) Signal current 4…20 mA Load Output error Resolution 12 bit Conversion time ~ 1.5 ms Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts typ. 50 mA + load Current consumption K-bus typ. 60 mA Bit width in the process image output: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address or configuration setting Weight approx. 80 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IEC

Availability: regular delivery
