KL3152 Beckhoff

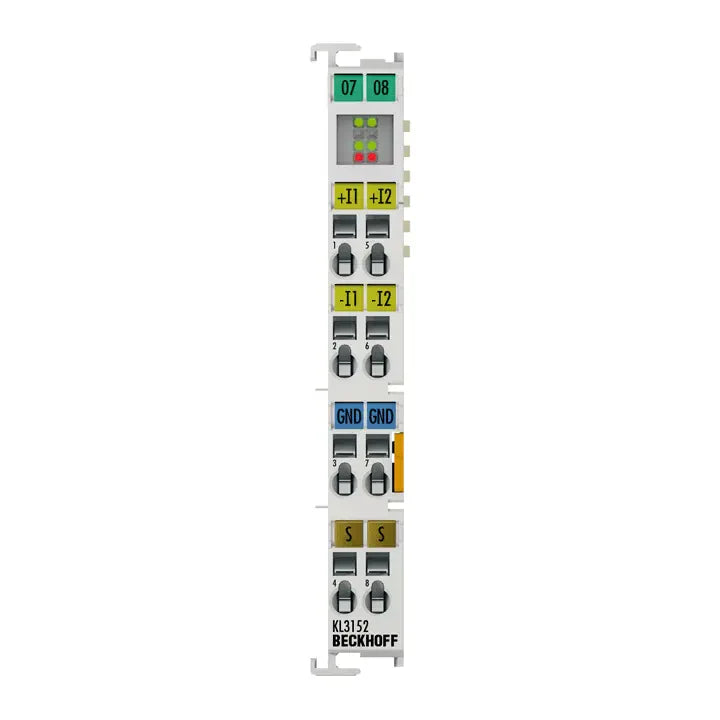

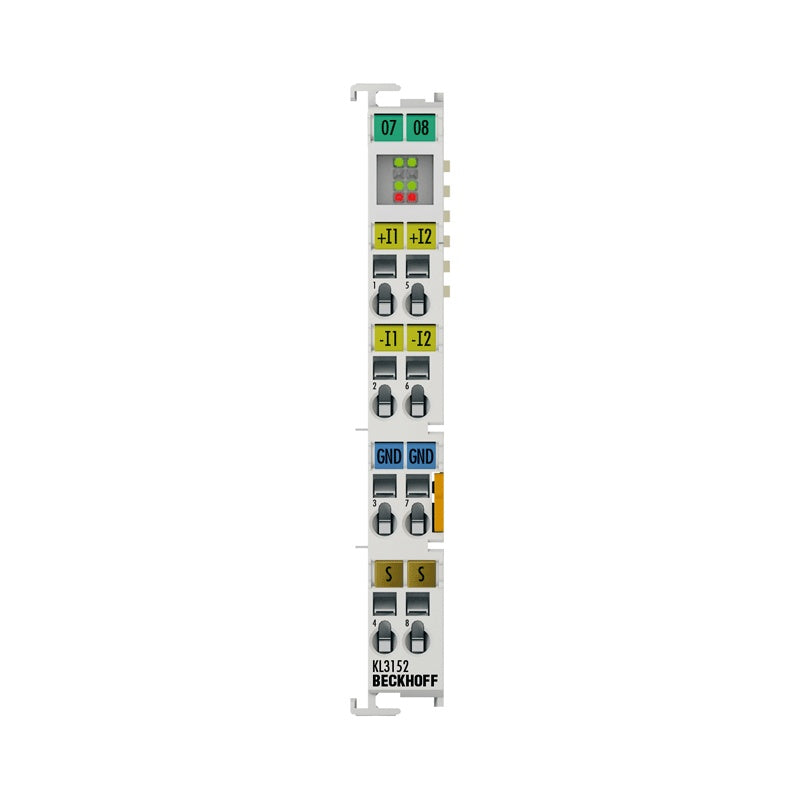

KL3152 | Bus Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, differential, high-precision

The KL3152 analog input terminal handles signals in the range between 4 and 20 mA. The current is digitized to a resolution of 16 bits, and is transmitted...

Technical Specifications

KL3152 Number of inputs 2 Power supply via the K-bus Signal current 4…20 mA Technology differential input Internal resistance typ. 100 Ω shunt Common mode voltage U CM max. ±10 V Conversion time 140 ms, configurable Filter 50 Hz, configurable Resolution 16 bit Measurement error/uncertainty Surge voltage resistance 35 V DC Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – Current consumption K-bus typ. 85 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Special features increased measuring accuracy Weight approx. 70 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, C

Availability: regular delivery
