KL2622 Beckhoff

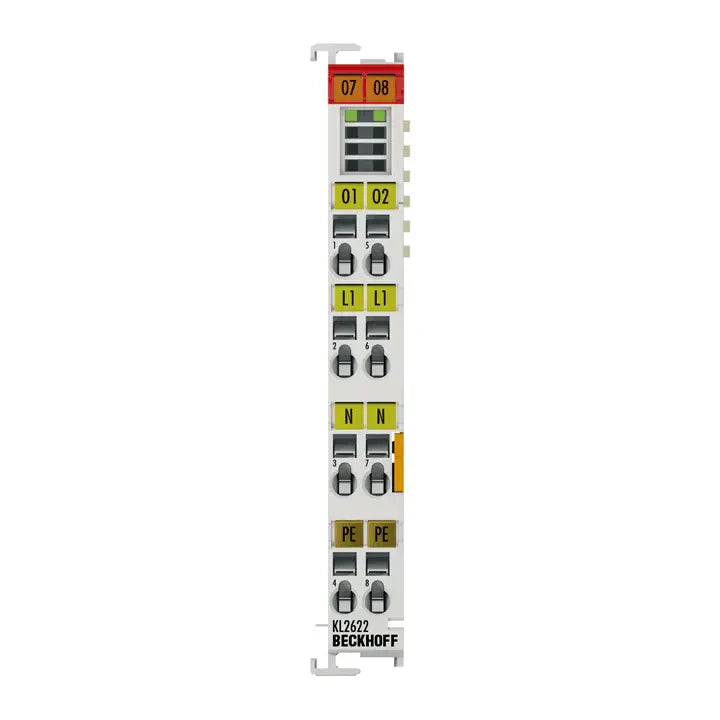

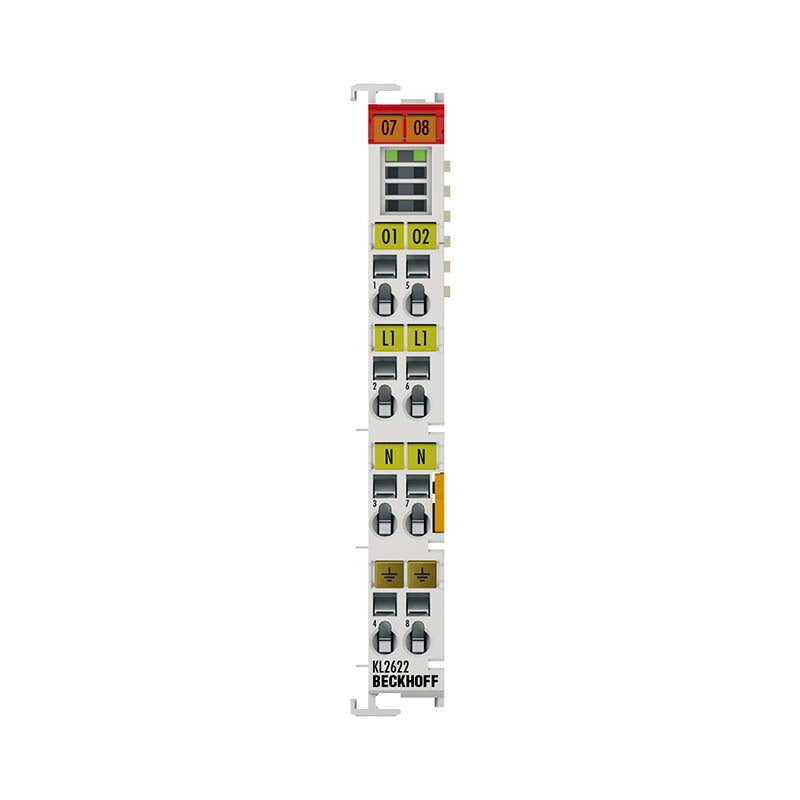

KL2622 | Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts

The KL2622 output terminal has two relays, each with a single contact, and can be used to switch devices requiring mains power and operating at up to 230...

Technical Specifications

KL2622 Number of outputs 2 x make contacts Nominal voltage 230 V AC/30 V DC Load type ohmic, inductive, lamp load Max. output current 5 A per channel Switching current 5 A AC/DC (ohmic)/2 A AC/DC (inductive) Ohmic switching current 5 A AC/DC Inductive switching current 2 A AC/DC Minimum permitted load 10 mA at 5 V DC Lamp test, electronic ballast max. 5 A starting current (4 x 58 W) Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts – Current consumption K-bus typ. 85 mA Bit width in the process image 2 outputs Operating cycles mech. (min.) 2 x 10 7 Operating cycles electr. (min.) 1 x 10 5 (5 A/30 V DC) Configuration no address or configuration setting Special features potential-free contacts Weight approx. 80 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
