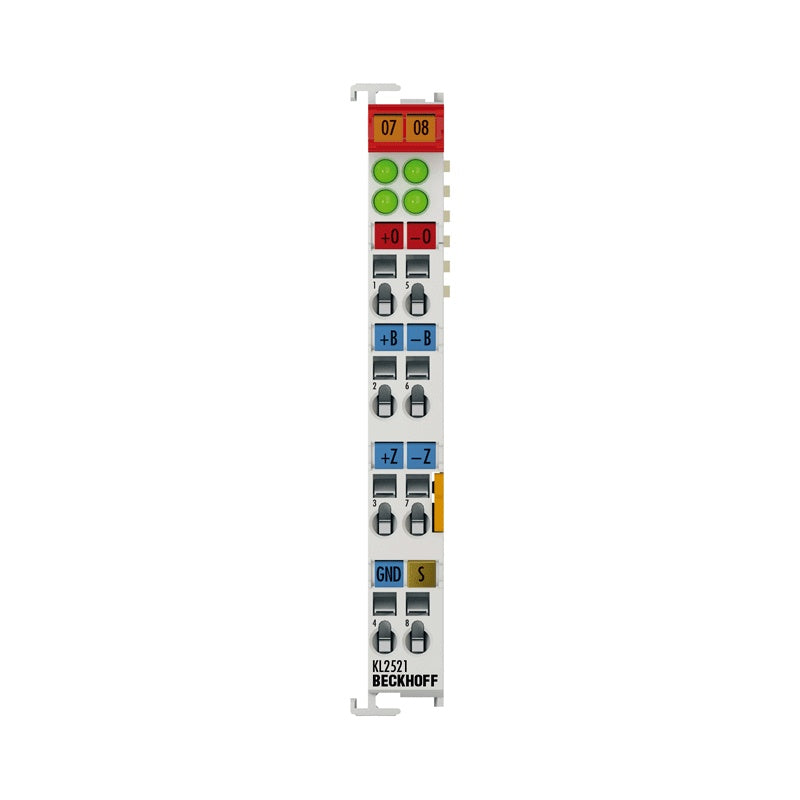

KL2521-0024 Beckhoff

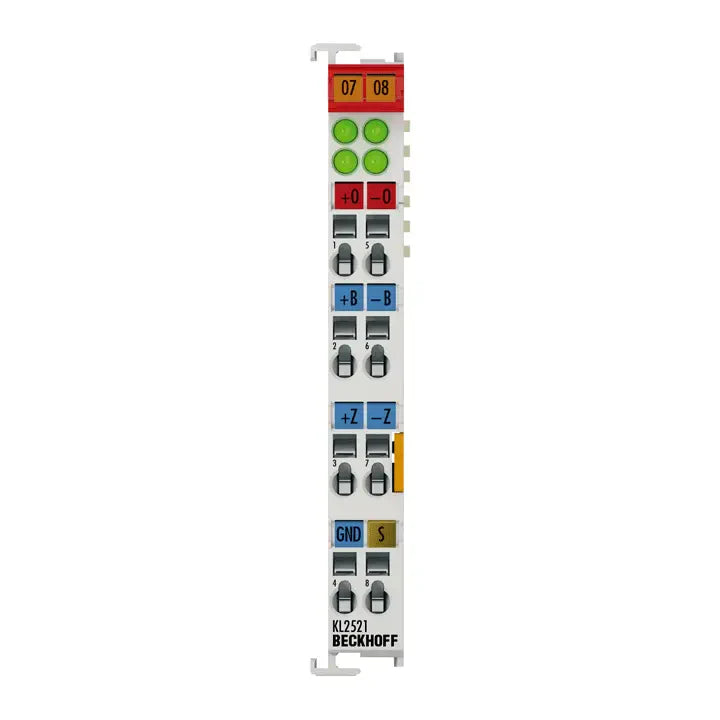

KL2521 | Bus Terminal, 1-channel pulse train output, incr. enc. simulation, RS422, 50 mA

The KL2521 output terminal alters the frequency of a binary signal and (electrically isolated from the K-bus) outputs it. The frequency is preset by a ...

Technical Specifications

KL2521 KL2521-0024 Number of inputs 2 (+T, +Z) Nominal voltage RS422 level 24 V DC (externally supplied) Load type RS422 input 24 V DC inputs Signal voltage RS422 level 24 V DC (externally supplied) Max. output current RS422 specification 0.5 A PWM clock frequency 1…500 kHz, 50 kHz default Duty cycle 50% (±20%) Resolution max. 15 bit Electrical isolation 500 V (K-bus/field potential) Current consumption K-bus typ. 50 mA, max. 120 mA (load-dependent) Bit width in the process image 24 inputs/outputs: 1 x 16 bit data, 1 x 8 bit control/status Configuration configuration via Bus Coupler or controller Weight approx. 50 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Plug

Availability: regular delivery
