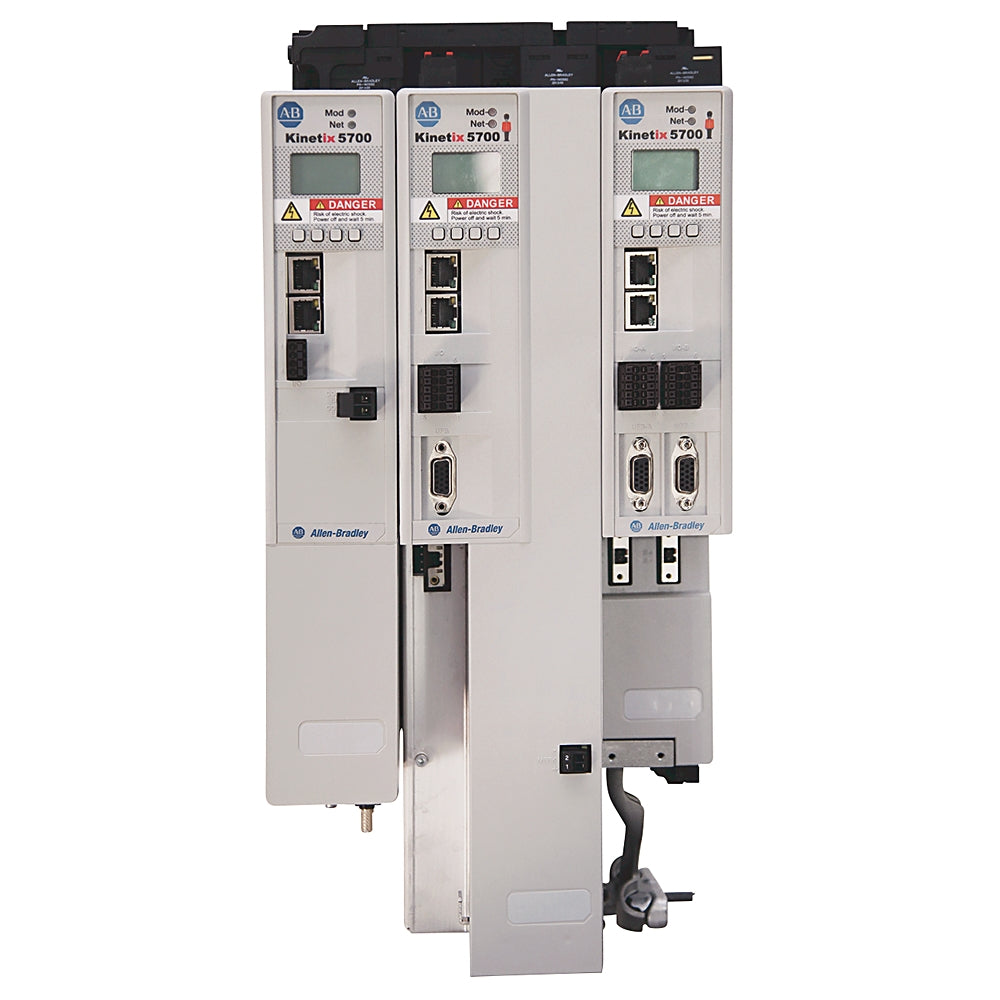

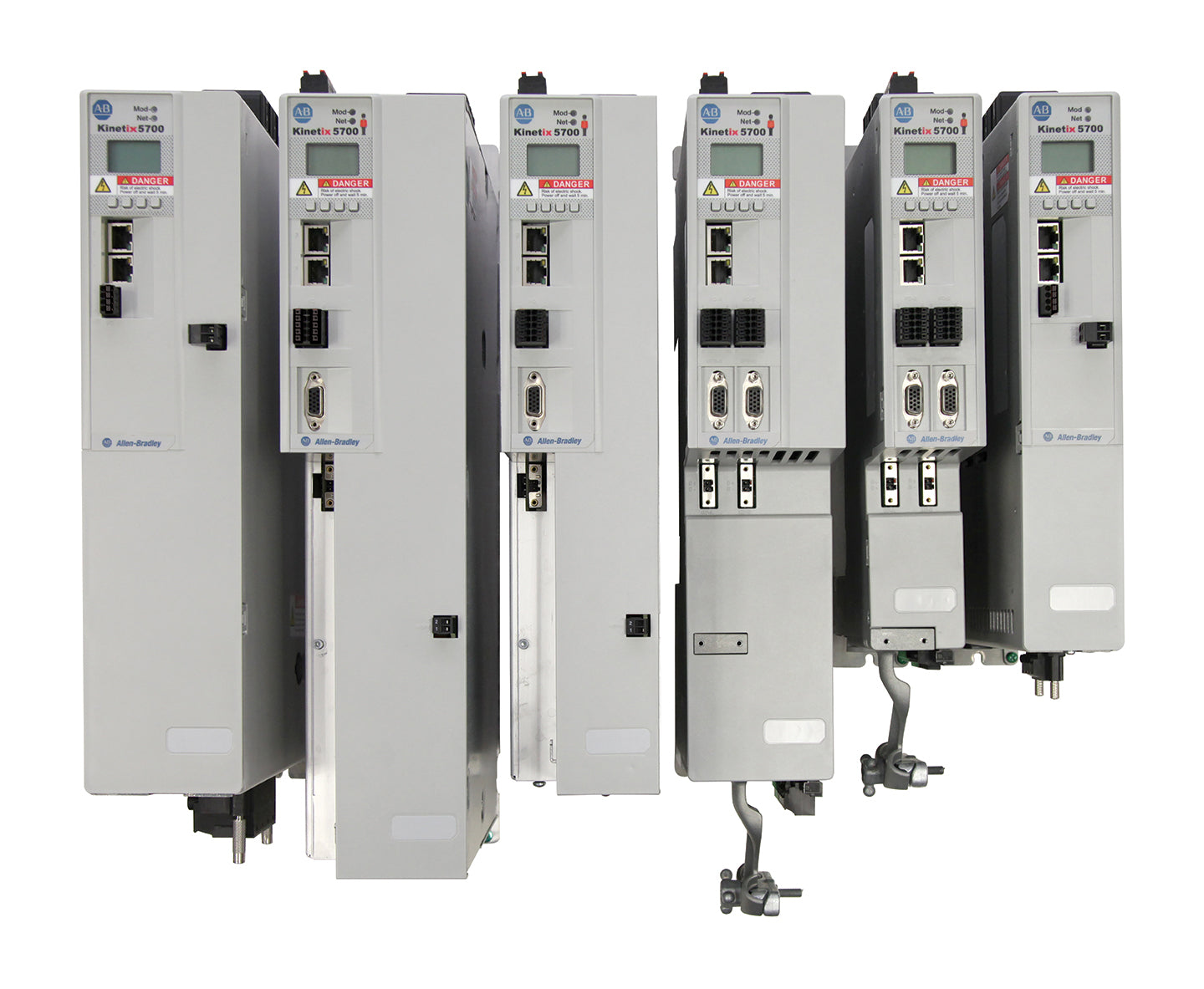

2x23A Dual-axis Module 85mm
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Kinetix Servo | Lifecycle: Active
| Altitude | Storage range (nonoperating): 3000 m (9843 ft) during transport |
| Bandwidth | 400 Hz @ velocity loop, maximum |
| Continuous output current | 32.5 A, zero to peak |
| Continuous output current (rms) | 23 A |
| Continuous power output, nom | 15.9 kW @ 324...528V rms, 3-phase |
| Control power current | 8.3A @ 24V DC current, maximum (with maximum brake current) |
| DC input current | 24.5A @ 458...747V DC |
| Degree of pollution | (IEC 61800-5-1): 2 |
| Depth | 250 mm |
| Height | 358 mm |
| Internal capacitance | 705 F |
| Nonoperating temperature | -40 C |
| Operating temperature | 0 C |
| Peak output current | 81.3 A, zero to peak |
| Peak output current (rms) | 57.5 A |
