EPP1018-0002 Beckhoff

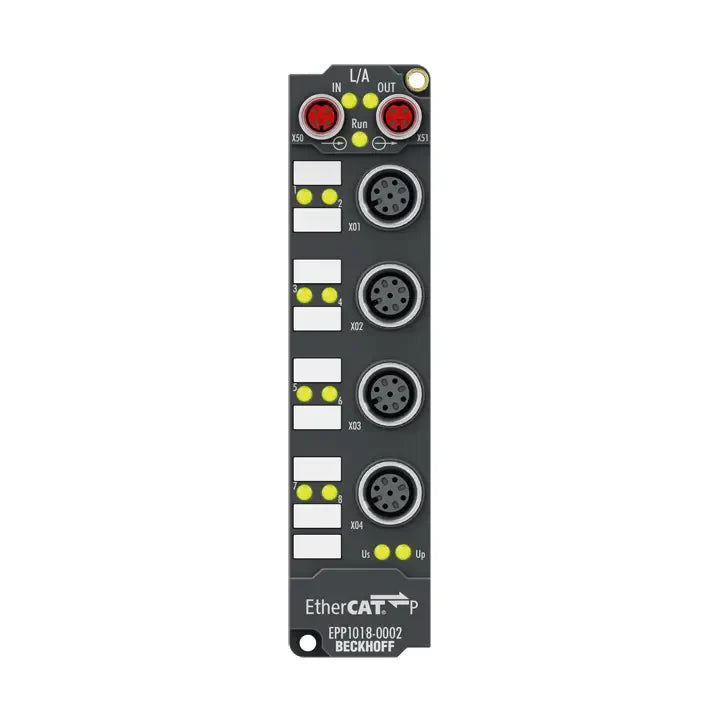

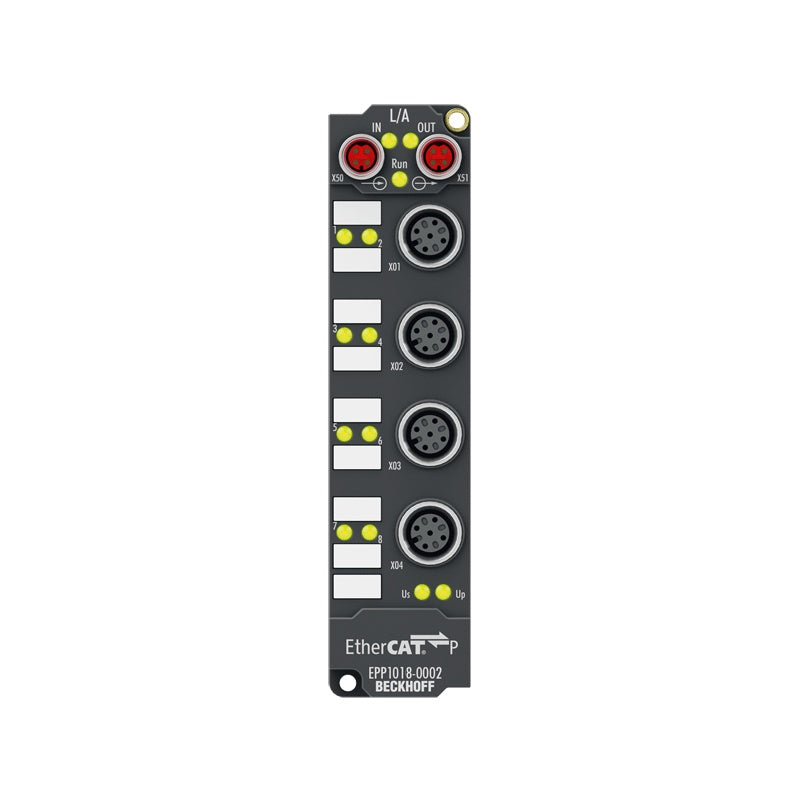

EPP1018-0002 | EtherCAT P Box, 8-channel digital input, 24 V DC, 10 µs, M12

The EPP1018-0002 EtherCAT P Box with digital inputs acquires binary control signals from the process level and transfers them, with electrical isolation...

Technical Specifications

EPP1018-0002 Protocol EtherCAT Bus interface 2 x M8 socket, P-coded, shielded Specification EN 61131-2, type 1/3 Number of inputs 8 Input connections M12 x 1, 5-pin, A-coded Nominal input voltage 24 V DC (-15%/+20%) Input filter 10 µs Signal voltage “0” -3…+5 V (EN 61131-2, type 3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input current typ. 3 mA (EN 61131-2, type 3) Distributed clocks – Sensor supply from control voltage, max. 0.5 A, short-circuit proof in total Current consumption from U S typ. 100 mA Special features – Weight approx. 165 g Operating temperature -25…+60°C Storage temperature -40…+85°C Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable Approvals/markings CE, UL Technical data Housing data Dimensions To top Housing

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
