EP6001-0002 Beckhoff

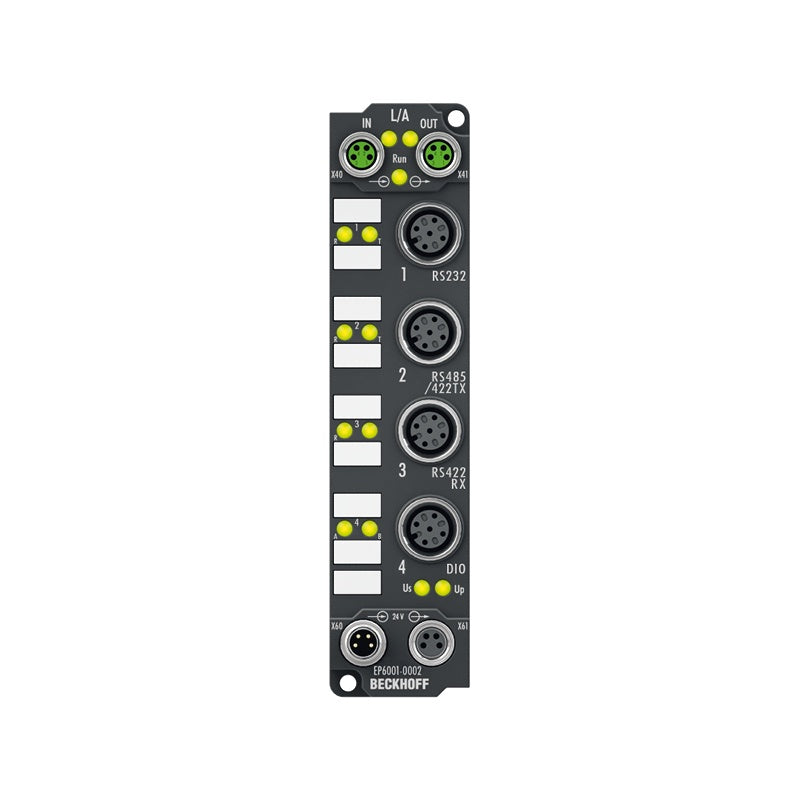

EP6001-0002 | EtherCAT Box, 1-channel communication interface, serial, RS232/RS422/RS485, M12

The EP6001-0002 serial interface module allows the connection of devices with an RS232 or RS422/RS485 interface. The module transmits the data in a fully...

Technical Specifications

EP6001-0002 Protocol EtherCAT Bus interface 2 x M8 socket, 4-pin, a-coded, shielded Data transfer channels 1 Interfaces individually selectable from RS232, RS485, RS422 Transmission rate 300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset Communication TxD and RxD, full duplex Bit distortion Cable length RS232: max. 15 m; RS422/RS485: approx. 1000 m Data buffer 864 bytes receive buffer, 128 bytes transmit buffer Sensor supply +5 V DC, 1 A Connection technology M12 socket, 5-pin, a-coded Number of channels 2 digital inputs or outputs Input filter 10 µs (for digital inputs) Signal voltage “0” -3…+5 V Signal voltage “1” 11…30 V Input current typ. 3 mA (EN 61131-2, type 3) Load type ohmic, inductive, lamp load Rated load voltage 24 V DC (-15%/+20%) Max. output current 0.5 A per channel, individually short-circuit proof Short-circuit current typ. 1.5 A Nominal voltage 24 V DC

Availability: regular delivery
