EL6752 Beckhoff

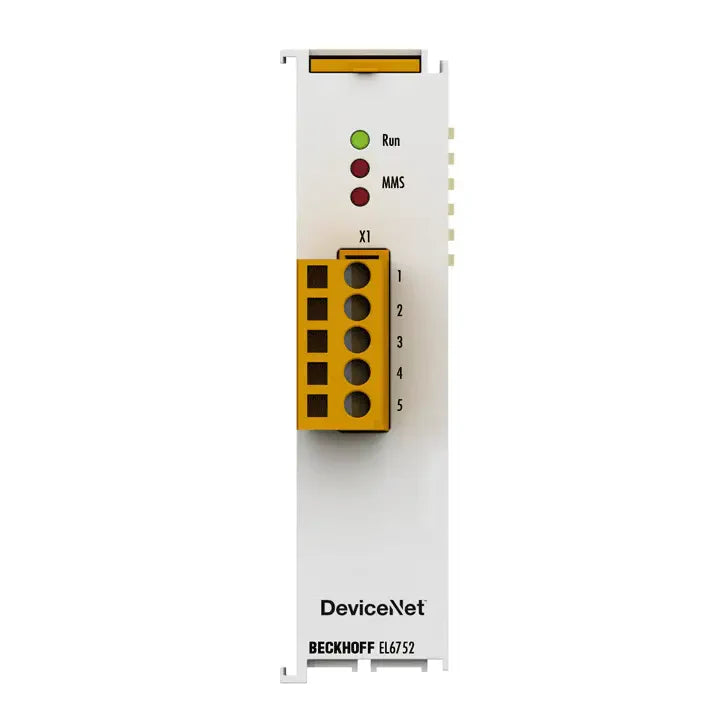

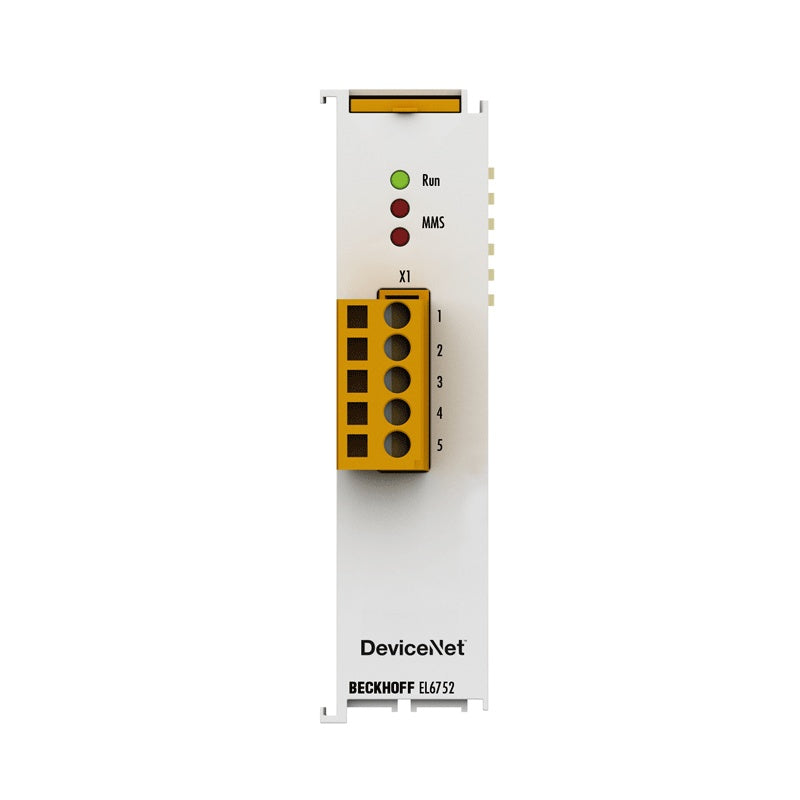

EL6752 | EtherCAT Terminal, 1-channel communication interface, DeviceNet®, master

The Terminal enables within an EtherCAT Terminal network the integration of any DeviceNet® devices and can be used as a master. The DeviceNet® terminal...

Technical Specifications

EL6752 Technology DeviceNet ® master terminal Number of channels 1 Fieldbus DeviceNet ® Data transfer rates 125, 250, 500 kbaud Interfaces open style connector, 5-pin, according to DeviceNet ® specification, galvanically decoupled (Connector is supplied.) Communication DeviceNet ® network master (scanner) Bus device max. 63 slaves Hardware diagnostics status LEDs Distributed clocks – Current consumption power contacts – Current consumption E-bus typ. 260 mA Special features DeviceNet ® scanner Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Availability: regular delivery
