EL6224 Beckhoff

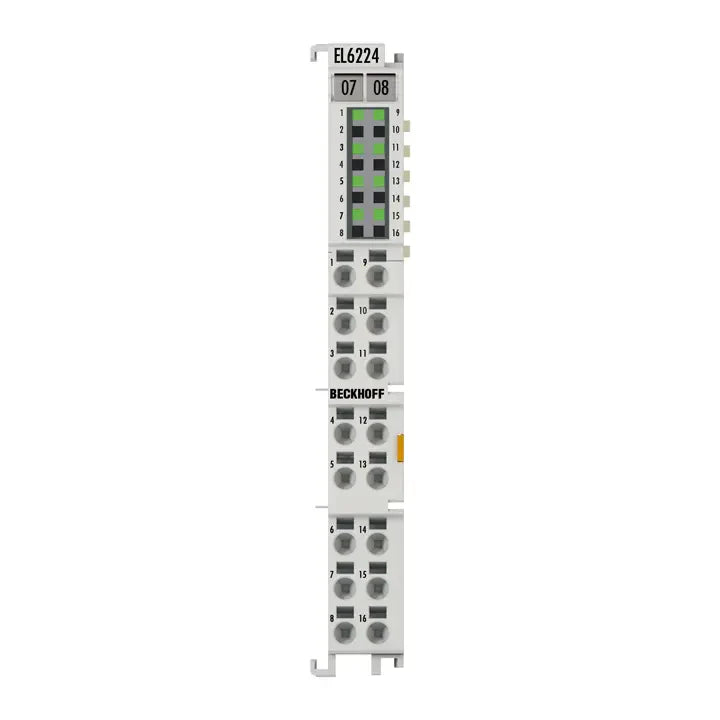

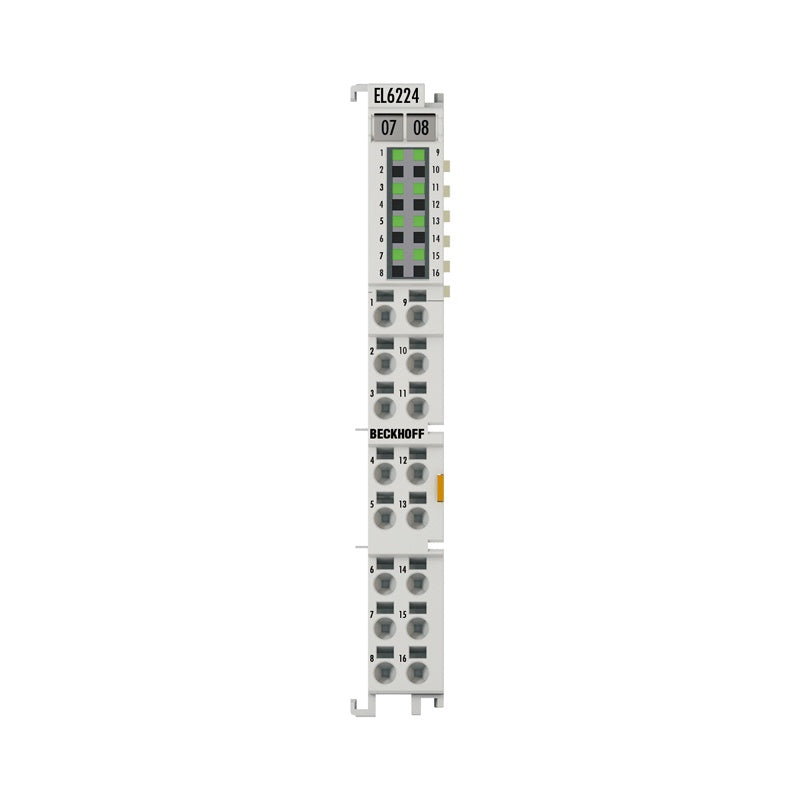

EL6224 | EtherCAT Terminal, 4-channel communication interface, IO-Link, master

The EL6224 IO-Link terminal enables connection of up to four IO-Link devices, e.g. actuators, sensors or combinations of both. A point-to-point connection...

Technical Specifications

EL6224 Technology IO-Link input/output Specification version IO-Link V1.1 IO-Link interfaces 4 Field voltage 24 V DC via power contacts Connection 3-wire Transmission rate 4.8 kbaud, 38.4 kbaud and 230.4 kbaud Cable length max. 20 m Power supply via E-bus and power contacts Electrical isolation 500 V (E-bus/signal voltage) Power contacts yes Supply current for devices 500 mA per device Current consumption E-bus typ. 120 mA Special features each channel parameterizable in TwinCAT Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data

Availability: regular delivery
