EL6021 Beckhoff

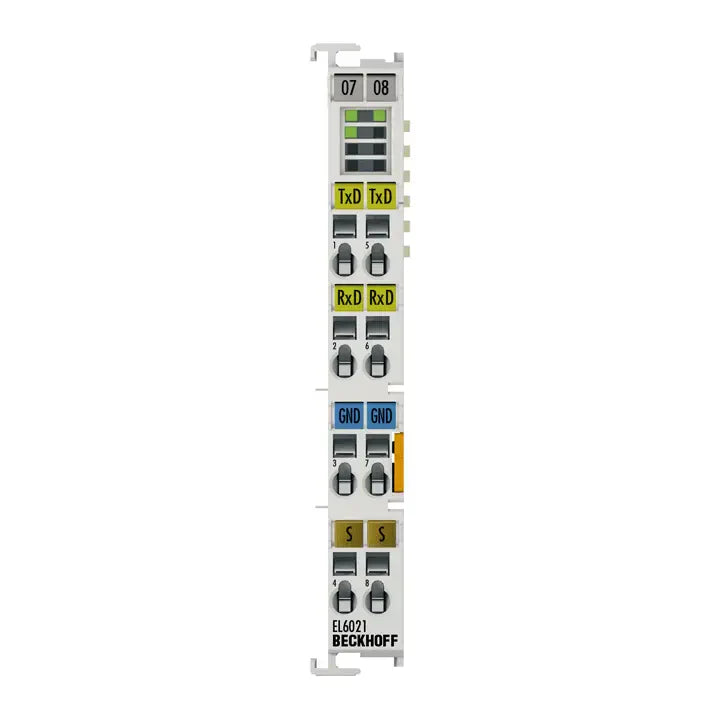

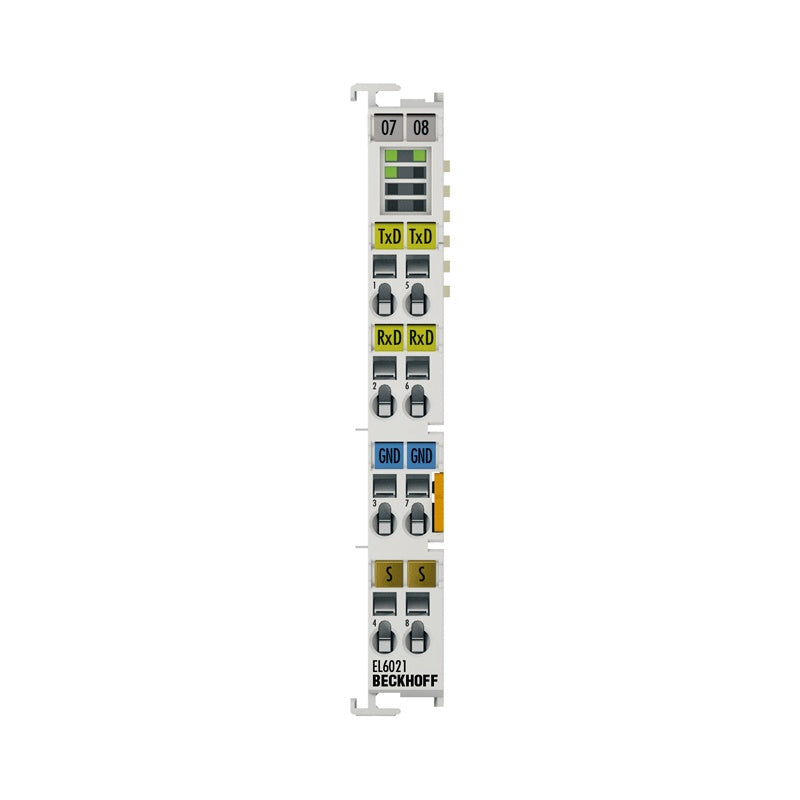

EL6021 | EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485

The EL6021 serial interface enables the connection of devices with RS422 or RS485 interface. These devices communicate with the automation device via the...

Technical Specifications

EL6021 Connection technology terminal contact Data transfer channels TxD and RxD, full/half duplex Data transfer rates 2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit Interfaces 1 x RS422/RS485 Bit transfer with differential signal Cable impedance 120 Ω Cable length approx. 1000 m twisted pair Providing external supply – Power supply via the E-bus Distributed clocks – Electrical isolation 500 V (E-bus/signal voltage) Data buffer 864 bytes receive buffer, 128 bytes transmit buffer Configuration no address setting, configuration via PLC Current consumption power contacts – Current consumption E-bus typ. 170 mA Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protec

Availability: regular delivery
