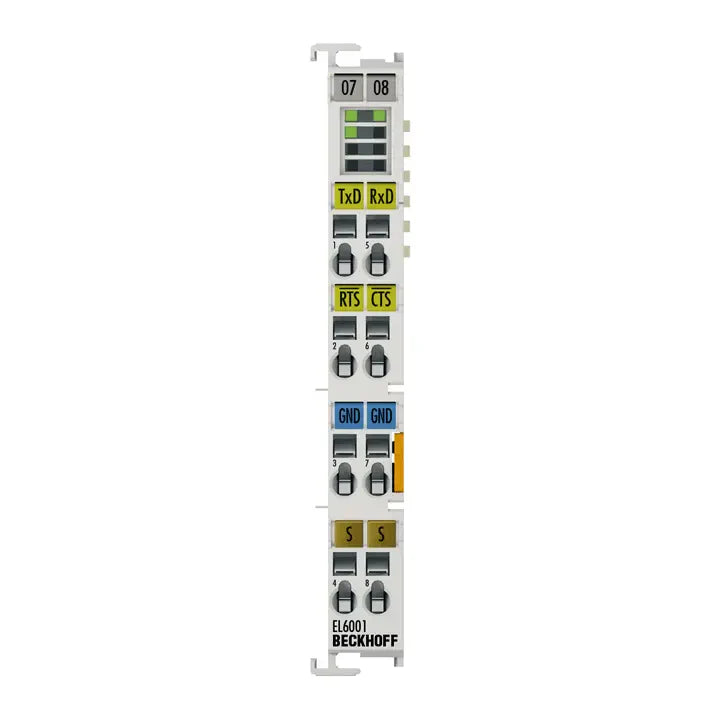

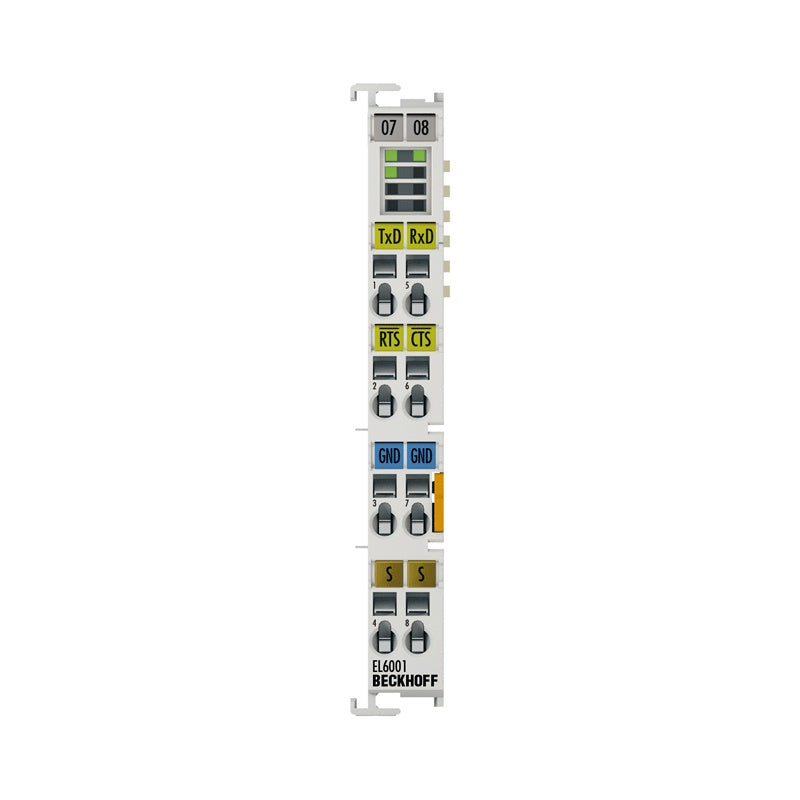

EL6001 Beckhoff

EL6001 | EtherCAT Terminal, 1-channel communication interface, serial, RS232

The EL6001 serial interface enables the connection of devices with RS232 interface and operates in conformity with the CCITT V.28/DIN 66 259-1 standards...

Technical Specifications

EL6001 Connection technology terminal contact Data transfer channels 2 (1/1), TxD and RxD, full duplex Transmission rate 2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit Interfaces 1 x RS232 Bit distortion Cable impedance – Cable length max. 15 m Providing external supply – Power supply via the E-bus Distributed clocks – Electrical isolation 500 V (E-bus/signal voltage) Data buffer 864 bytes receive buffer, 128 bytes transmit buffer Configuration no address setting, configuration via the controller Current consumption power contacts – Current consumption E-bus typ. 120 mA Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/varia

Availability: regular delivery
