EL4132 Beckhoff

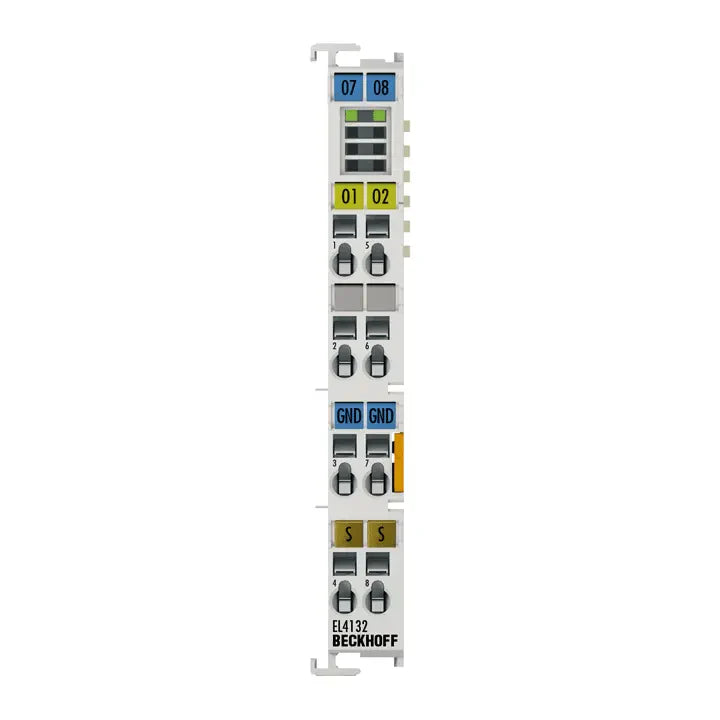

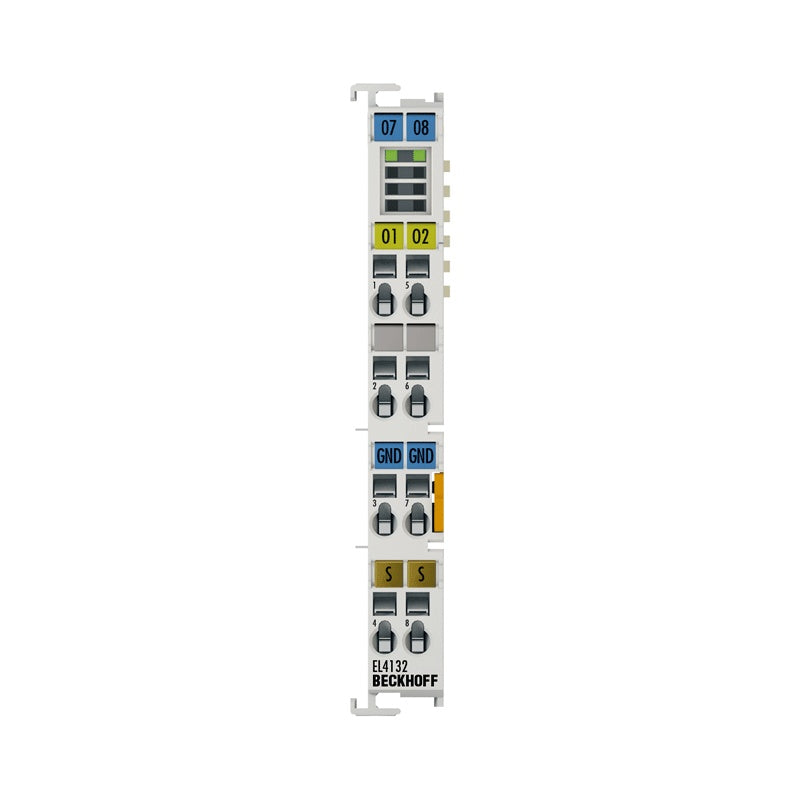

EL4132 | EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 16 bit

The EL4132 analog output terminal generates signals in the range between -10 and +10 V. The voltage is supplied to the process level with a resolution ...

Technical Specifications

EL4132 Number of outputs 2 Power supply via the E-bus Signal voltage -10…+10 V Distributed clocks yes Distributed clock accuracy Load > 5 kΩ (short-circuit proof) Measurement error/uncertainty Resolution 16 bit (incl. sign) Electrical isolation 500 V (E-bus/signal voltage) Output rate max. 15 ksps Current consumption power contacts – Current consumption E-bus typ. 170 mA Bit width in the process image 2 x 16 bit AO output Special features Watchdog parameterizable; user synchronization can be activated. Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex ma

Availability: regular delivery
