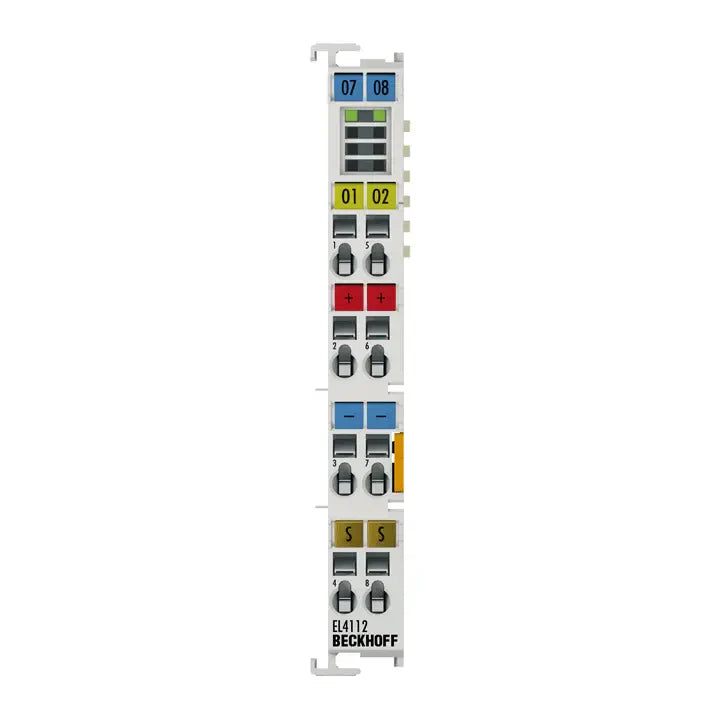

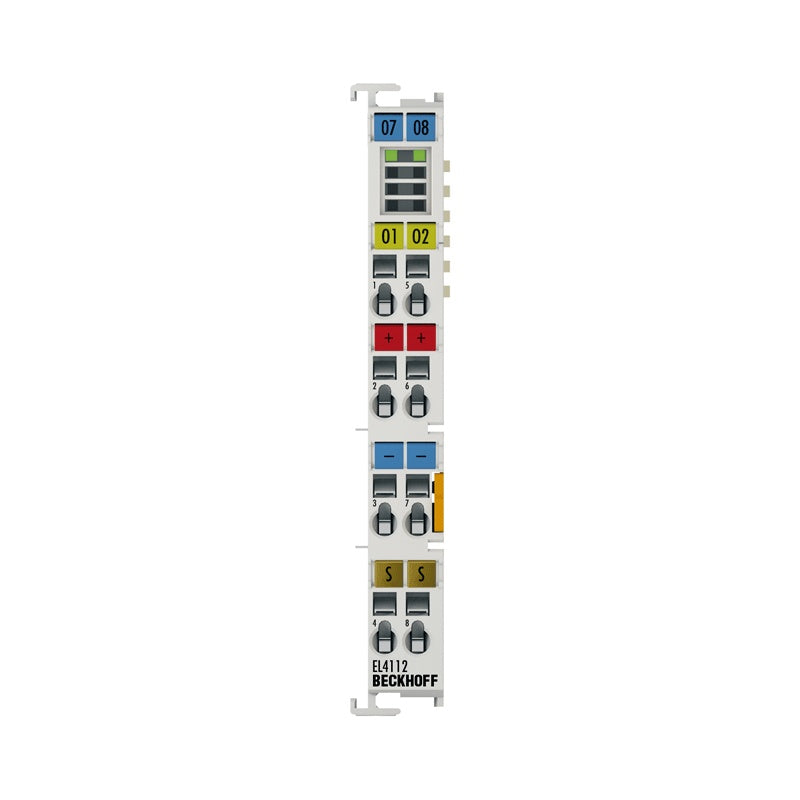

EL4112 Beckhoff

EL4112 | EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 16 bit

The EL4112 analog output terminal generates analog output signals in the range between 0 and 20 mA. The power is supplied to the process level with a resolution...

Technical Specifications

EL4112 Number of outputs 2 Power supply 24 V DC via power contacts Signal current 0…20 mA Distributed clocks yes Distributed clock accuracy Load Resolution 16 bit (incl. sign) Output error Electrical isolation 500 V (E-bus/signal voltage) Output rate max. 15 ksps Current consumption power contacts typ. 15 mA + load Current consumption E-bus typ. 110 mA Bit width in the process image 2 x 16 bit AO output Special features Watchdog parameterizable, user synchronization can be activated. Weight approx. 60 g Operating temperature -25…+55°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G

Availability: regular delivery
