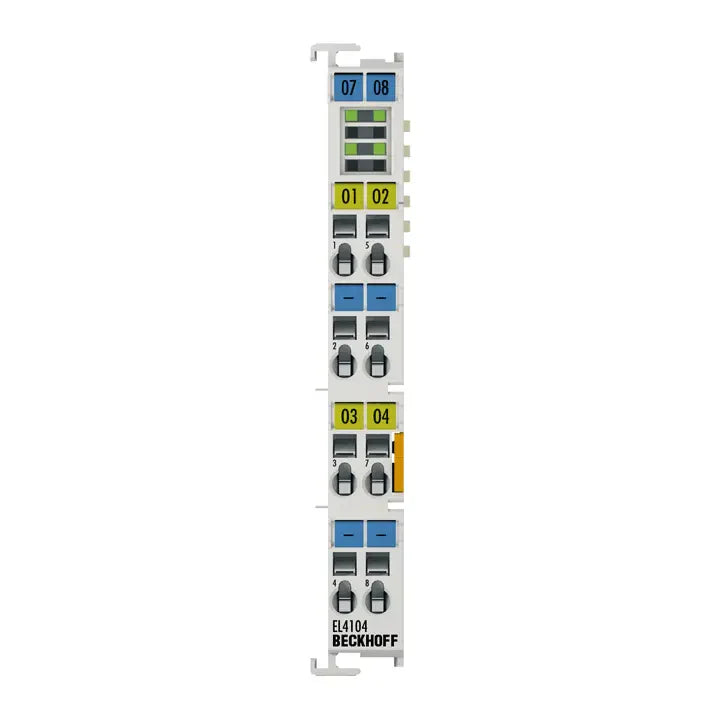

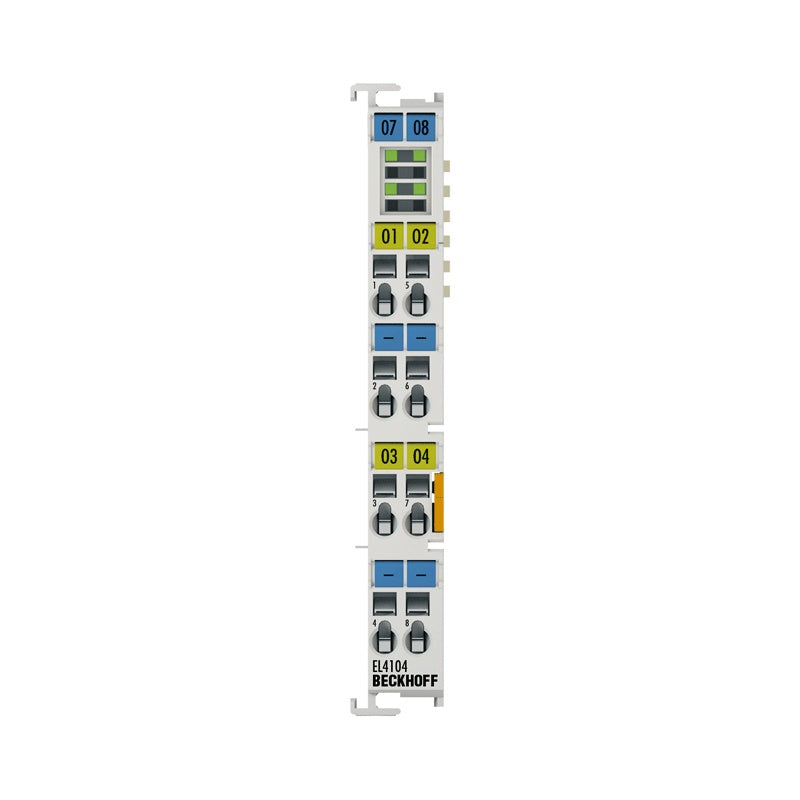

EL4104 Beckhoff

EL4104 | EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V, 16 bit

The EL4104 analog output terminal generate signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of 16...

Technical Specifications

EL4104 Number of outputs 4 Power supply via the E-bus Signal voltage 0…10 V Distributed clocks yes Distributed clock accuracy Load > 5 kΩ (short-circuit proof) Resolution 16 bit (incl. sign) Output error Electrical isolation 500 V (E-bus/signal voltage) Output rate max. 4 ksps Current consumption power contacts – Current consumption E-bus typ. 190 mA Bit width in the process image 4 x 16 bit AO output Special features Watchdog parameterizable; user synchronization can be activated. Weight approx. 65 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex

Availability: regular delivery
