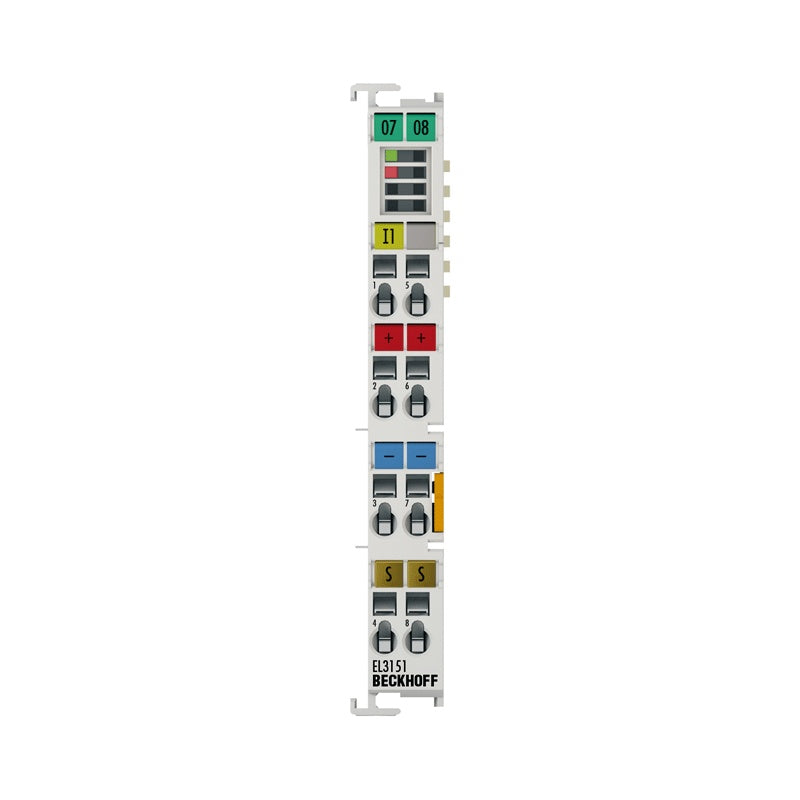

EL3151 Beckhoff

EL3151 | EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended

The job of the EL3151 analog input terminal is to supply power to measuring transducers located in the field and to transmit analog measurement signals...

Technical Specifications

EL3151 Number of inputs 1 (single-ended) Power supply via the E-bus Signal current 4…20 mA Distributed clocks yes Internal resistance typ. 85 Ω + diode voltage Input filter cut-off frequency 5 kHz Dielectric strength max. 30 V Conversion time ~ 40 µs Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 4 byte Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring level for all ESxxxx terminals Protect. rating/i

Availability: regular delivery
