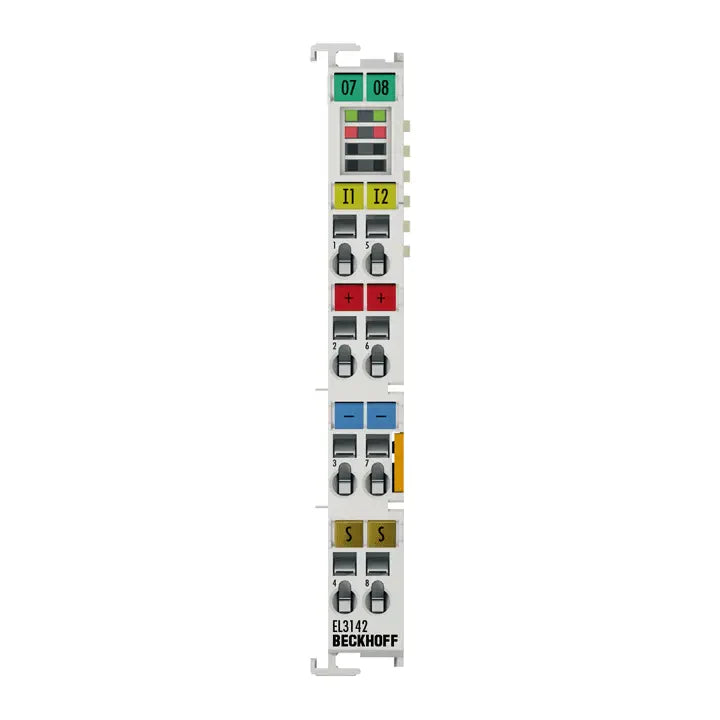

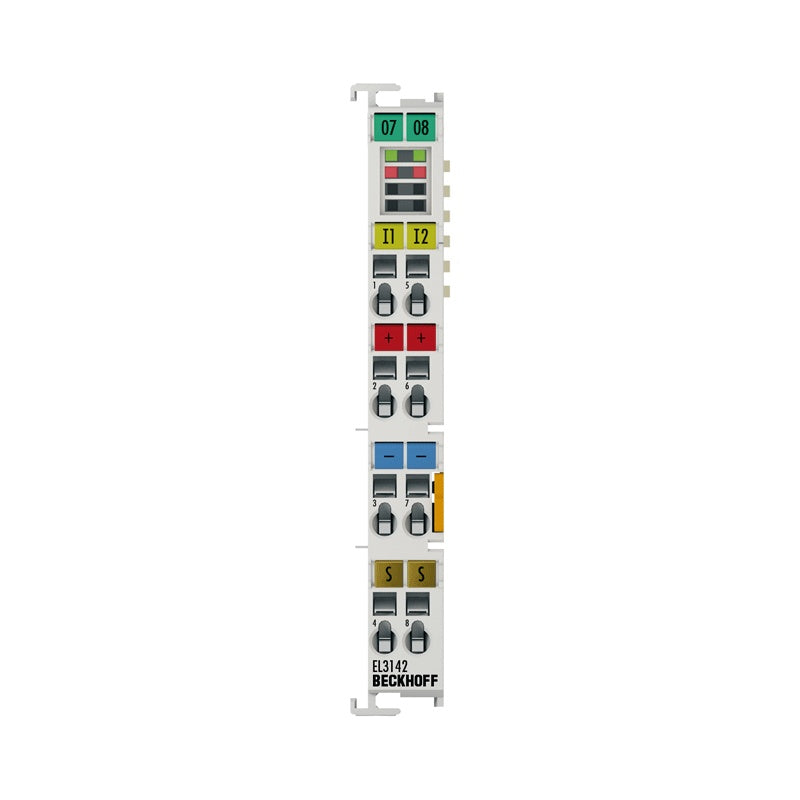

EL3142 Beckhoff

EL3142 | EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, single-ended

The job of the EL3142 analog input terminal is to supply power to measuring transducers located in the field, and to transmit analog measurement signals...

Technical Specifications

EL3142 Number of inputs 2 (single-ended) Power supply via the E-bus Signal current 0…20 mA Oversampling factor – Input signal bandwidth see input filter Distributed clocks yes Distributed clock accuracy Internal resistance typ. 85 Ω + diode voltage Input filter cut-off frequency 5 kHz Dielectric strength max. 30 V Conversion time ~ 60 µs (fast mode ~ 40 µs) Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 170 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emi

Availability: regular delivery
