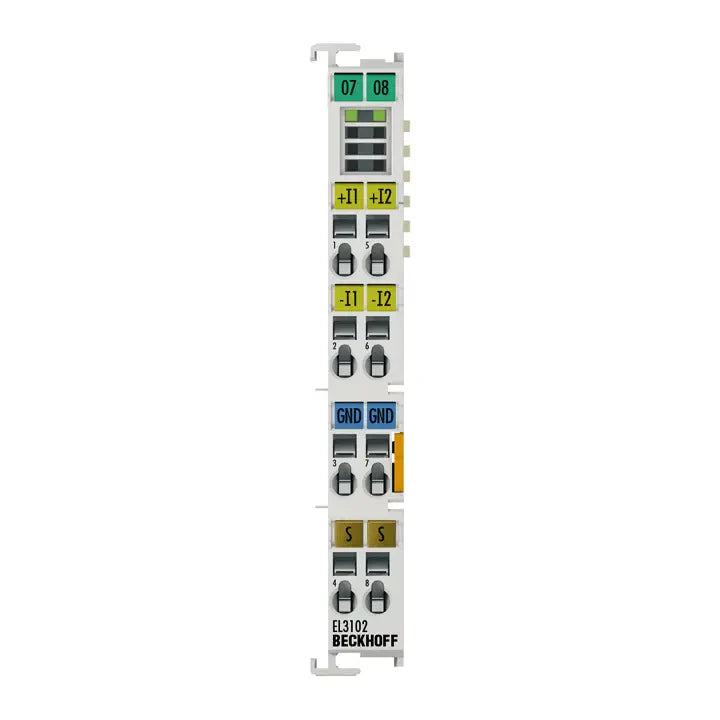

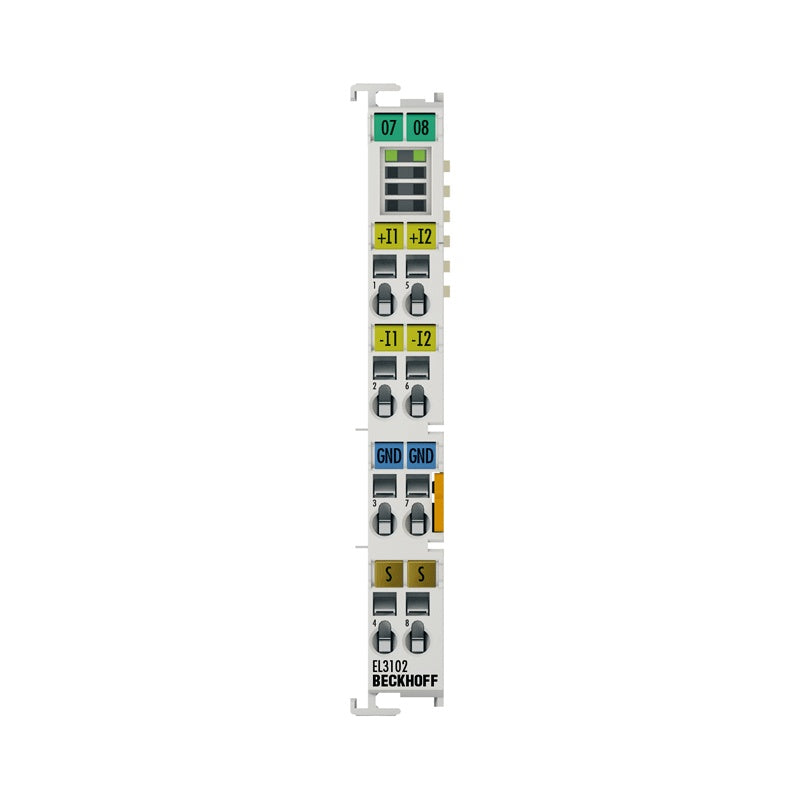

EL3102 | EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, differential

The EL3102 analog input terminal handles signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 16 bits, and is transmitted...

Technical Specifications

EL3102 Number of inputs 2 (differential) Power supply via the E-bus Signal voltage -10…+10 V Oversampling factor – Input signal bandwidth – Distributed clocks yes Distributed clock accuracy Internal resistance > 200 kΩ Input filter cut-off frequency 5 kHz Common mode voltage U CM max. 35 V (relative to the internal GND) Conversion time ~ 60 µs (fast mode ~ 40 µs) Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 170 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conform
