EL3068 Beckhoff

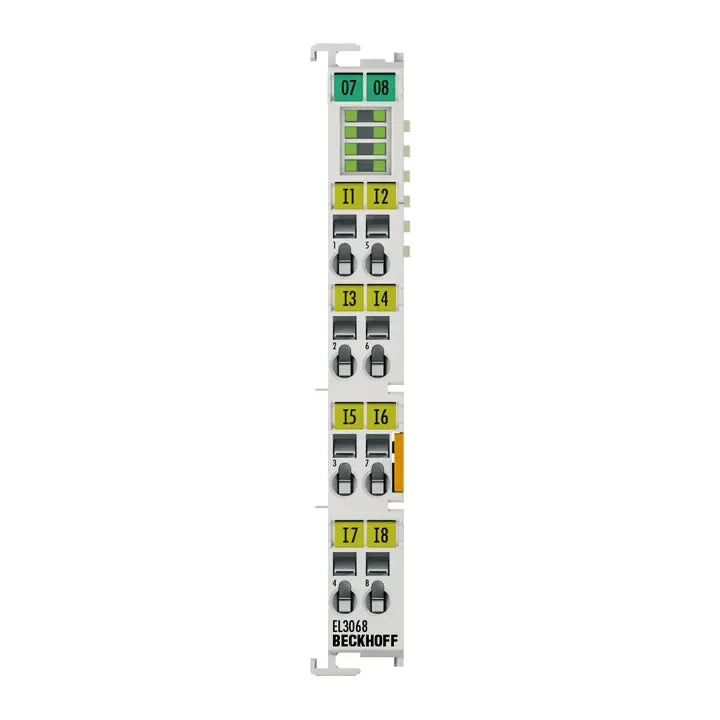

EL3068 | EtherCAT Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended

The EL3068 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitized with a resolution of 12 bits and is transmitted...

Technical Specifications

EL3068 Number of inputs 8 (single-ended) Power supply via the E-bus Signal voltage 0…10 V Distributed clocks – Internal resistance > 130 kΩ Input filter cut-off frequency 1 kHz Dielectric strength max. 30 V Conversion time 1.25 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 32 byte Special features activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring level for all ESxxxx terminals Protect. ra

Availability: regular delivery
