EL3048 Beckhoff

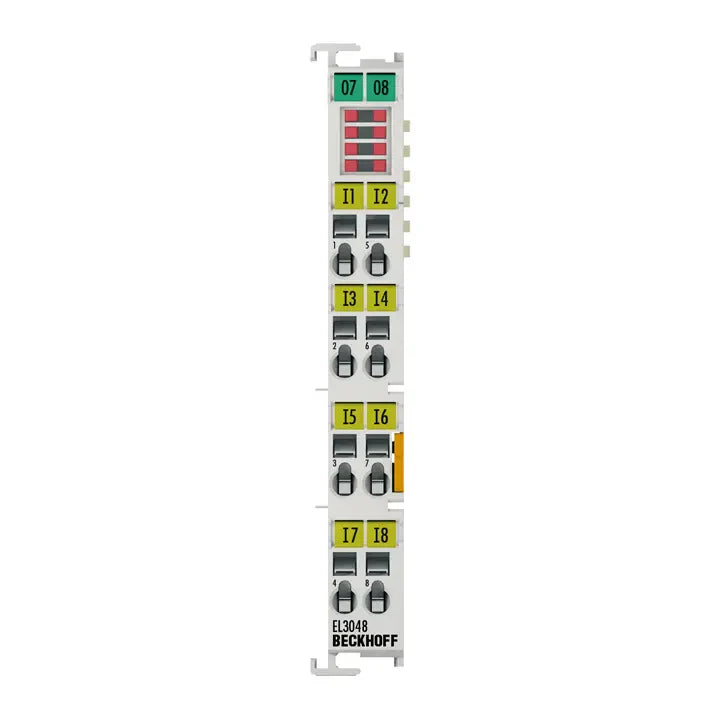

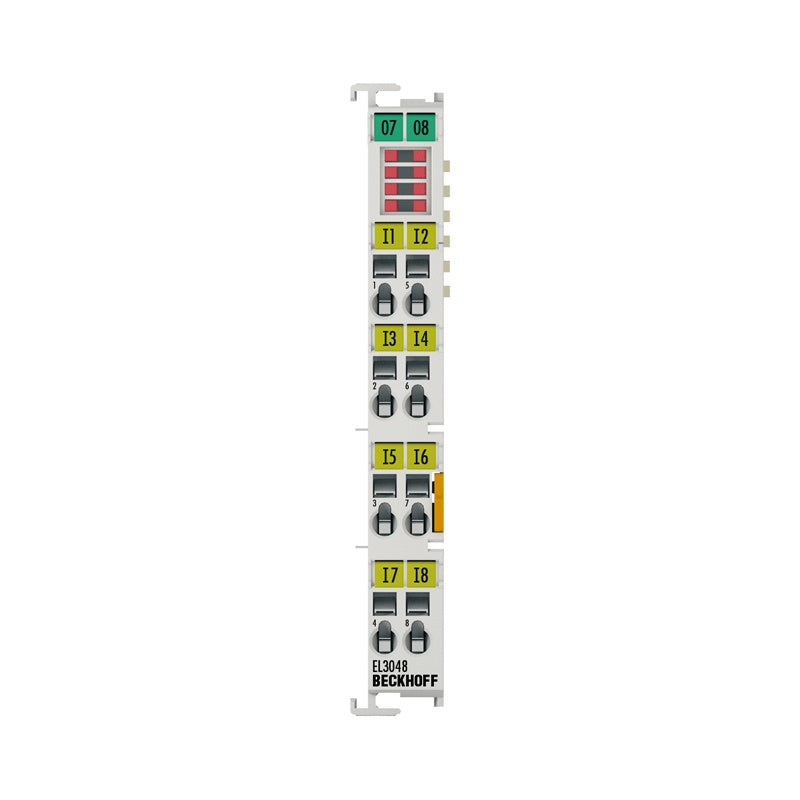

EL3048 | EtherCAT Terminal, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended

The EL3048 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitized to a resolution of 12 bits and is transmitted...

Technical Specifications

EL3048 Number of inputs 8 (single-ended) Power supply via the E-bus Signal current 0…20 mA Distributed clocks – Internal resistance typ. 85 Ω Input filter cut-off frequency 1 kHz Dielectric strength max. 30 V Conversion time 1.25 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 32 byte Configuration no address or configuration setting required Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission

Availability: regular delivery
