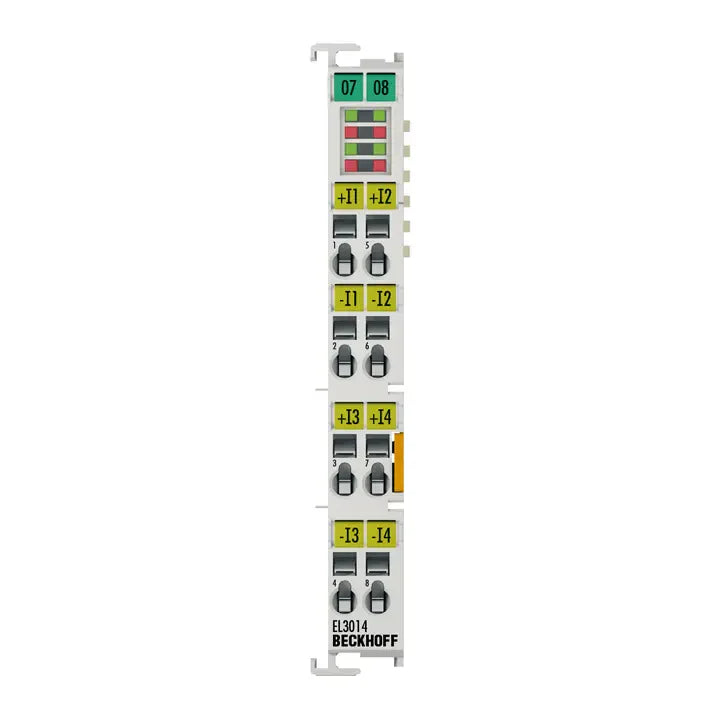

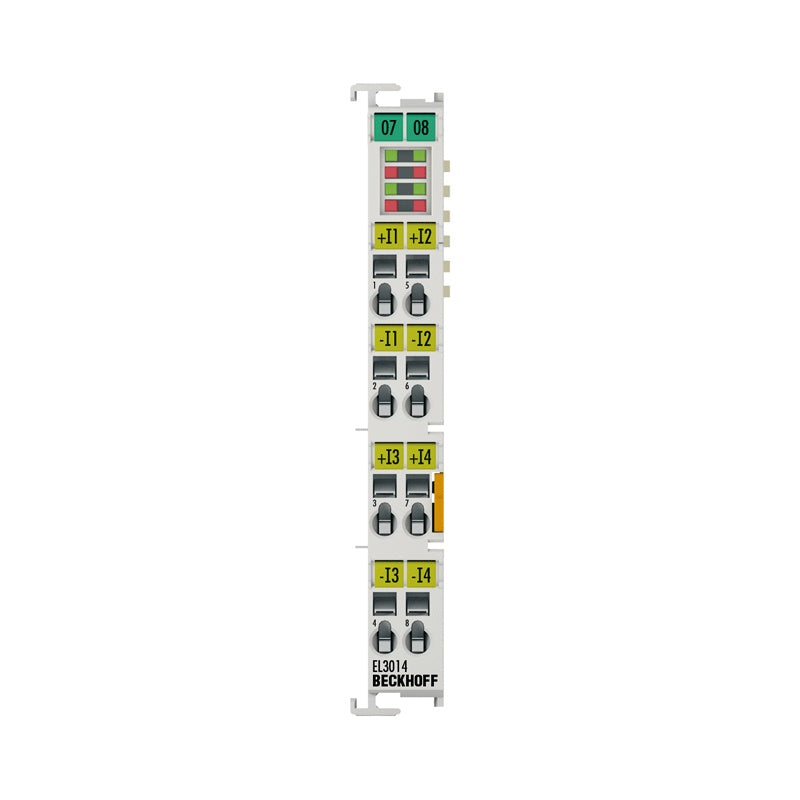

EL3014 Beckhoff

EL3014 | EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, differential

The EL3014 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitized to a resolution of 12 bits and is transmitted...

Technical Specifications

EL3014 Number of inputs 4 (differential) Power supply via the E-bus Signal current 0…20 mA Distributed clocks – Internal resistance typ. 85 Ω + diode voltage Input filter cut-off frequency 1 kHz Common mode voltage U CM max. 10 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Surge voltage resistance 35 V DC Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 16 byte Configuration no address or configuration setting Special features activatable FIR/IIR filters, limit value monitoring Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity

Availability: regular delivery
