EL3002 Beckhoff

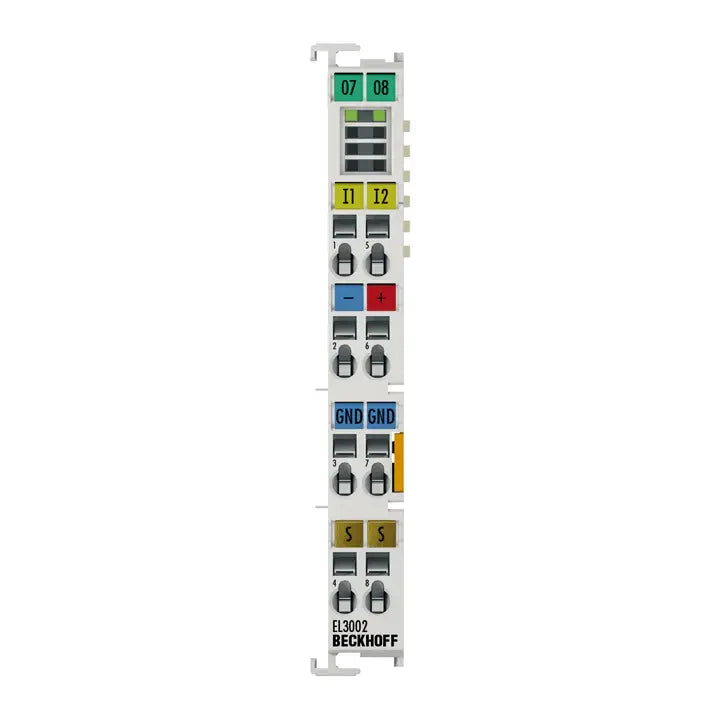

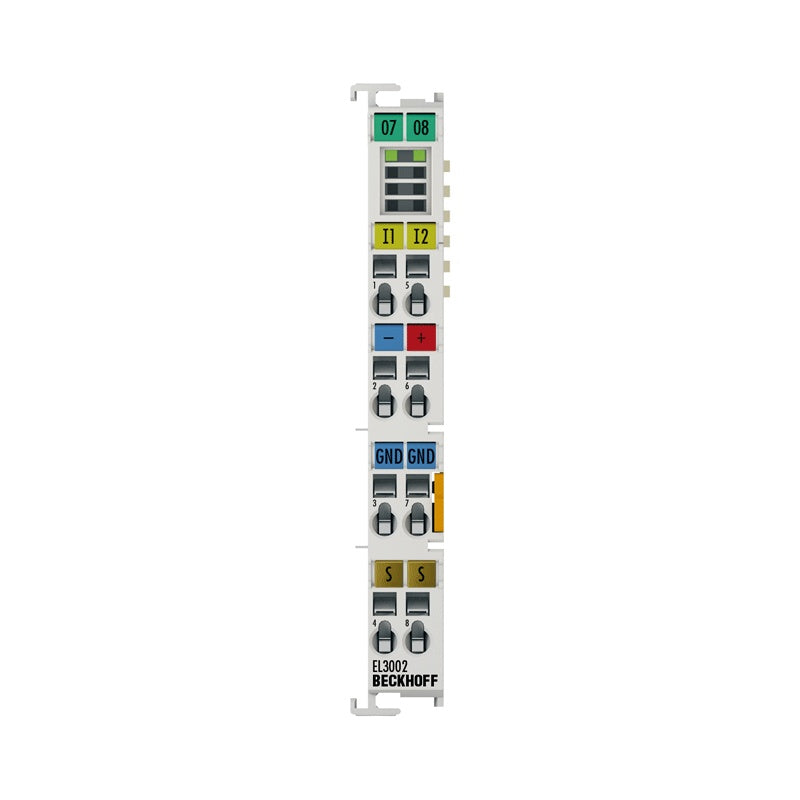

EL3002 | EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, single-ended

The EL3002 analog input terminal processes signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 12 bits, and is transmitted...

Technical Specifications

EL3002 Number of inputs 2 (single-ended) Power supply via the E-bus Signal voltage -10…+10 V Distributed clocks – Internal resistance > 130 kΩ Input filter cut-off frequency 1 kHz Dielectric strength max. 30 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/field potential) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Configuration no address or configuration setting required Special features standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring, overload display in the process data Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibrat

Availability: regular delivery
