EL2819 Beckhoff

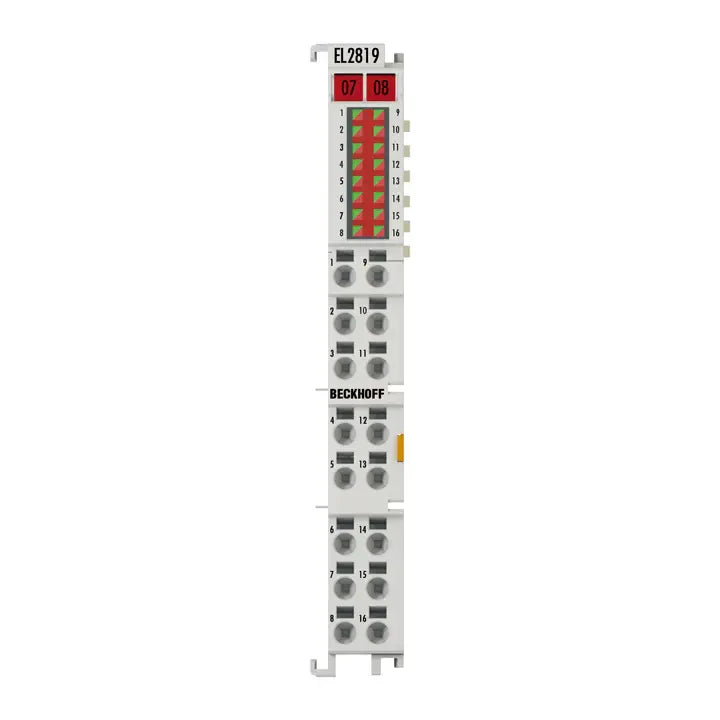

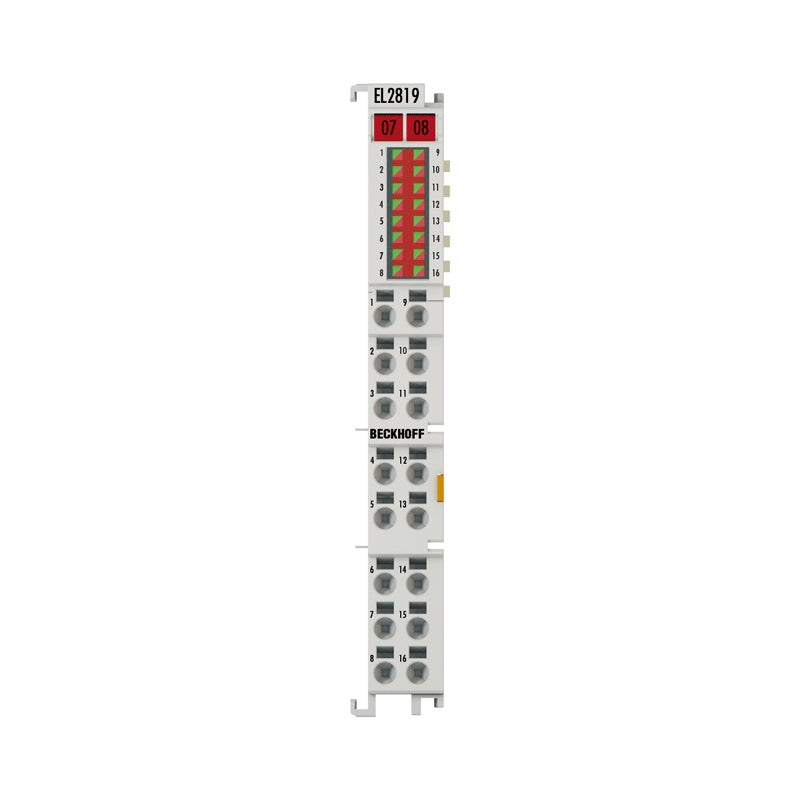

EL2819 | EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, with extended diagnostics

The EL2819 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with...

Technical Specifications

EL2819 Connection technology 1-wire Number of outputs 16 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Distributed clocks – Max. output current 0.5 A (short-circuit proof) per channel Output stage push (high-side switch) Short-circuit current typ. Reverse polarity protection yes Switching-off energy Current consumption E-bus typ. 90 mA Current consumption power contacts typ. 50 mA + load Bit width in the process image 16 bit output and diagnostics Electrical isolation 500 V (E-bus/field potential) Special features diagnostics via process data and LED: overtemperature, PowerFail, short circuit (per channel) Weight approx. 70 g Operating temperature -25…+55°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. ra

Availability: regular delivery
