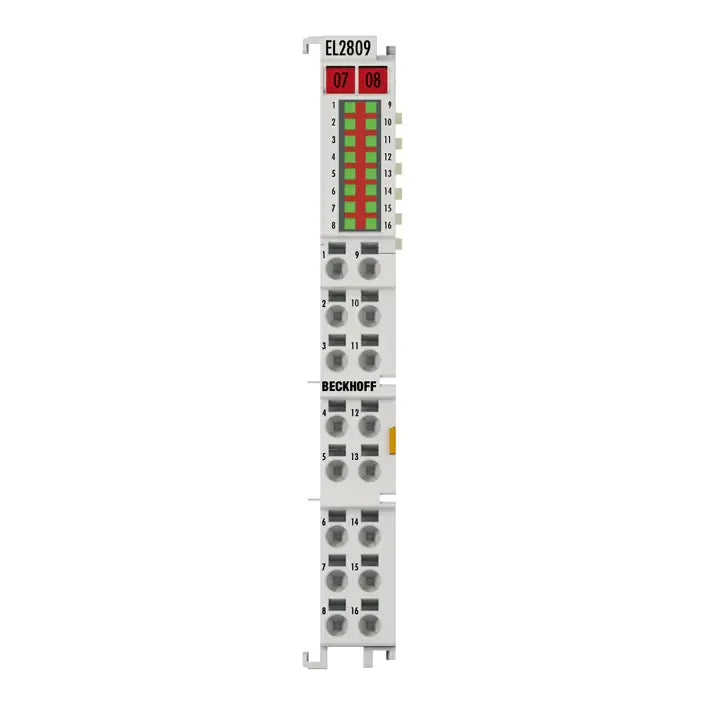

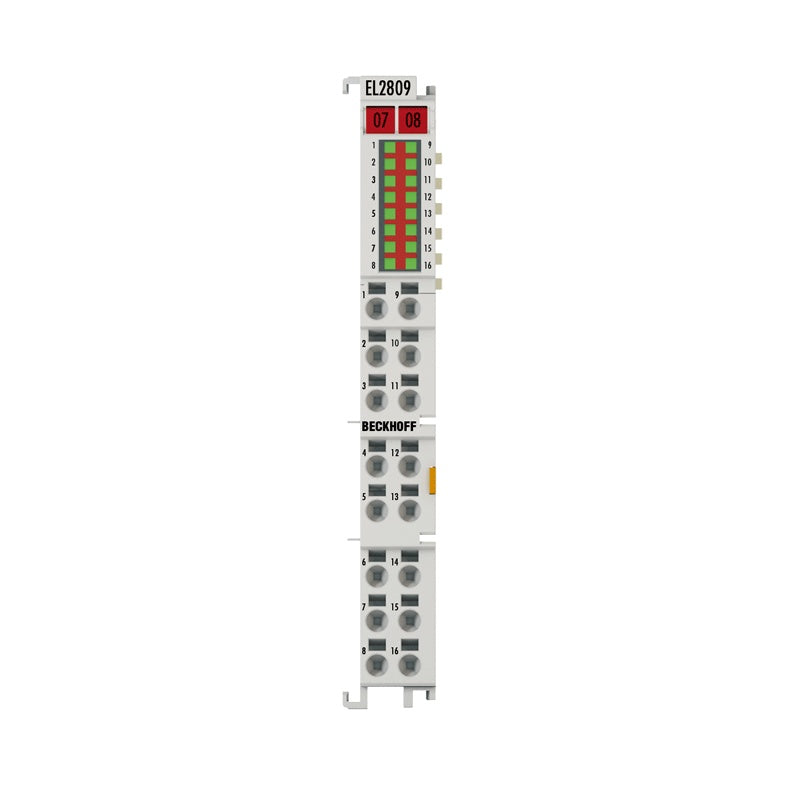

EL2809 | EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A

The EL2809 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with...

Technical Specifications

EL2809 Connection technology 1-wire Number of outputs 16 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Distributed clocks – Max. output current 0.5 A (short-circuit proof) per channel Short-circuit current typ. Reverse polarity protection yes Switching-off energy Switching times typ. T ON : 60 µs, typ. T OFF : 300 µs Current consumption E-bus typ. 140 mA Current consumption power contacts typ. 35 mA + load Bit width in the process image 16 outputs Configuration no address or configuration setting Electrical isolation 500 V (E-bus/field potential) Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, C
