EL2798 Beckhoff

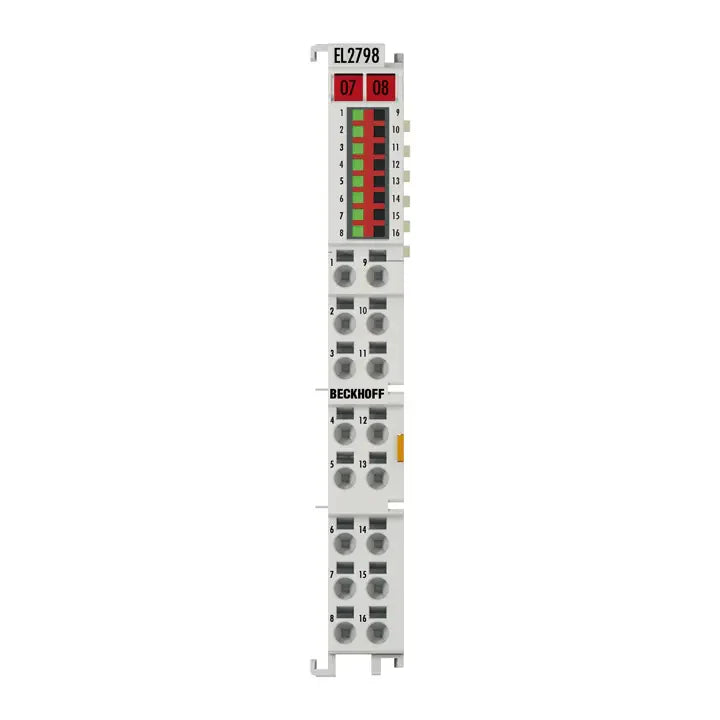

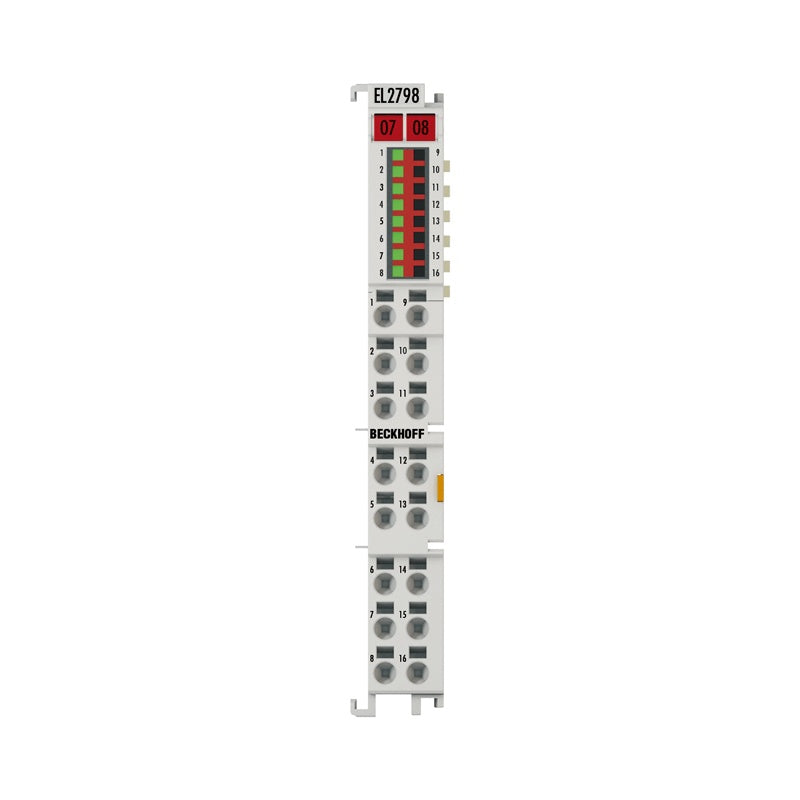

EL2798 | EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free

The digital EL2798 EtherCAT Terminal provides eight switches that can be used like a relay contact for AC/DC voltages. The electronic switch is realized...

Technical Specifications

EL2798 Connection technology 2-wire Number of outputs 8 x make contacts Nominal voltage 0…30 V AC/DC (ohmic load only: 0…48 V DC) Distributed clocks – Max. output current 2 A per channel, ∑ 10 A Short-circuit current not short-circuit proof, see peak current Reverse polarity protection – Switching times typ. T ON : 1.8 ms, T OFF : typ. 30 ms Breakdown voltage 80 V Peak current 5 A (100 ms), Isolation voltage (channel/channel) Current consumption E-bus typ. 140 mA Switching on speed typ. 1.8 ms, max. 5 ms Switching off speed typ. 30 ms, max. 50 ms On-resistance typ. 0.03 Ω Electrical isolation 500 V (E-bus/field potential) Special features substitute for relay contacts, potential-free Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-

Availability: regular delivery
