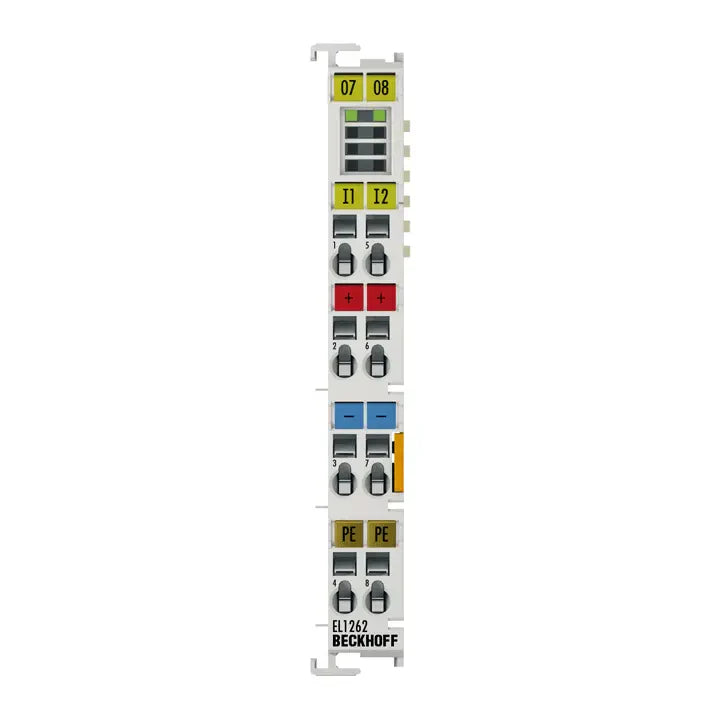

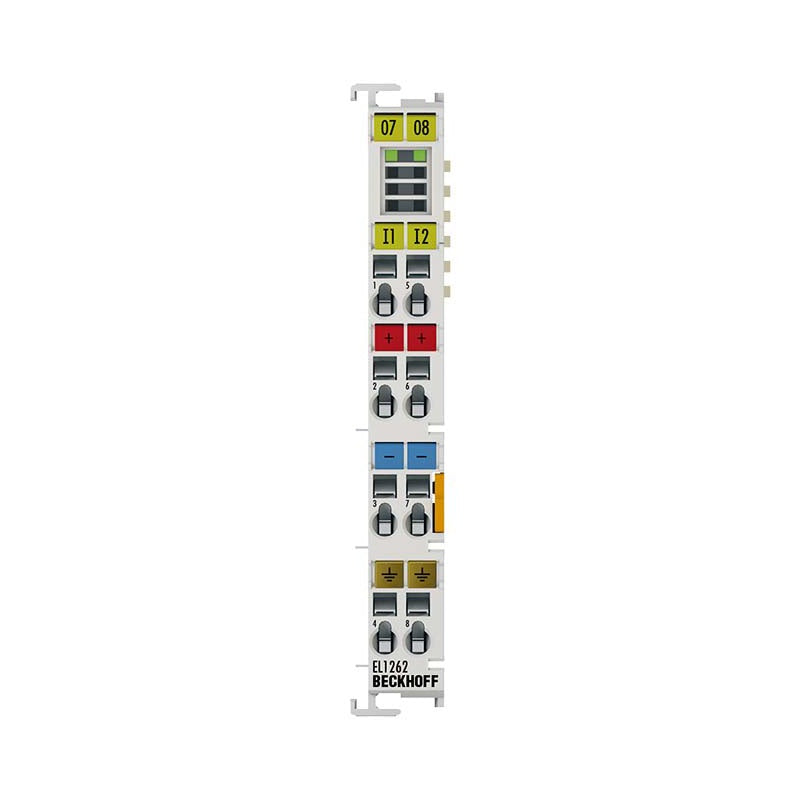

EL1262 Beckhoff

EL1262 | EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs, oversampling

The EL1262 digital input terminal acquires the fast binary 24 V control signals from the process level and transmits them, in an electrically isolated ...

Technical Specifications

EL1262 Connection technology 4-wire Specification similar to EN 61131-2, type 3, “0”: -3…5 V DC, “1”: 11…30 V DC, typ. 3 mA input current Number of inputs 2 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input current typ. 3 mA Input filter typ. Oversampling/multi-timestamp factor n = integer multiple of the cycle time, 1…1000, see documentation Timestamp accuracy 10 ns (+ input delay) between the channels Sampling rate max. 1 Msample/s Distributed clocks yes Distributed clock accuracy Current consumption power contacts typ. 20 mA + load Current consumption E-bus typ. 70 mA Electrical isolation 500 V (E-bus/field potential) Bit width in the process image n x 2 inputs + 64 bit CycleCounter/latch Special features oversampling Weight approx. 55 g Operating temperature 0…55°C Storage temperature -25…+85°C Re

Availability: regular delivery
