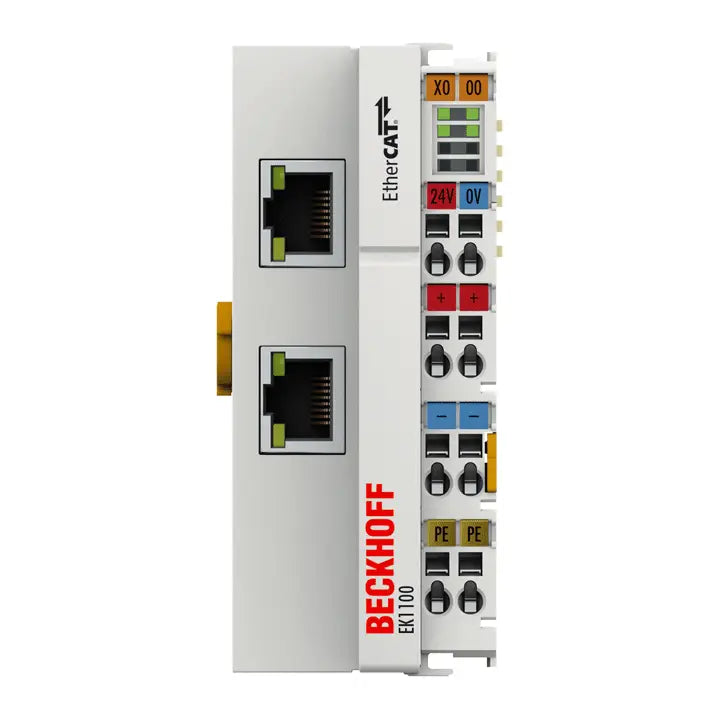

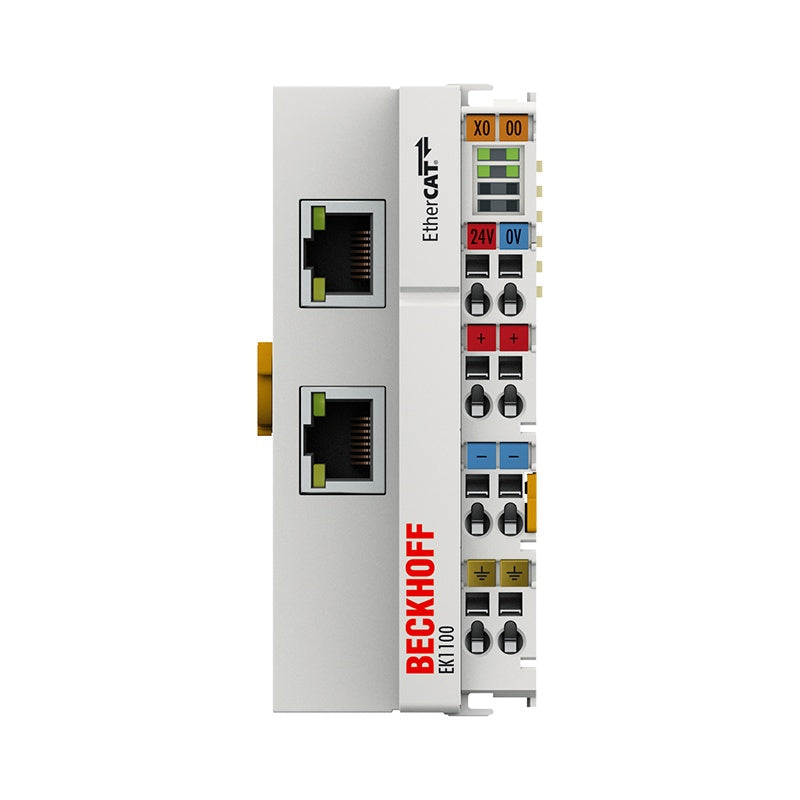

EK1100 | EtherCAT Coupler

The EK1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. The coupler converts the passing telegrams...

Technical Specifications

EK1100 Task within EtherCAT system coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks Transmission medium Ethernet/EtherCAT cable (min. Cat.5), shielded Distance between stations max. 100 m (100BASE-TX) Number of EtherCAT Terminals up to 65,534 Protocol EtherCAT Propagation delay approx. 1 µs Transmission rate 100 Mbit/s Bus interface 2 x RJ45 Power supply 24 V DC (-15%/+20%) Current consumption from U S 70 mA + (∑ E-bus current/4) Current consumption from U P load Current supply E-bus 2000 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/Ethernet) Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable
