CX8010 Beckhoff

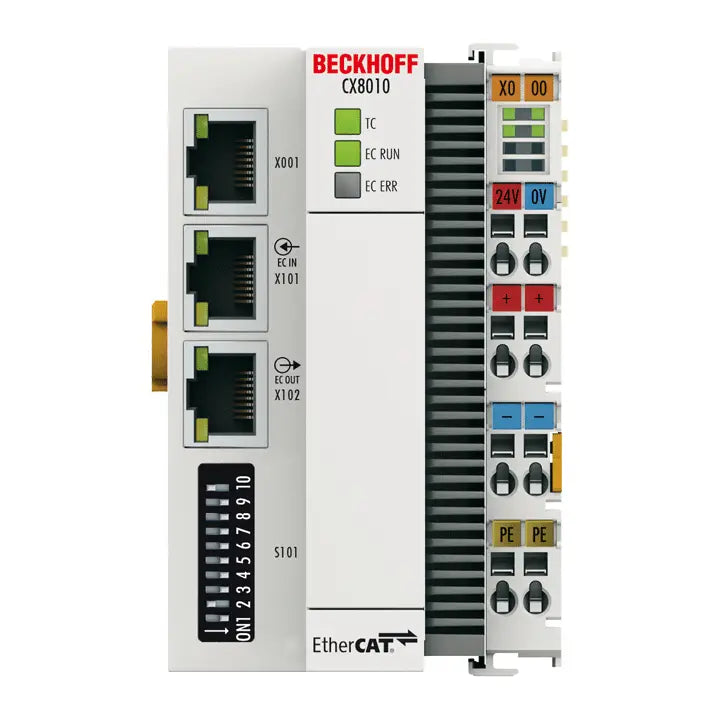

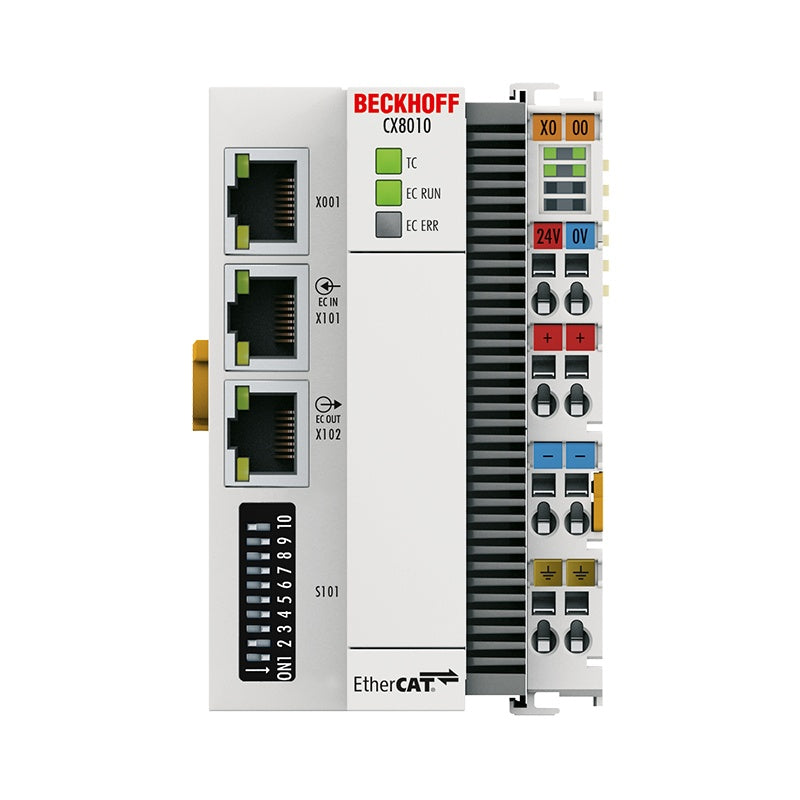

CX8010 | Embedded PC with Arm9™ and EtherCAT slave

The CX8010 is a control system with EtherCAT slave interface, to which optional K-bus or E-bus terminals can be attached. The CX8010 automatically recognizes...

Technical Specifications

CX8010 Processor Arm9™, 400 MHz Number of cores 1 Flash memory slot for microSD card, 512 MB included (optionally expandable) Main memory 64 MB DDR2 RAM (not expandable) 1-second UPS integrated (1 MB on microSD card) Programming languages IEC 61131-3 Web visualization yes Online change yes Up/down load code yes/yes Interfaces 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface Cooling passive Bus interface EtherCAT IN and OUT (2 x RJ45) Transmission rate 100 Mbit/s Diagnostics LED 1 x TC status, 2 x bus status Clock internal battery-backed clock for time and date (battery behind the front flap, exchangeable) Operating system Windows Embedded CE 6 Control software TwinCAT 2 PLC I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Current supply E-bus/K-bus 2 A Web-based management yes Max. power consumption

Availability: regular delivery (not recommended for new projects) | recommended alternative: CX8210

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
