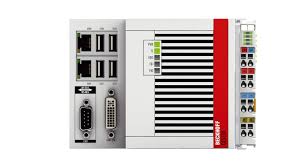

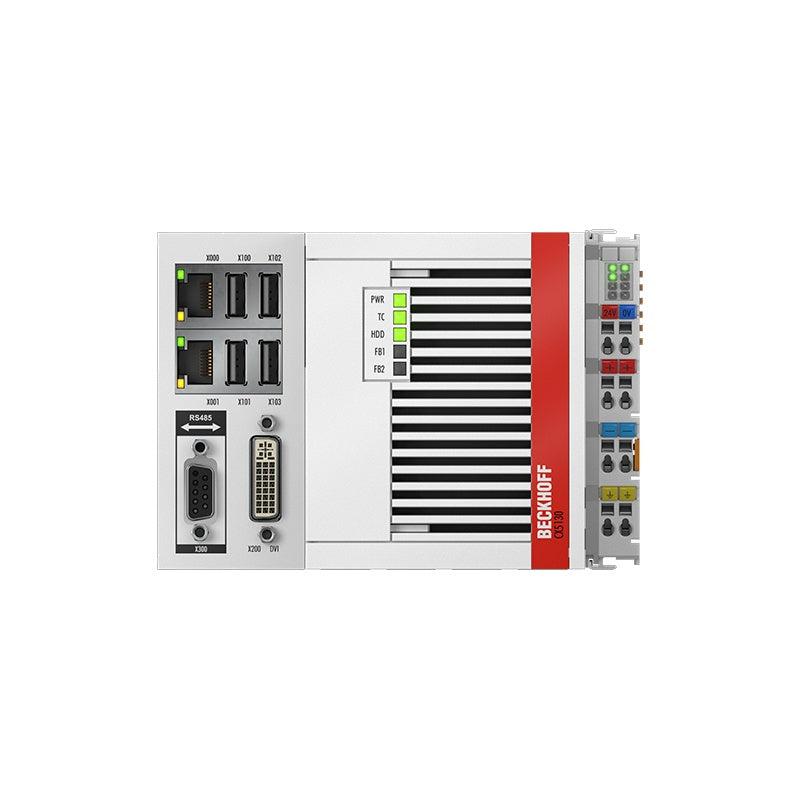

CX5130-0120 Beckhoff

CX5130 | Embedded PC with Intel Atom® E3827

The CX5130 has an Intel Atom® dual-core processor with a clock rate of 1.75 GHz. This makes genuine multi-core technology possible in the Embedded PC segment...

Technical Specifications

CX5130 Processor Intel Atom ® E3827, 1.75 GHz Number of cores 2 Flash memory slot for CFast card and microSD card, cards not included Main memory 4 GB DDR3 RAM (not expandable) 1-second UPS integrated (1 MB on CFast card) Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface Cooling passive Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock internal battery-backed clock for time and date (battery exchangeable) Operating system Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD Control software TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Current supply E-bus/K-bus 2 A Max. power consumption 14 W Max

Availability: regular delivery (not recommended for new projects) | recommended alternative: CX5330

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
