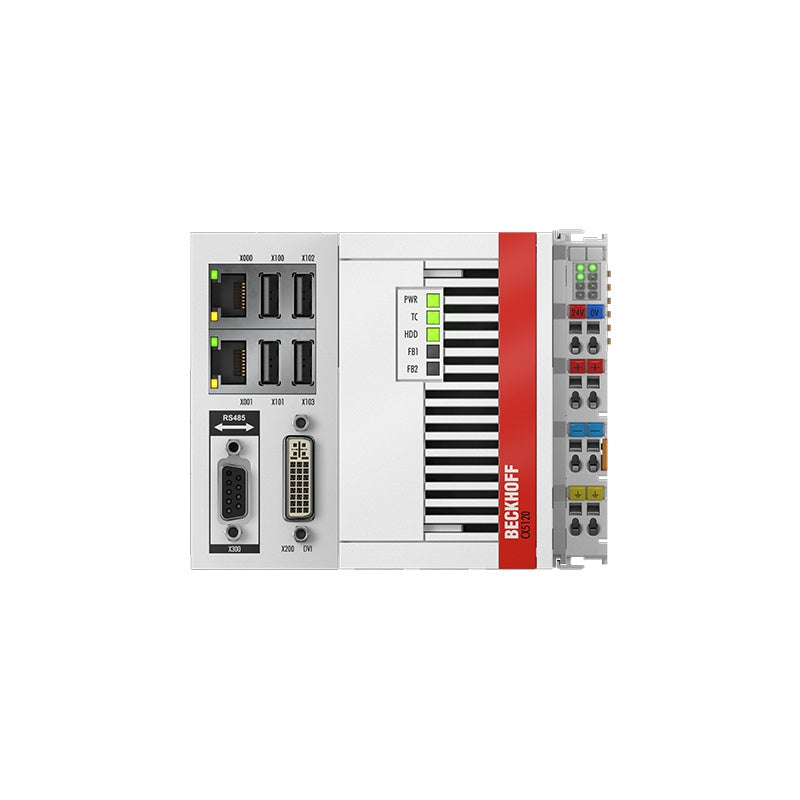

CX5120-0125 Beckhoff

CX5120 | Embedded PC with Intel Atom® E3815

The CX5120 has an Intel Atom® single-core processor with a clock rate of 1.46 GHz. The hardware interfaces in this series are oriented and implemented ...

Technical Specifications

CX5120 Processor Intel Atom ® E3815, 1.46 GHz Number of cores 1 Flash memory slot for CFast card and microSD card, cards not included Main memory 2 GB DDR3 RAM (not expandable) 1-second UPS integrated (1 MB on CFast card) Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface Cooling passive Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock internal battery-backed clock for time and date (battery exchangeable) Operating system Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD Control software TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Current supply E-bus/K-bus 2 A Max. power consumption 11 W Max

Availability: regular delivery (not recommended for new projects) | recommended alternative: CX5330
