CX5020-0120 Beckhoff

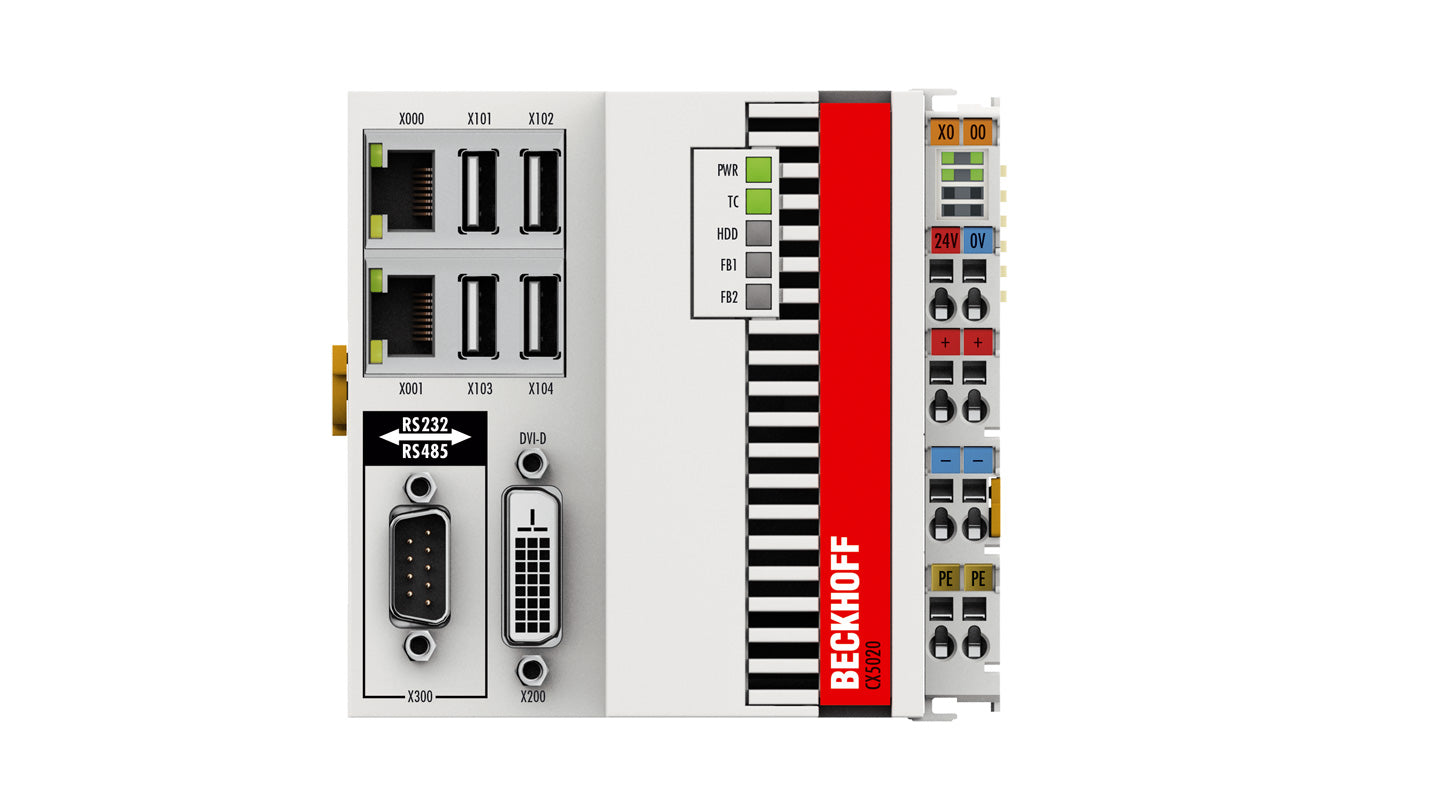

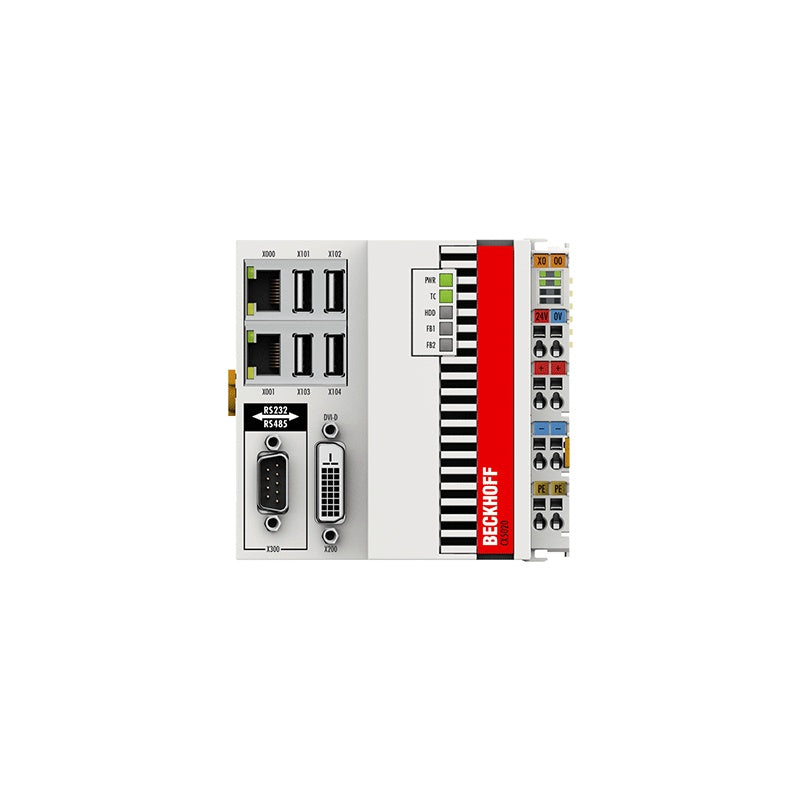

CX5020 | Embedded PC with Intel Atom® (service phase)

The CX5010 and CX5020 are Embedded PCs from the CX5000 series based on Intel Atom® processors and differ only by the CPU version. The CX5010 has a 1.1 ...

Technical Specifications

CX5020 Processor Intel Atom ® Z530, 1.6 GHz clock frequency Number of cores 1 Flash memory slot for CompactFlash ® card, 128 MB included (expandable) Main memory 512 MB RAM (expandable ex factory to 1 GB) 1-second UPS integrated (1 MB on CompactFlash ® card) Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface Cooling passive Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock internal battery-backed clock for time and date (battery exchangeable) Operating system Windows Embedded CE 6, Windows Embedded Standard 2009 Control software TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) Current supply E-bus/K-bus 2 A Max. power consumption 13 W Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A) Weight approx. 575 g Dimensions (W x H x D) 106 mm x 100

Availability: service phase | recommended alternative: CX5120

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
