CX2030-0125 Beckhoff

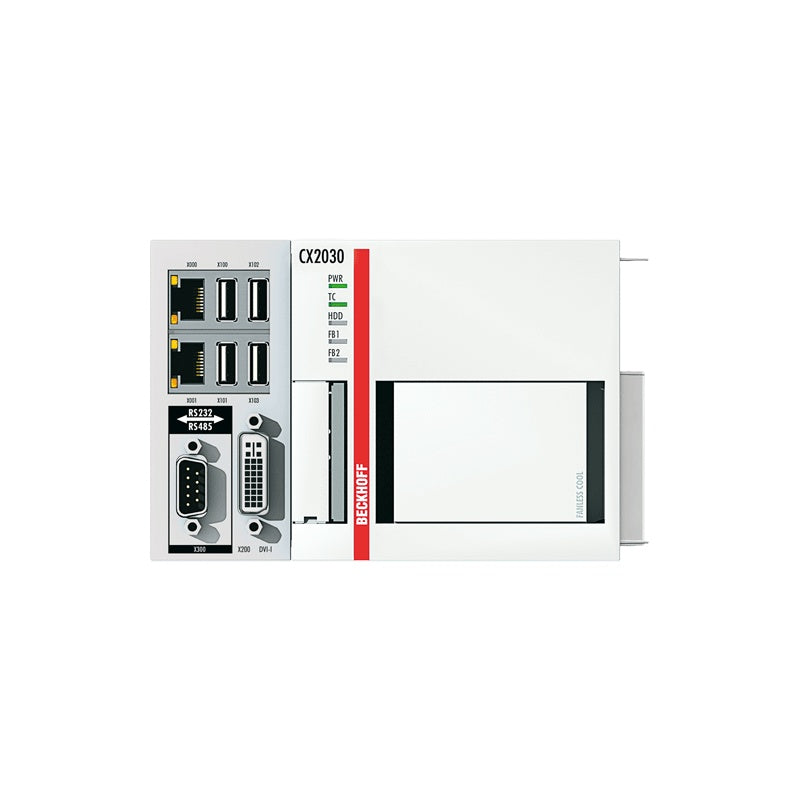

CX2030 | Basic CPU module (service phase)

The CX2030 has a 1.5 GHz Intel® Core™ i7 dual-core CPU, it is fanless and has no rotating components. In addition to the CPU and chipset the CX2030 also...

Technical Specifications

CX2030 Processor Intel ® Core™ i7 2610UE 1.5 GHz Number of cores 2 Flash memory 20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable Main memory 2 GB DDR3 RAM (expandable ex factory to 4 GB) Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface Cooling passive, optionally with active cooling ex factory Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock internal battery-backed clock for time and date (battery exchangeable) Operating system Windows Embedded Compact 7 (TwinCAT 3 supports only one CPU core), Windows Embedded Standard 7, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD Control software TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection via power supply module (E-bus or K-bus, automatic recognition) Power supply 24 V DC (-15%/+20%) NOVRAM 128 kB Max. power consumption 27

Availability: service phase | recommended alternative: CX2033
