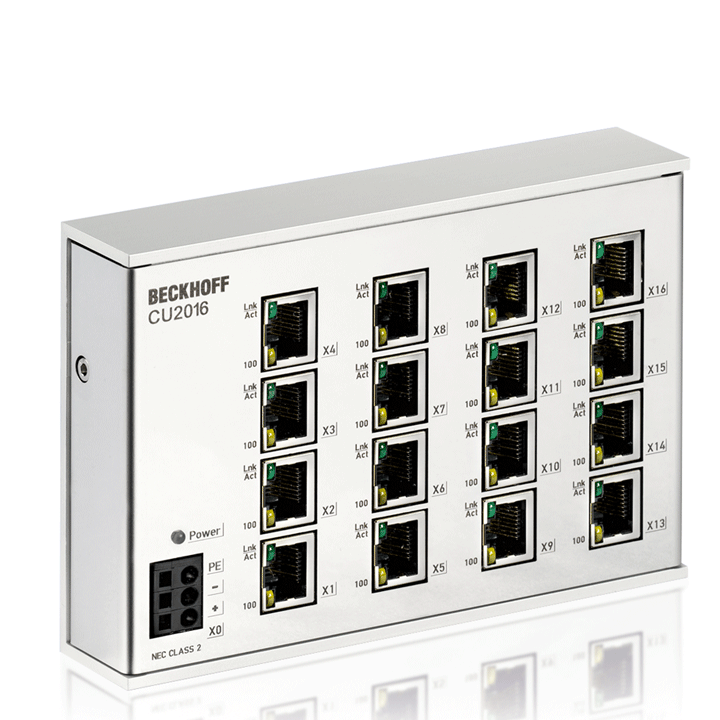

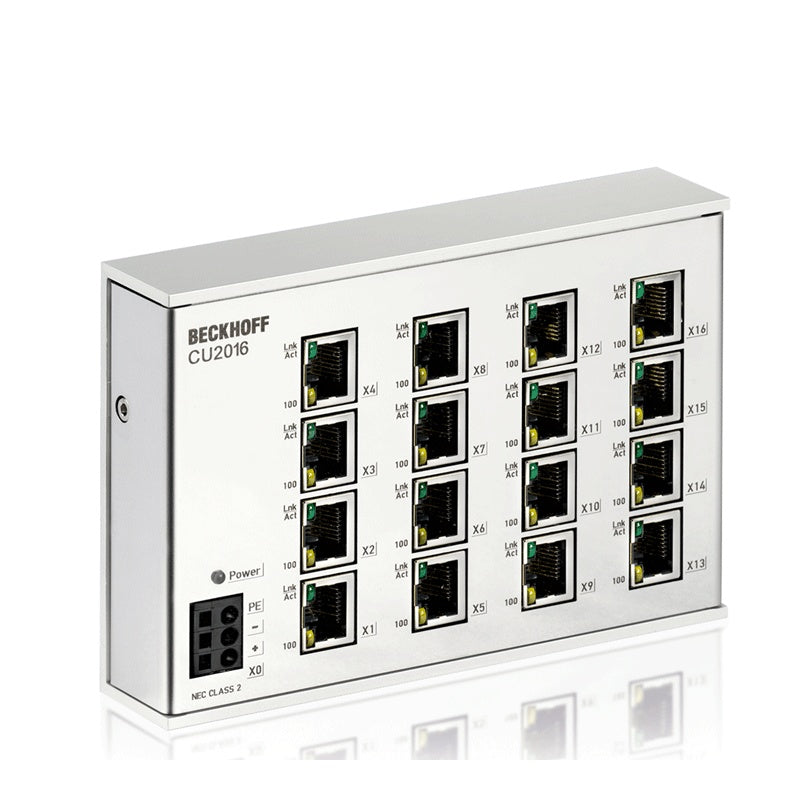

CU2016 Beckhoff

CU2016 | Infrastructure, 16-port switch, Ethernet, 100 Mbit/s, 24 V DC, RJ45

The Beckhoff Ethernet switch CU2016 offers sixteen RJ45 Ethernet ports for connecting Ethernet devices in a network. Switches relay incoming Ethernet frames...

Technical Specifications

CU2016 Bus system all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged Ethernet interface 10BASE-T/100BASE-TX Ethernet, RJ45 Cable length up to 100 m twisted pair Data transfer rates 10/100 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex, automatic settings Hardware diagnostics 2 LEDs per channel, activity, link, 10/100 Mbit Power supply 24 (18…30) V DC, 3-pin connection (+, -, PE) Current consumption typ. 150 mA Weight 400 g Operating temperature 0…55°C Storage temperature -25…+85°C Protect. rating/installation pos. IP20/variable Approvals/markings CE, UL Technical data Housing data To top Housing data CU2xxx-146 Dimensions (W x H x D) 146 mm x 100 mm x 30 mm Material V2a stainless steel/aluminum Installation on 35 mm DIN rail, conforming to EN 60715 with lock Loading content ... Show more Loading content ... Show more Loading content ... Show

Availability: regular delivery
